5 Inch HDMI Touch LCD for Raspberry Pi

SKU: RZ24332451 Brand: Raspberry Pi Foundation Category: Raspberry Pi & SBC

₹ 3,018.75

Out of Stock

Buy 5 Inch HDMI Touch LCD for Raspberry Pi online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 2,958.38
11 – 30	3%	₹ 2,928.19
31 – 50	4%	₹ 2,898.00
51 – 100	5%	₹ 2,867.81

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand Raspberry Pi Foundation

Category Raspberry Pi & SBC

Subcategory Raspberry Pi Boards

SKU RZ24332451

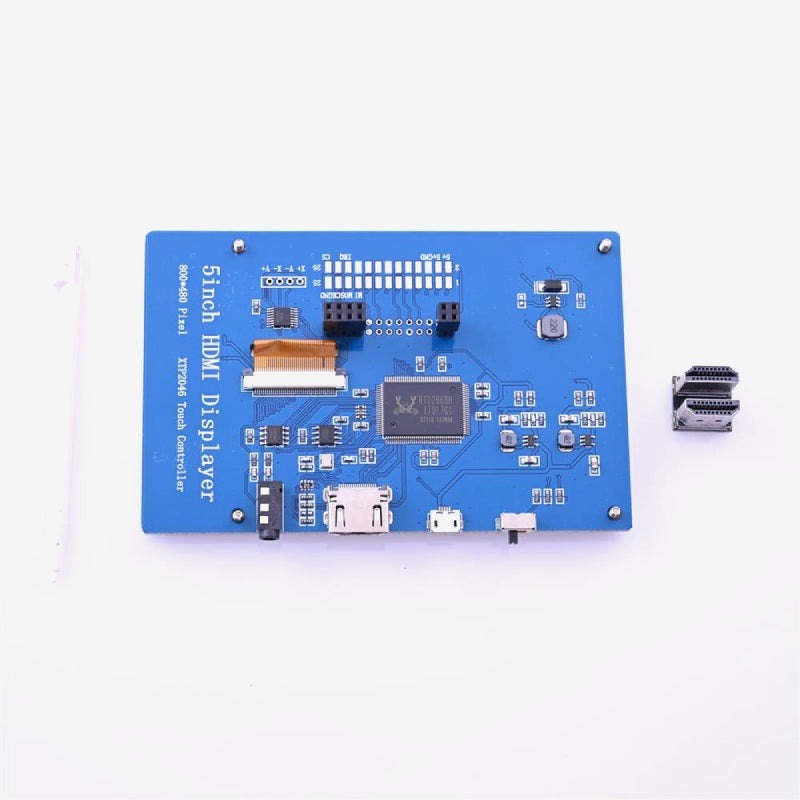

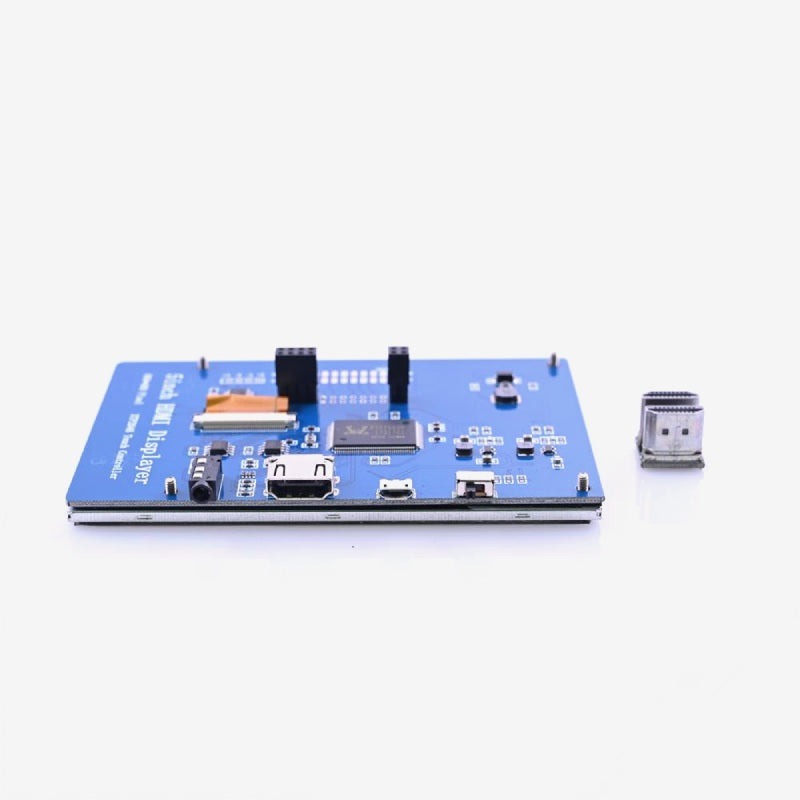

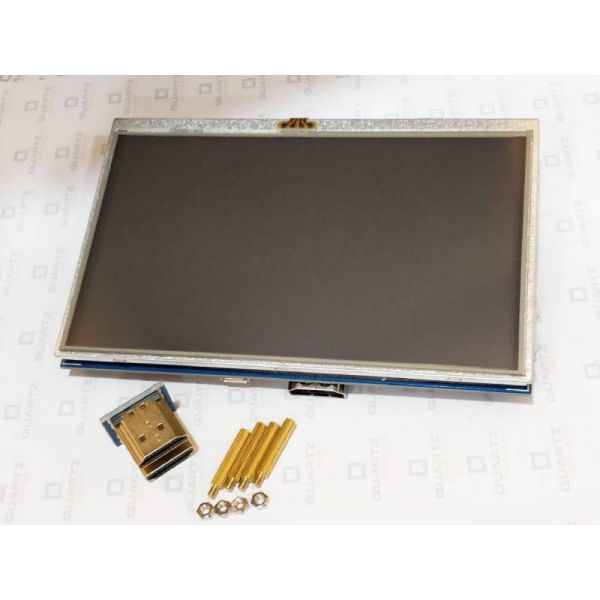

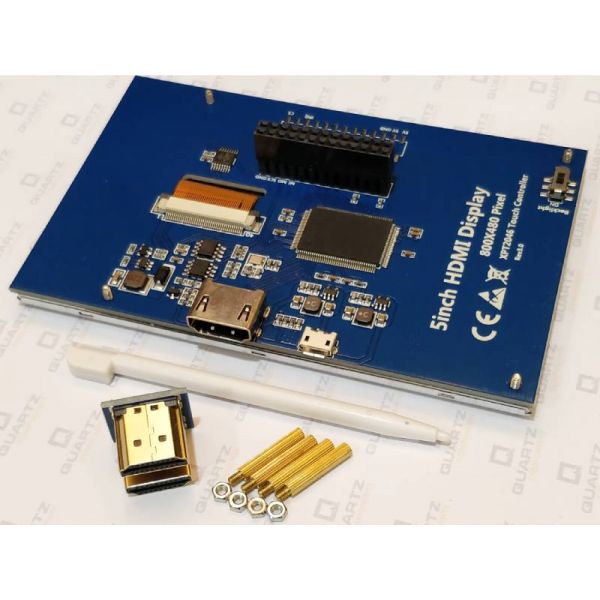

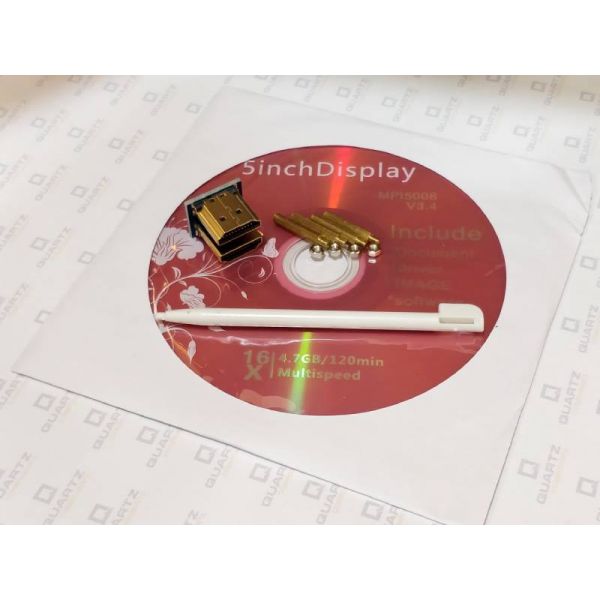

The 5 inch HDMI Monitor for Raspberry Pi display is commonly used with Pi as a display unit. It comes with driver CD, mounting screws and stylus making it easy to interface with pi and provide a professional look.

The 5 inch Raspberry Pi Screen has a resolution of 800x480 and works on 5V consuming about 235mA with the backlight on. The display signal is given through standard HDMI while the touchscreen works with SPI communication. Apart from Pi, the display can be used with any hardware like computers or tablets that support HDMI.

Pin Configuration

Pin No.	Name	Description
1, 17	3.3V	3.3V power input
2, 4	5V	5V power input
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24	NC	Not Connected
6, 9, 14, 20, 25	GND	Ground Pins
19	TP_SI	SPI data input of Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
23	TP_SCK	SPI clock of Touch Panel
26	TP_CS	Touch Panel chip selection, low active

Features and Specifications:

800×480 high resolution
Directly-pluggable into any revision of Raspberry Pi (only except the first generation Pi model B which requires an HDMI cable)
The driver provided (works with custom Raspbian directly)
HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
Backlight control to lower power consumption
High-quality immersion gold surface plating

Additional Resources:

Interfacing with Raspberry Pi
