6A 250V AC SPST ON-OFF Rocker Switch Red
Buy 6A 250V AC SPST ON-OFF Rocker Switch Red online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.

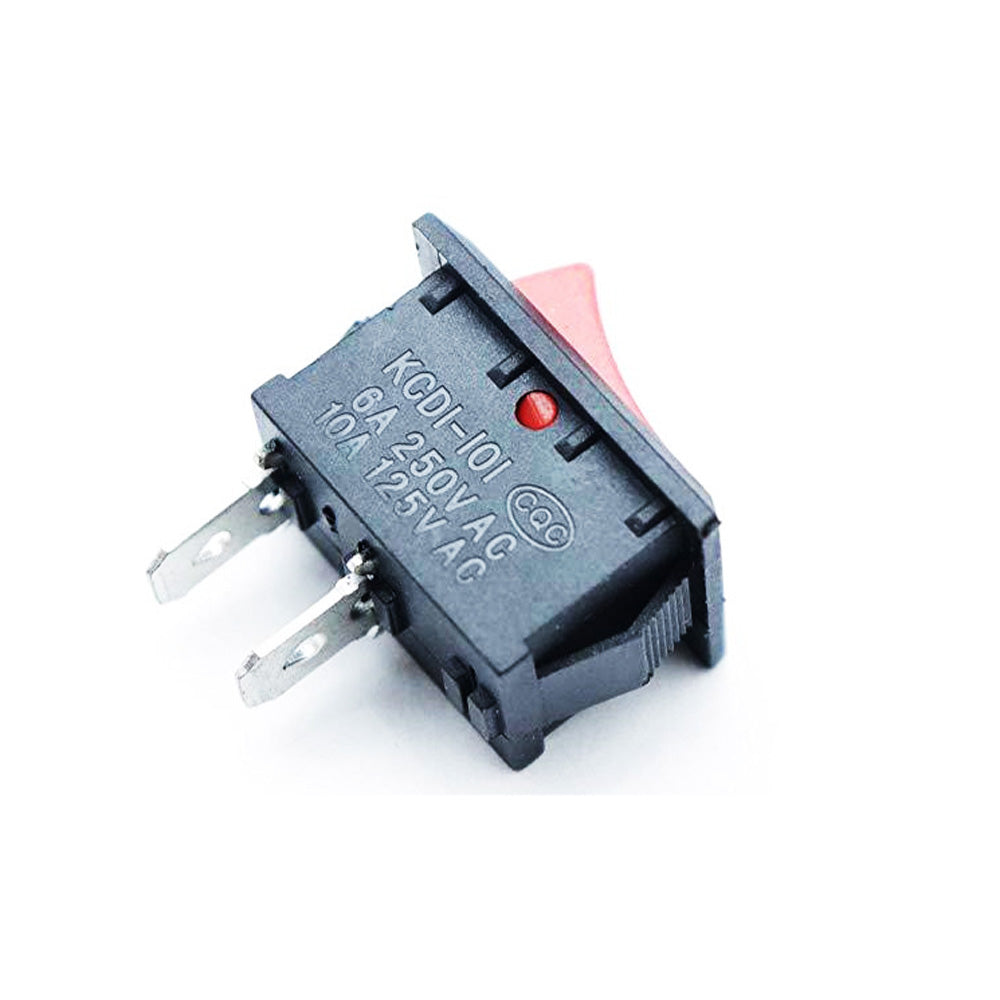

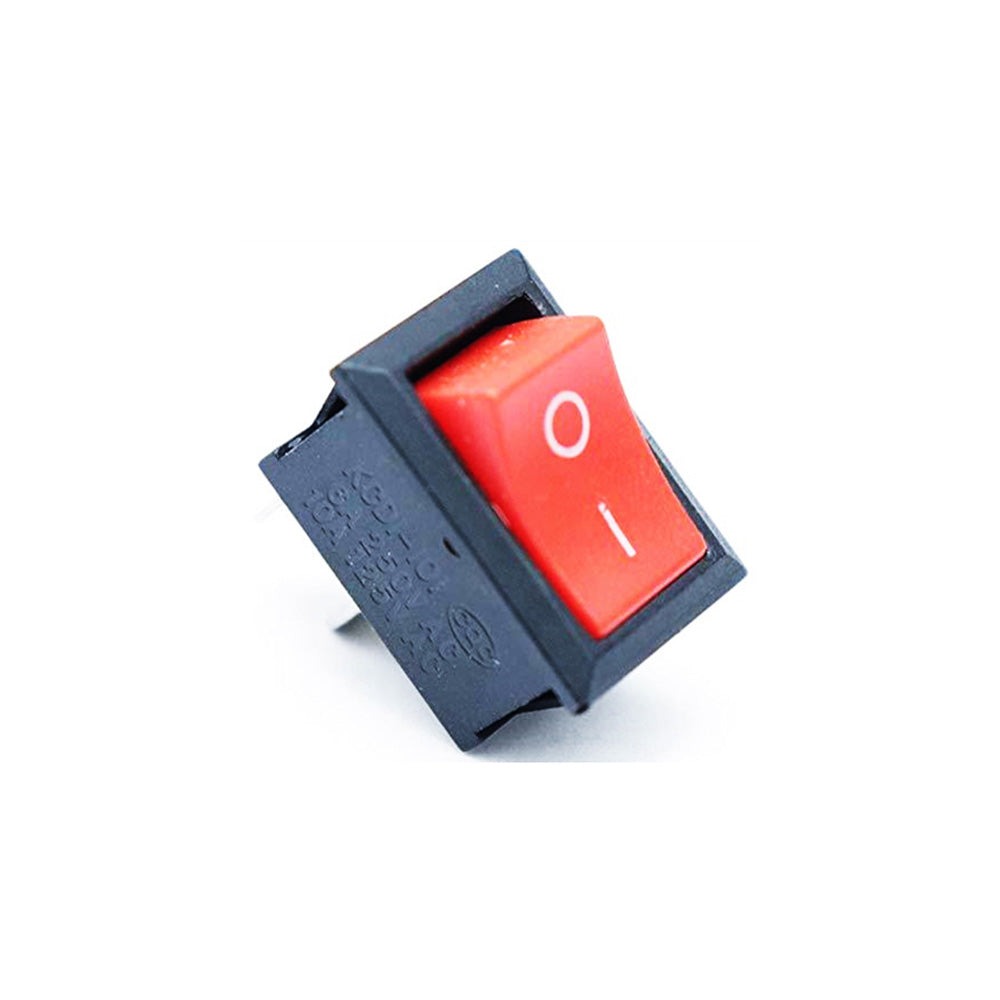

This Rocker switch works on SPST (Single Pole Single Throw) mode. This switch is rated for a load of 6A 250V and 10A 125V. The contact resistance of the switch is ≤ 20 MΩ and insulation resistance of the switch is ≥100MΩ. SPST Round Rocker switches have two positions which are ON and OFF. To make identification of the position of the button easy ON and OFF positions are clearly marked on the button as I and O respectively. Dimensions are L 20.5 mm, x W 14 mm x H 20 mm.
Specifications
| Voltage and Current Rating | Max 6A at 250VAC |
| Switching Mode | ON-OFF |
| Structure | SPST |
| Colour | Red and Black |
| Contact Resistance | ≤ 50 MΩ |
| Insulation Resistance | ≥100MΩ |
| Number of Pins | 2 |
| Dimension (LxWxH) | 20.5x14x20 (mm) (Including Pins Height) |
| Country of Origin | China |
