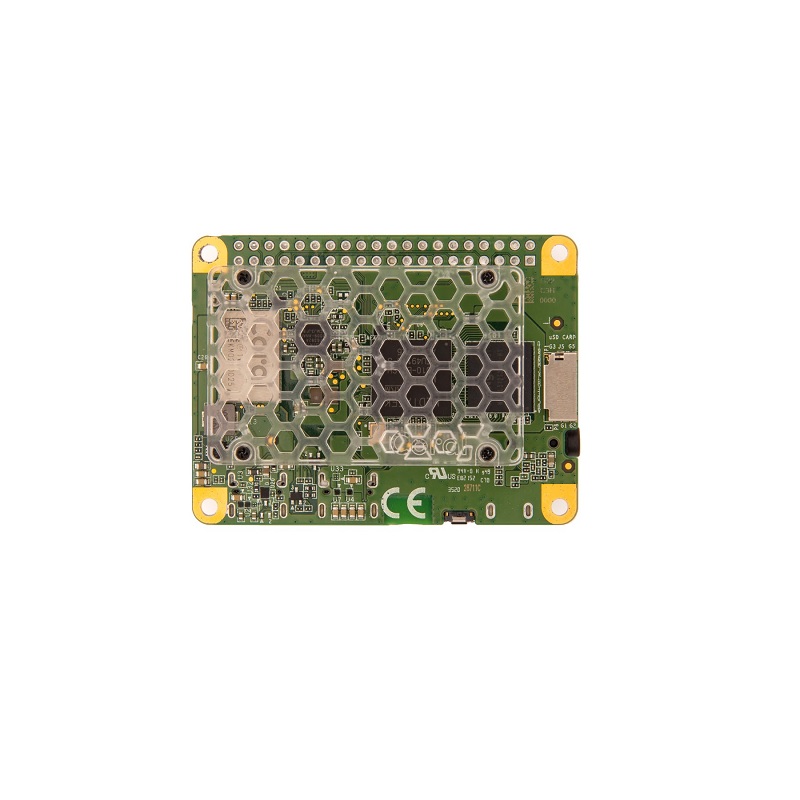

CORAL  G650-03324-01  Development Board Mini, MT8167s, SoC, MCU, ARM Cortex-A35 MCU

The Coral Dev Board Mini i s a single-board computer that enables you to quickly prototype and deploy an embedded system with on-device ML i nferencing. This board can also serve as an evaluation device for the C oral Accelerator Module, which allows you to i ntegrate the Edge TPU i nto your custom PCB hardware as a surface-mounted module. The Edge TPU i s a small ASIC designed by Google that accelerates TensorFlow Lite models i n a power efficient manner: each one i s capable of performing 4 trillion operations per second ( 4 TOPS), using 2 watts of power—that’s 2 TOPS per watt. For example, one Edge TPU can execute state-of-the-art mobile vision models such as MobileNet v2 at almost 400 frames per second. This on-device ML processing reduces l atency, i ncreases data privacy, and removes the need for a constant internet connection.

Note: For more technical details go through datasheet in the attachment section

Features:

1. MediaTek 8167s SoC
   ○ Quad-core ARM Cortex-A35
   ○ Imagination PowerVR GE8300 GPU
2.  Google Edge TPU ML accelerator
   ○ 4 TOPS peak performance ( int8)
   ○ 2 TOPS per watt
3.  ARM TrustZone Security
4.  Wi-Fi 5, Bluetooth 5.0
5.  8 GB eMMC, 2 GB LPDDR3
6.  USB 2.0 Type-C OTG
7.  HDMI 1.4a ( micro)
8.  MIPI DSI display
9.  MIPI CSI camera
10.  3.5 mm headphone j ack
11.  Digital PDM microphone
12.  2.54mm 2-pin mono speaker terminal
13.  40-pin GPIO expansion header
14.  Mendel Linux flashed i n factory

Package Includes:

1 x CORAL  G650-03324-01  Development Board Mini, MT8167s, SoC, MCU, ARM Cortex-A35 MCU
