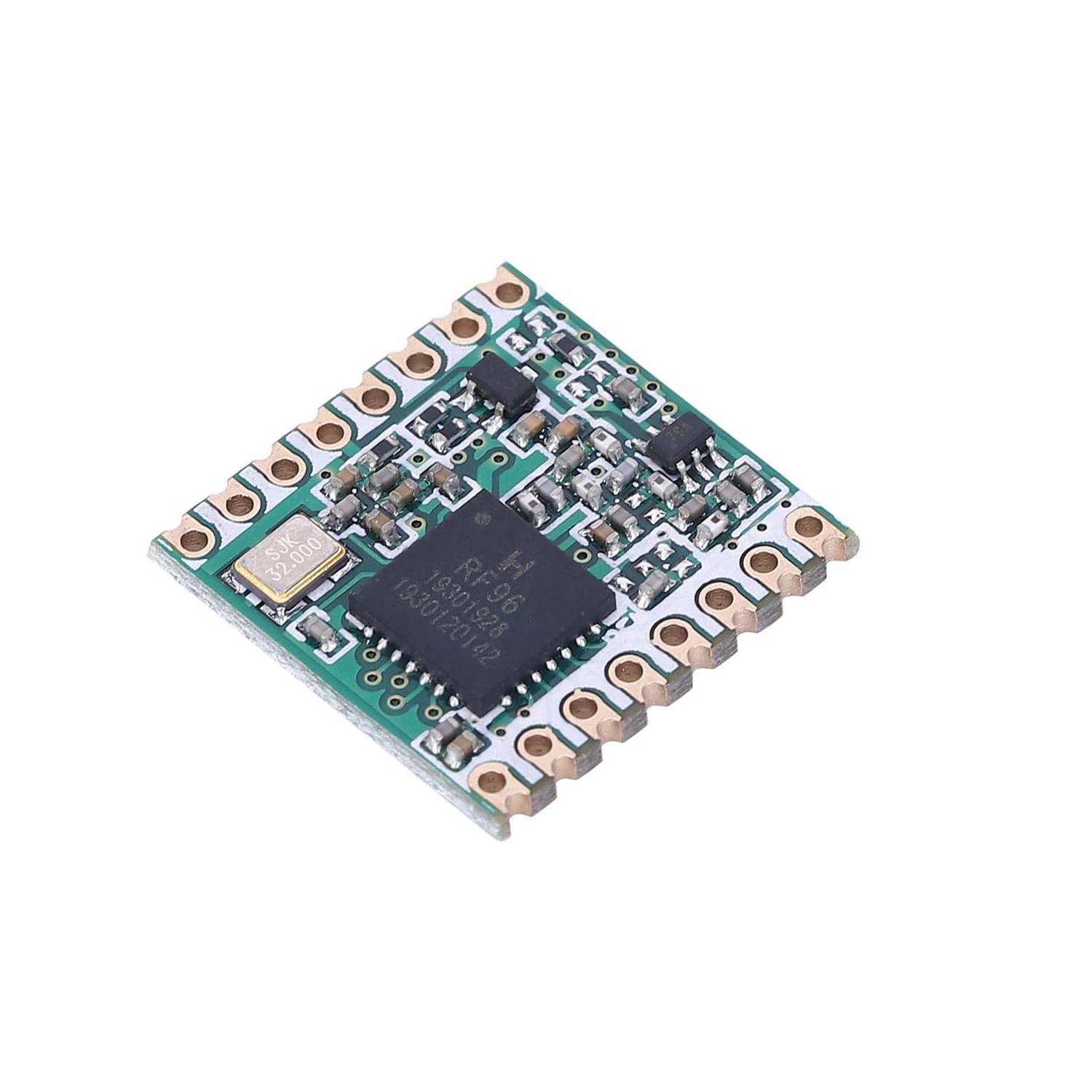

RFM95W Wireless Receiving Module，915mhz

The  RFM95W transceivers feature the  LoRaTM long-range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. Using Hope RF’s patented LoRaTM modulation technique RFM95W can achieve a sensitivity of over -148dBm using a low-cost crystal and bill of materials.

The high sensitivity combined with the integrated +20 dBm power amplifier yields an industry-leading link budget making it optimal for any application requiring range or robozarstness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity, and energy consumption.

Features:

1.  LoRaTM Modem.
2.  168 dB maximum link budget.
3.  +20 dBm – 100 mW constant RF output vs. V supply.
4.  +14 dBm high-efficiency PA.
5.  Programmable bit rate up to 300 kbps.
6.  High sensitivity: down to -148 dBm.
7.  Bullet-proof front end: IIP3 = -12.5 dBm.
8.  Excellent blocking immunity.
9.  Low RX current of 10.3 mA, 200 nA register retention.
10.  Fully integrated synthesizer with a resolution of 61 Hz.
11.  FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
12.  Built-in bit synchronizer for clock recovery

Package Includes:

1 x RFM95W Wireless Receiving Module，915mhz
