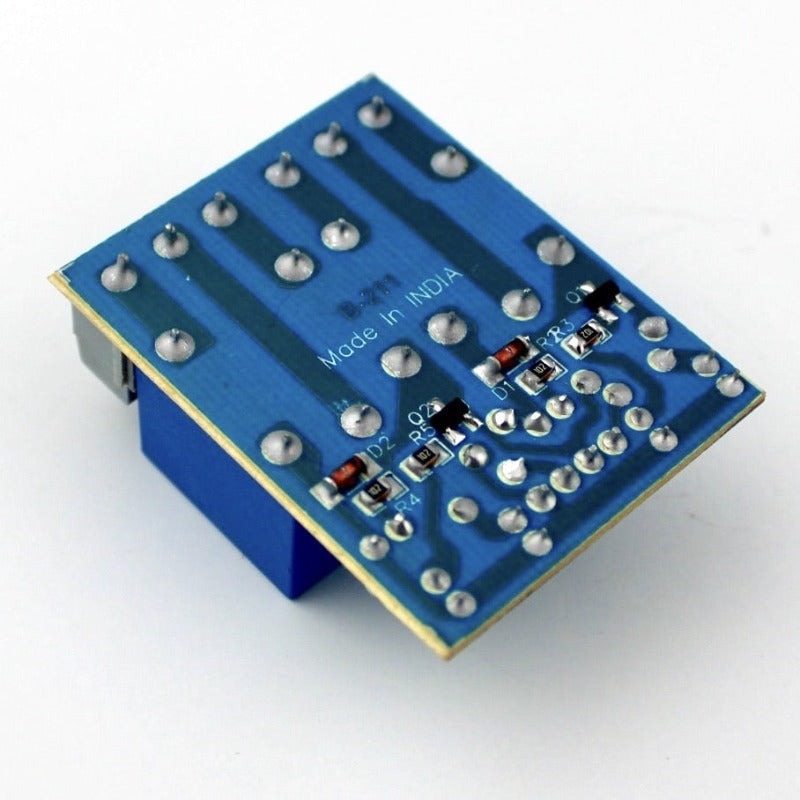

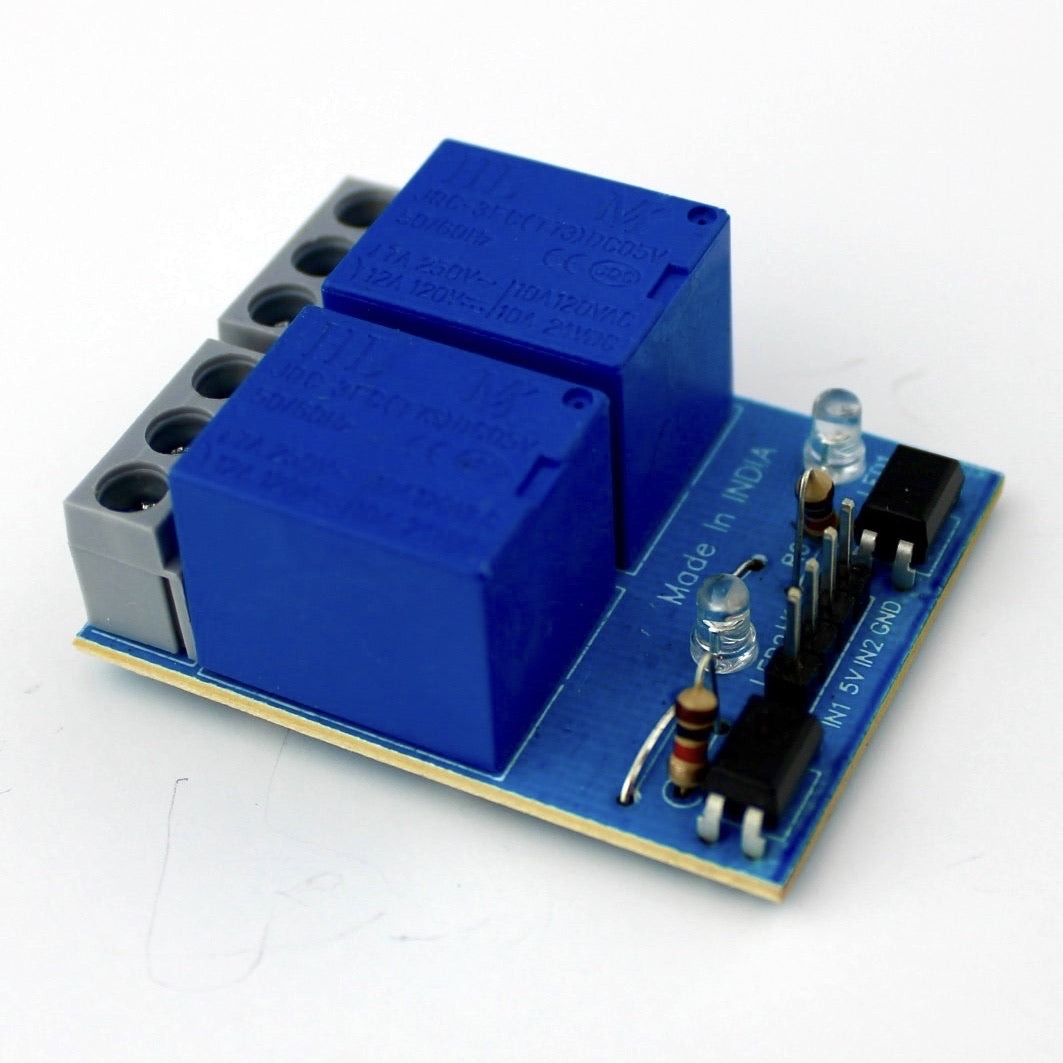

Dual Channel 5V Relay Module - Made in India

SKU: RZ24332458 Category: General

₹ 79.35

Out of Stock

Buy Dual Channel 5V Relay Module - Made in India online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 77.76
11 – 30	3%	₹ 76.97
31 – 50	4%	₹ 76.18
51 – 100	5%	₹ 75.38

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category General

Subcategory General

SKU RZ24332458

Relays are important part of any electrical and electronic circuits. We use relays in control applications, switching applications, circuit protection applications and load transfer applications. Relays are also used to provide electrical isolation between two circuits. This 2-channel Relay module comes with Optocoupler protection is an active low relay module which means that the relay will conduct when the input signal falls below 2V and if it is above 2V then the relay is turned off you can also make it an active module by changing the jumper position on the power module. It can be controlled directly with both 3.3V and 5V microcontrollers easily and dual channel enables you to control two applications at a same time which can come very handy if you want to control the direction of rotation of DC motor with your relay.

2 Channel 5V Relay Module Specifications

Optically Isolated relays protect your microcontroller from damage if the equipment being controlled fails
5V 2-Channel Relay Interface Board, each one needs 15 – 20mA Driver current
Equipped with high current relays 10A 250VAC
Relay output status indication by LED
Back EMF Protection

2 Channel 5V Relay Module Specifications

Optically Isolated relays protect your microcontroller from damage if the equipment being controlled fails
5V 2-Channel Relay Interface Board, each one needs 15 – 20mA Driver current
Equipped with high current relays 10A 250VAC
Relay output status indication by LED
Back EMF Protection

Input and output connection:

1) It consist of two relay set of 5V
2) Input pins are as N1, 5V N2, G.
3) Output from t-block connectors that is NO, COM, NC.
4) It operates on +ve input.
5) Two led indicates the signal N1 and N2.
6) The middle pin of t-block connector is common pin.

Package Contents

1×Dual Channel 5V Relay Module - Made in India
