HONEYWELL Hall Effect Sensor, Position, 103SR Series, Sink Output, 400 mV out, Cylindrical, 4.5 to 24 Vdc

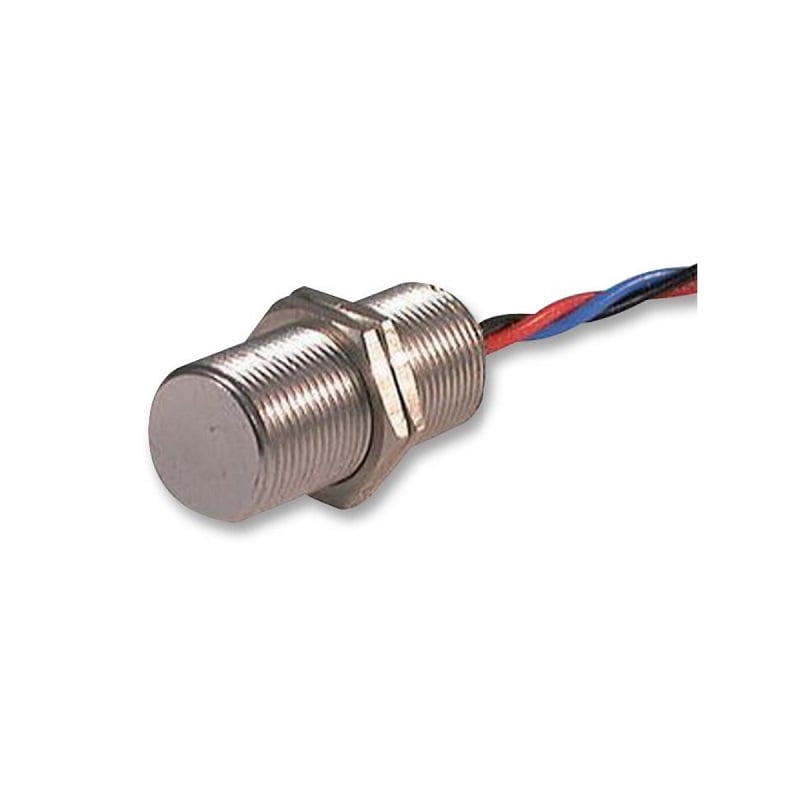

The 103SR13A-1 is an unipolar hall-effect digital Position Sensor with 15/32-32 UNS-2A cylindrical aluminium threaded housing and 152mm (6-inch) 24-gauge stranded lead wires, irradiated polyethylene insulated termination. Meet NEMA 3, 3R, 3S, 4, 4X (stainless-steel housing), 12 and 13 requirements. They respond to the magnetic field from permanent magnets or electromagnets. This rugged non-contact sensing product use versatile, reliable Hall-effect sensor ICs that are operated by a magnetic field and are designed to respond to alternating North and South Poles or to South Pole only. The hall-effect position sensor includes latching and linear magnetic types. The standard open-collector sinking output (digital devices) or push-pull output (linear device) of the hall-effect position sensor can be easily interfaced with common electronic circuitry such as microprocessors, integrated logic, discrete transistors, and SCRs with compatible voltage specifications.

Note: for more technical details go through Datasheet in the attachment section

Features:

1. Solid state reliability
2. Adjustable mounting
3. -40 to 100°C operating temperature
4. 0.4VDC maximum (operated) output voltage
5. 10mA (maximum at 25°C) supply current
6. 20mA maximum output current
7. 20µA leakage current

Package Includes:

1 x HONEYWELL Hall Effect Sensor, Position, 103SR Series, Sink Output, 400 mV out, Cylindrical, 4.5 to 24 Vdc
