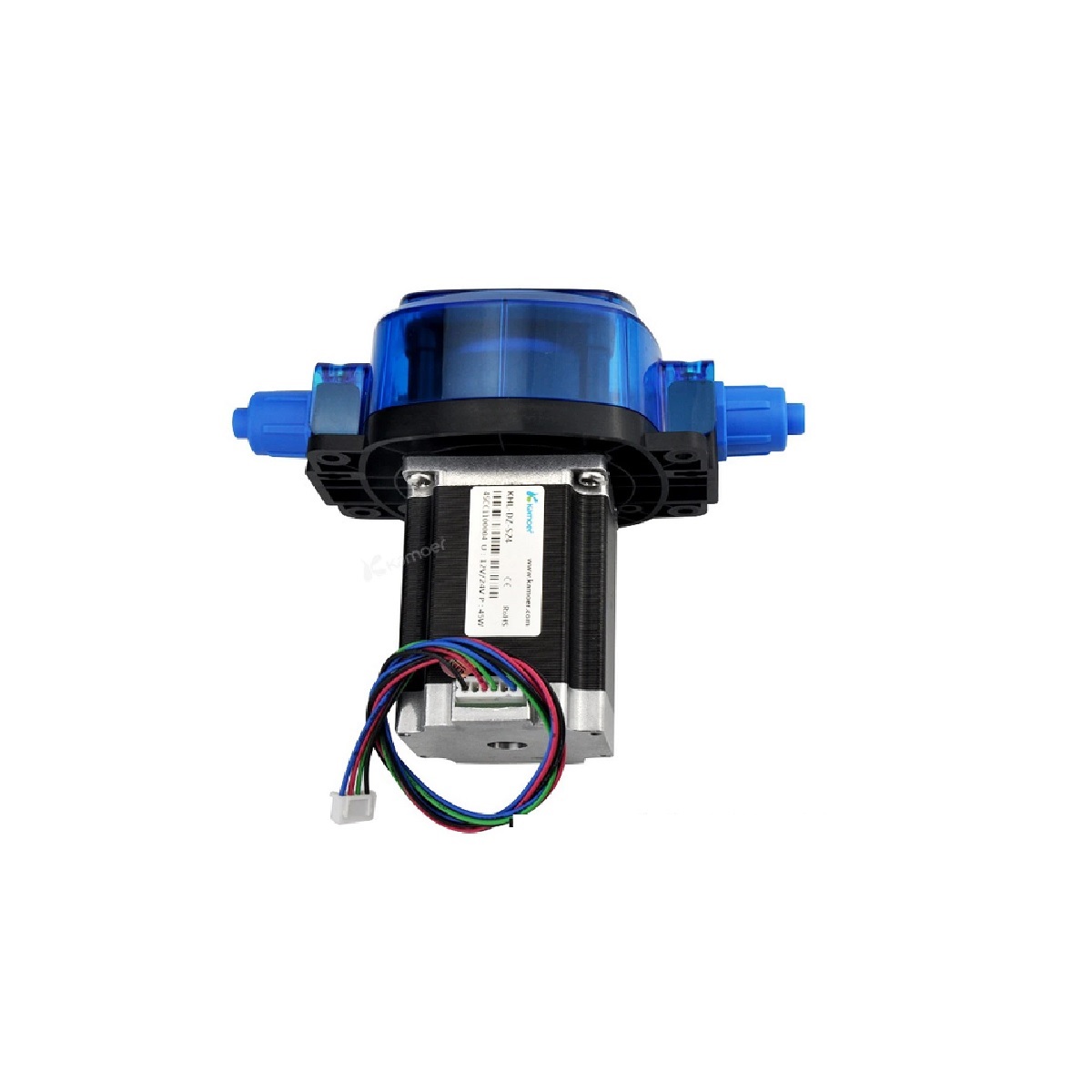

KHL-SZS24 Kamoer Pump 24V Stepper Motor(sz) 1.8A-1300ml(350RPM)|silicon tube 6.4*11.4

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squishes a silicone tube to produce the pump action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24V DC supply and can produce a flow rate of up to 1300ml per minute. If speed control is required we suggest using a simple PWM signal.

Features:

1. High flow
2. High negative pressure
3. Easy to maintenance
4. Chemical stability
5. Long life
6. High repeatability
7. Pump tube selection: silicone tube

8. Transmission mode: the motor shaft is directly driven, the

9. The motor rotates once, and the pump head rotates once

10. Pump head: the upper cover is made of PC plastic and the

11. The pump body is made of PA engineering plastic

12. Installation method: fixed through the board

Specification:

1. Motor: Stepper motor
2. Voltage: 24V
3. Current: 1.8A
4. Power: ≤ 45W
5. Flow: 1300ml/min
6. Current flow speed: 350rpm
7. Rollers: 3 rotors
8. Noise: 70dB
9. Net weight: 1320g
10. Product life: ＞ 6000H
11. Temperature: 0-40℃
12. Humidity: Less than 80%

Application:

1. Experiment
2. Filling packaging
3. Laboratory
4. Research institutes
5. Food industry

Package Includes:

1 x KHL-SZS24 Kamoer Pump 24V Stepper Motor(sz) 1.8A-1300ml(350RPM)
