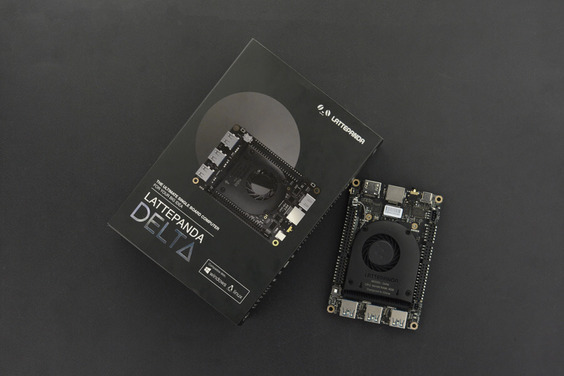

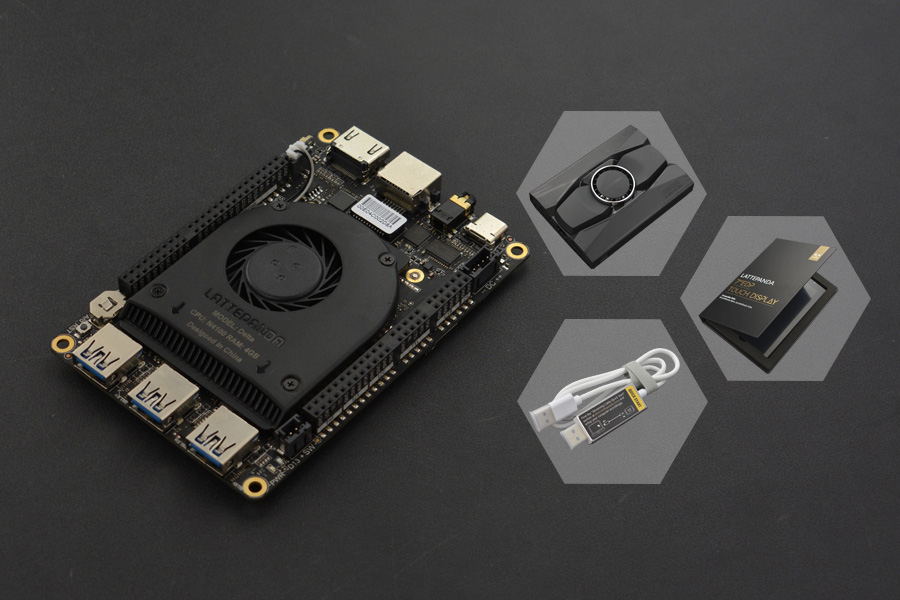

LattePanda Delta 432 (Win10 Pro Activated) with Case & Streaming Cable & Touch Display

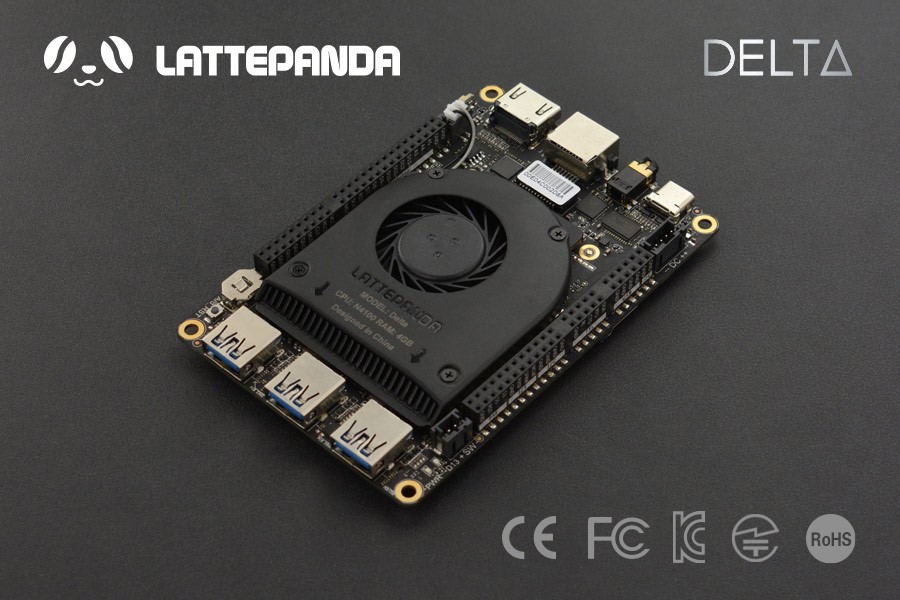

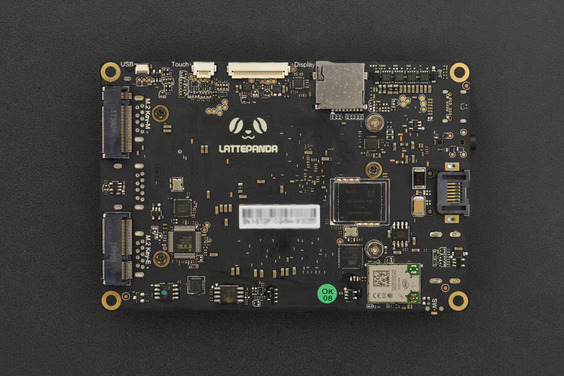

LattePanda 2 Delta is a high-performance, pocket-sized SBC (single board computer) with low power consumption that runs full Windows 10 or Linux operation systems. It is widely used in edge computing, vending, advertising machine, industrial automation, etc. Whether you’re a DIY maker, IoT (Internet of Things) developer, system integrator, or solution provider, LattePanda is your powerful development board that can empower creation and accelerates your productivity.

The LattePanda 2 Delta, based on Intel Celeron N4100, is a Quad-Core 1.1GHz CPU that bursts up to 2.4GHz, Intel UHD Graphics 600 integrated into the processor delivers enhanced media conversion, fast frame rates, and 4K Ultra HD (UHD) video. All of this computing power dissipates only 6W power, which is the perfect choice in terms of features and price as the main robotics controller, interactive project core, IoT edge device, or AI brain.

The LattePanda is perfect for makers alike who need a small, portable, and light SBC for their ultimate project! DIY project running Windows or Linux, LattePanda SBC has been a popular hit and choice for many people who wish to enjoy playing all of their old and new favorites from one small, powerful system. Given its incredibly small size, it can be easily hidden, functioning as the secretly powerful brains behind your coolest project ever.

Features:

1. Intel Celeron N4100, Quad-Core 1.1-2.4GHz
2. Intel UHD Graphics 600
3. Dual-Band 2.5GHz/5GHz Wi-Fi & Bluetooth 5.0
4. USB3.0 x3，USB Type-C x1
5. Gigabit Ethernet
6. 2 x M.2 PCIe (Support B&M Key and A&E Key)
7. Support Windows 10 & Linux OS
8. Integrated Arduino Coprocessor ATMEL 32U4

Specifications:

1. CPU: Intel Celeron N4100
2. Core: 1.1-2.4GHz Quad-Core, Four-Thread
3. Graphics: Intel HD Graphics 600, 200-700MHz
4. RAM: 4G LPDDR4 2400MHz

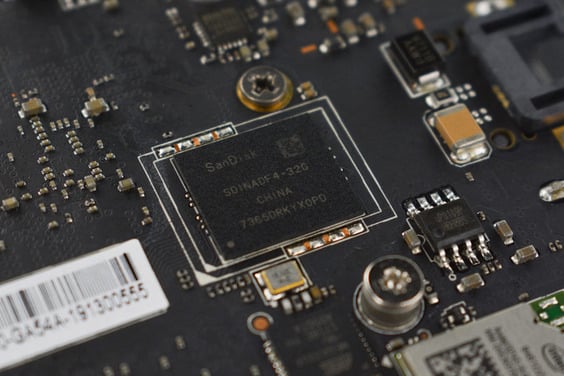

5. External Memory:
   1. 1x M.2 M Key, PCIe 2x, Supports NVMe and PCIe SSD
   2. 1x M.2 E Key, PCIe 2x, Supports USB2.0, UART
6. Connectivity:
   1. WIFI 802.11 AC, 2.4G & 5G
   2. Dual-Band Bluetooth 5.0
   3. Gigabit Ethernet
7. USB Ports:
   1. 3x USB 3.0 Type A
   2. 1x USB Type C, supports PD, DP, USB 3.0
8. Display:
   1. HDMI Output
   2. Type-C DP Support
   3. Extendable eDP touch displays
9. Co-processor: Arduino Leonardo
10. GPIO & Other Features: 2x 50p GPIOs including I2C, I2S, USB, TTL, UART, RTC, Power Management, Extendable power button, everything you need
11. OS Support: Windows 10 Pro, Linux, Ubuntu
12. Dimension: 115 x 78 x 14 mm

Useful Links:

1. LattePanda official community
2. LattePanda Documentation
3. FCC/CE Certifications
4. Tutorial: Install Linux
5. Tutorial: Adjust Cooling Fan

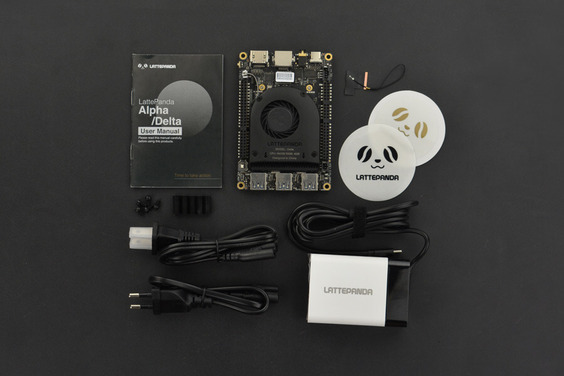

Package Includes:

1 x LattePanda Delta 432 (Win10 Pro Activated)

1 x Active Cooling Fan (Assembled)

1 x 45w PD Power Adapter (with EU & US Standard Power Cord)

2 x Dual-band Antenna

1 x RTC Battery (Assembled)

1 x User Manual

1 x Titan Case for LattePanda Alpha&Delta

1 x Streaming cable for LattePanda Single Board Computer

1 x 7 inches Touch Display (eDP) for LattePanda Alpha&Delta
