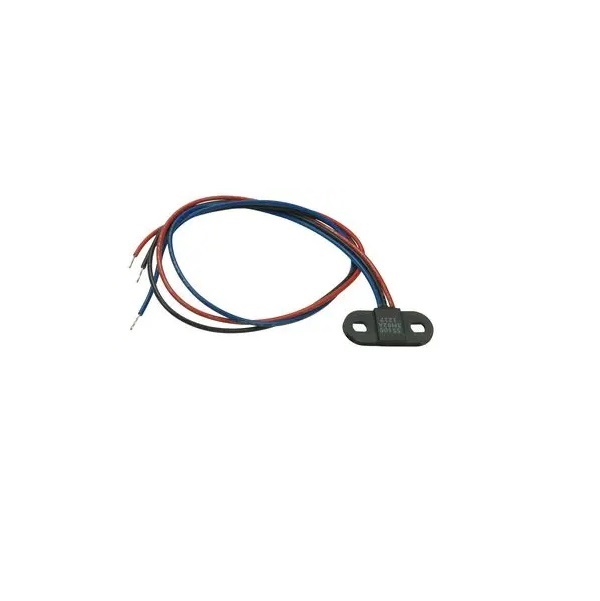

LITTELFUSE Hall Effect Proximity Sensor, Flange Mount, 55100 Series, 3 Wire, 130 G, 3.8 to 24 Vdc

The 55100 is a miniature flange mounting hall effect sensor 25.5mm (1.004”) x 11.00m (0.433”) and only 3.00mm (0.118”) high with a choice of digital or programmable analog outputs. It is available as three-wire (voltage output) or two-wire (current output) versions. It’s case design enables screw or adhesive mounting and is capable of switching up to 24 Vdc and 20mA. It comes with a range of sensitivity and cable length options

Features:

1. The magnetically operated position sensor
2. Digital switch 3 – wire (voltage output)
3. Reverse/over-voltage protection
4. Built-in temperature compensation

Specifications:

1. Supply Voltage: 2.7 to 24
2. Output High Voltage: Sinking Output
3. Output Low Voltage: 0.4 @ 20mA
4. Output Current: 25
5. Current Consumption: 1.1 to 2.4
6. Switching Speed: 12
7. Temperature: -40 to +100

Package Includes:

1 x Hall Effect Proximity Sensor, Flange Mount, 55100 Series
