LoRaE5 mini (STM32WLE5JC)

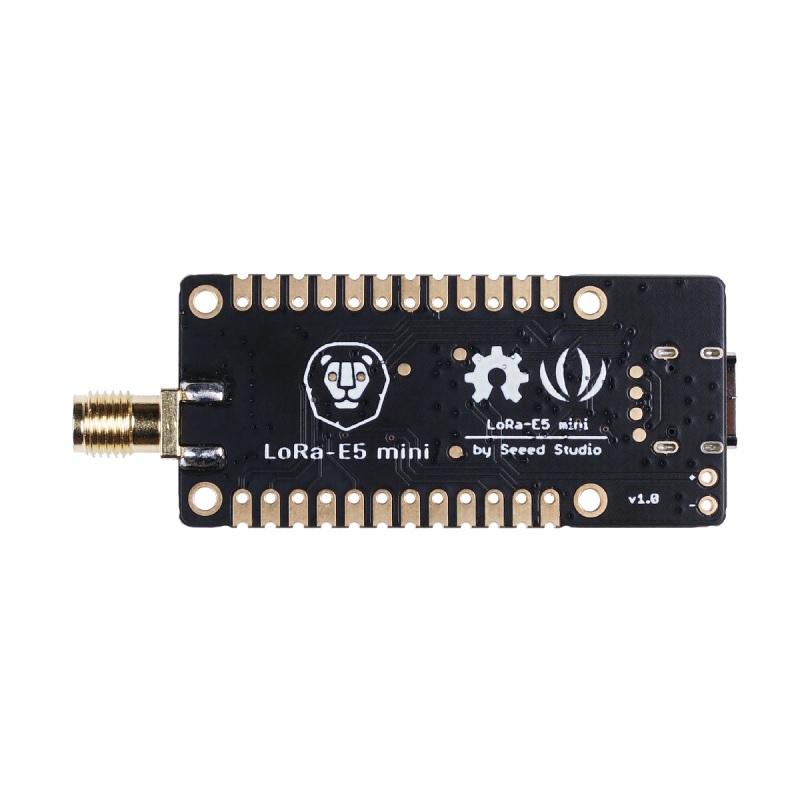

LoRa-E5 mini is a compacted-sized development board suitable for the rapid testing and building of small-size prototyping and helps you design your ideal LoRaWAN wireless IoT device with a long-distance transmission range.

LoRa-E5 mini is embedded with LoRa-E5 STM32WLE5JC Module, which delivers the world-first combo of LoRa RF and MCU chip into one single tiny chip and is FCC and CE certified. It is powered by ARM Cortex-M4 core and Semtech SX126X LoRa chip and supports LoRaWAN protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations.

Pinout:

Features:

1. Full GPIOs led out from the Lora-E5 STM32WLE5JC
2. Global LoRaWAN® and LoRa frequency plan supported
3. Long-distance transmission range to 10km (ideal value in open area)
4. Mini and compact size, suitable for rapid testing and building small size prototype
5. Convenient RESET and BOOT buttons on board
6. CurrentLoRa-E5 module sleep current as low as 2.1uA (WOR mode)

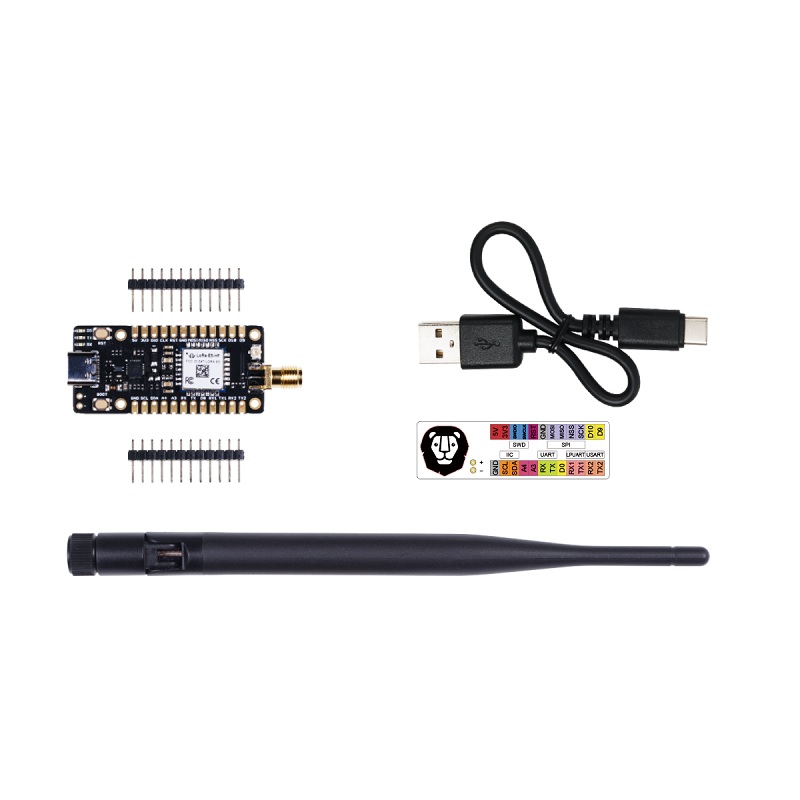

Package Includes :

1 x LoRaE5 mini (STM32WLE5JC)
