MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module
Buy MCU-758 ACS758LCB-050B- PFF-T Hall Current Sensor Module online, Order today to get instant delivery in all over india.
Out of Stock
You're on the list! We'll email you when this product is back in stock.
Enter your email to be notified when this product is available again.

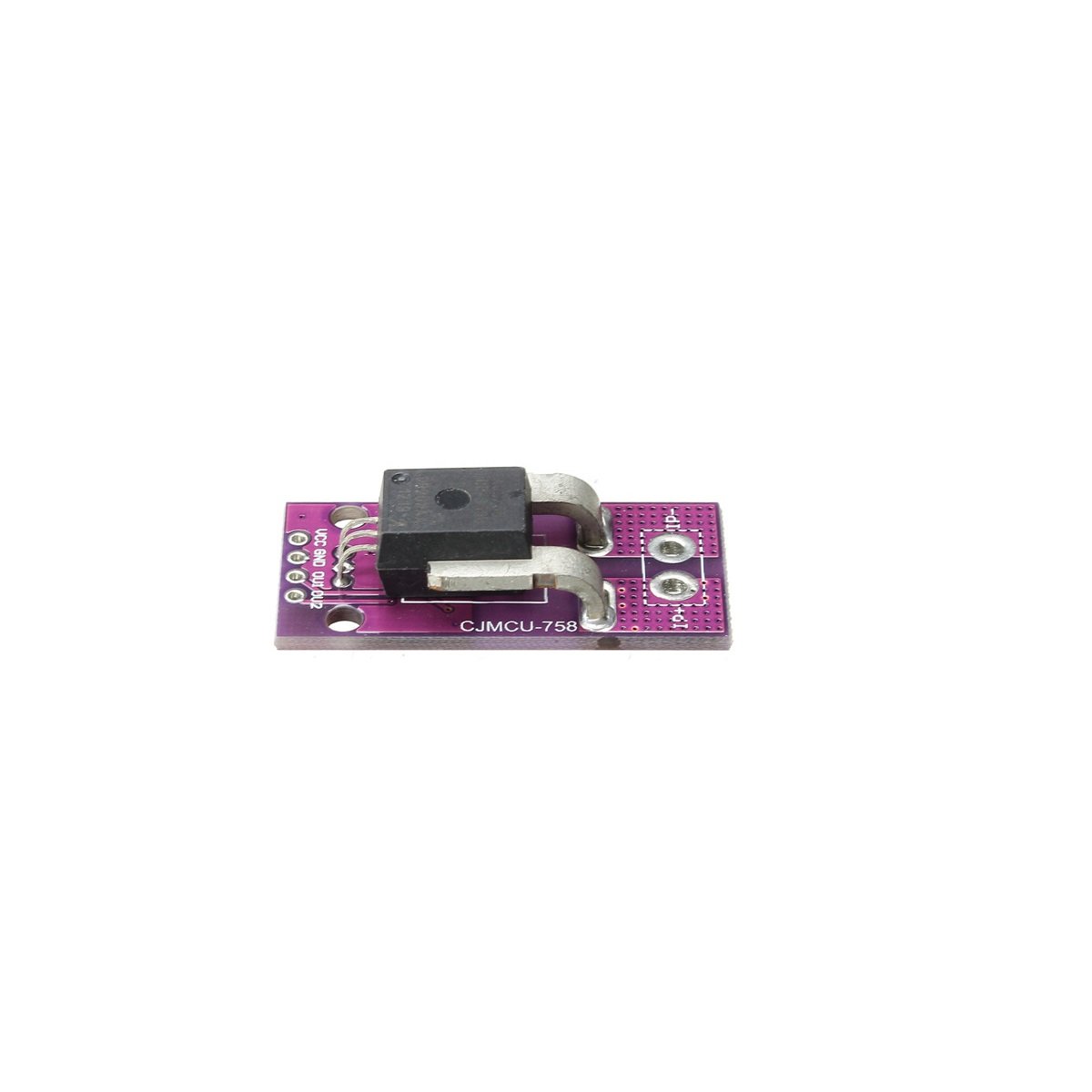

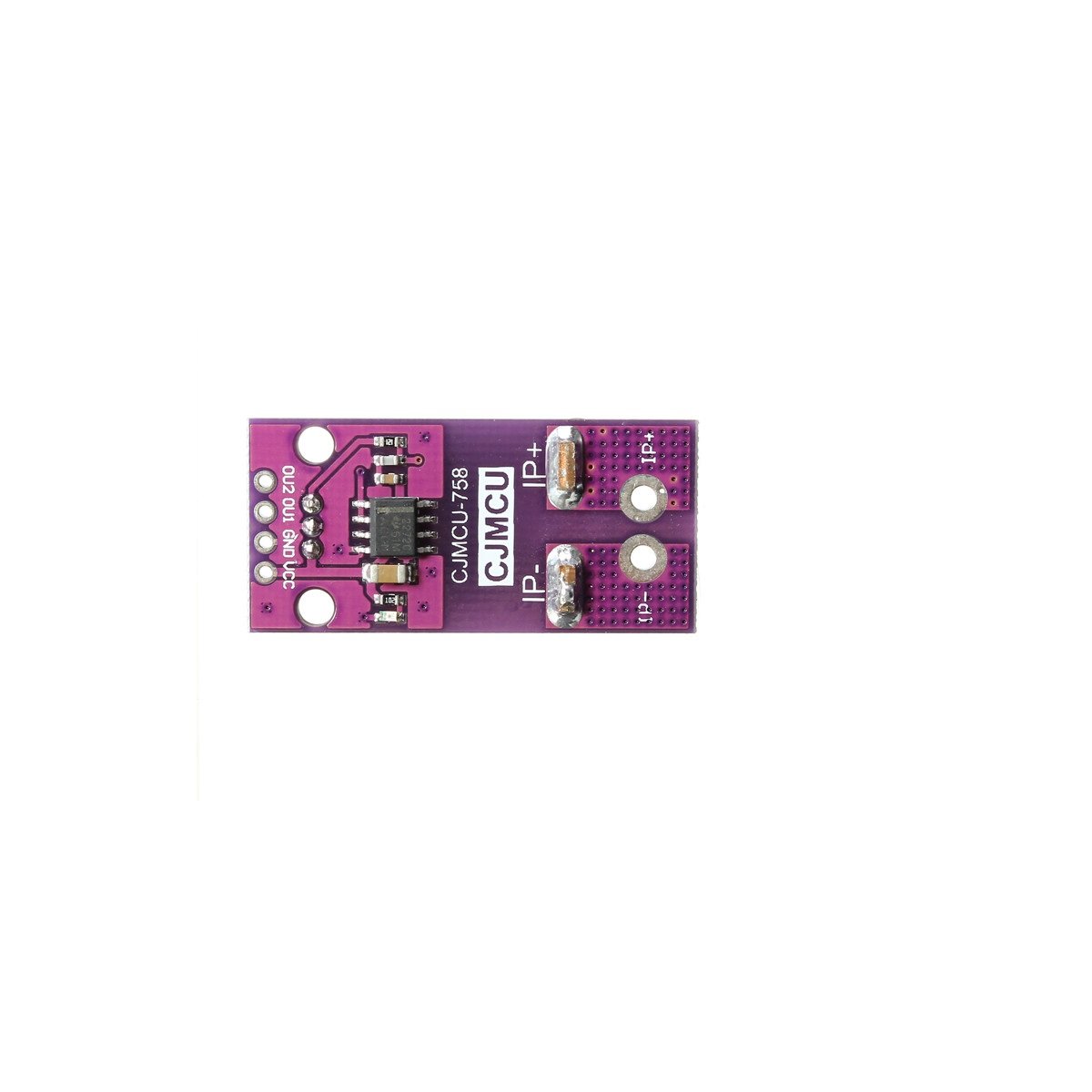

This Module is based on the Allegro Hall-effect Based Linear Current Sensor IC ACS758LCB-050B. This is 50 Ampere Bi-directional current sensor Module.
The relationship between voltage output and current input: VOUT = VOUT(Q) + Vsens x I VOUT(Q) is the quiescent output voltage, which is VCC/2, which is the output voltage when there is no input. Vsens is a sensor-sensitive scale, also known as a coefficient. I is the current flowing from IP+ to IP-. For example, suppose the sensor model is 050B, VCC is 5V, and I current is 10A, then the output is 5V / 2+40mV/A x10A=2.9V.Features:
- Small in size, with easy mounting capability.
- Monolithic Hall IC for high reliability
- Extremely stable output offset voltage
- Factory-trimmed for accuracy.
- Nearly zero magnetic hystereses.
Package Includes:
1 x MCU-758 Hall Current Sensor
