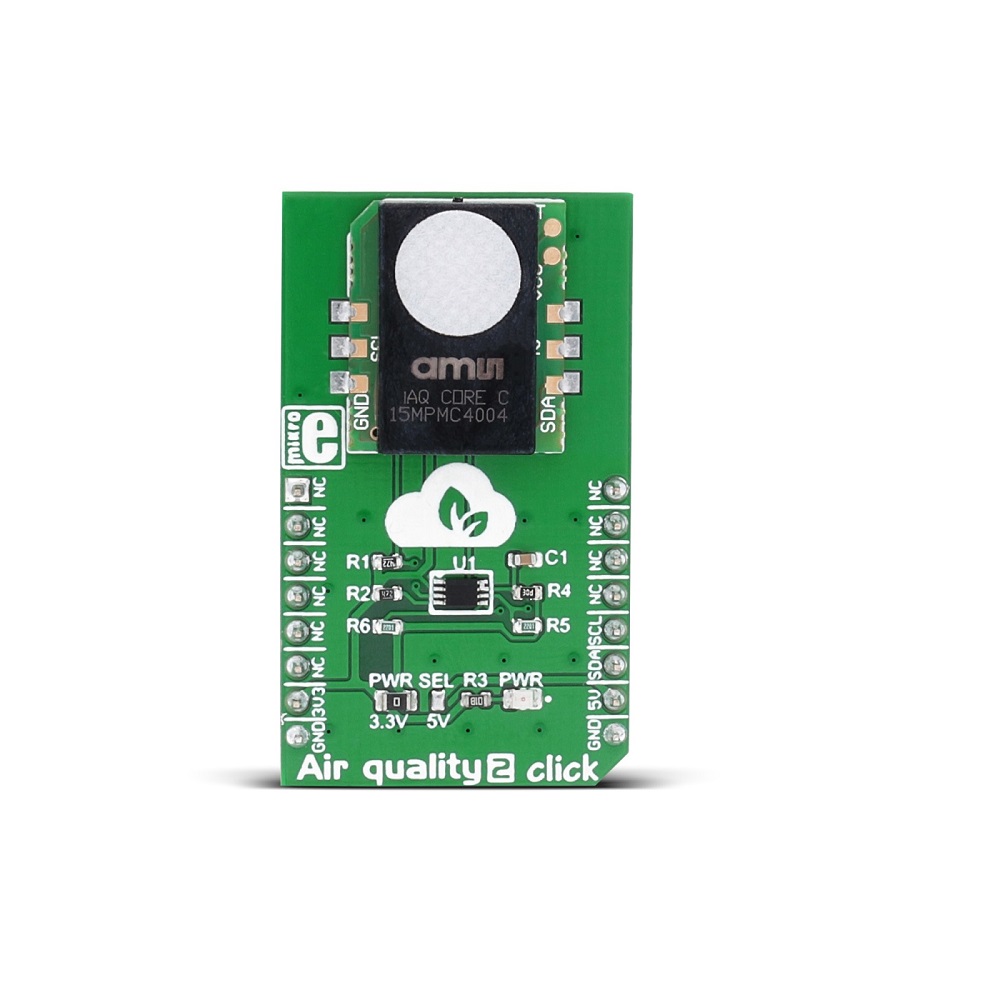

Mikroe AIR QUALITY 2 CLICK

Air quality 2 click carries the iAQ-Core Indoor Air Quality sensor that measures VOC (volatile organic compounds) levels and provides CO2 equivalent and TVOC (total volatile organic compounds) equivalent predictions. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target MCU over I2C.

IAQ-CORE SENSOR

The sensor is protected by a plastic cap and a filter membrane. This membrane should not be removed or touched. The sensing range for CO2 equivalents is from 450 to 2000 ppm (parts per million), and from 125 to 600 ppb (parts per billion) for TVOC equivalents.

Applications: Smart Home applications, Internet of Things devices, HVAC, thermostats, etc.

Specifications and Faatues:

1. Type Air Quality ,Gas
2. Compatibility mikroBUS
3. Click board size M (42.9 x 25.4 mm)
4. Input Voltage 3.3V or 5V
5. On-board modules iAQ-Core sensor
6. Low power consumption,
7. Measures VOC levels and provides CO2 equivalent and TVOC equivalent predictions.
   Interface I2C

Useful Links:

Package Includes:

1 x Mikroe AIR QUALITY 2 CLICK
