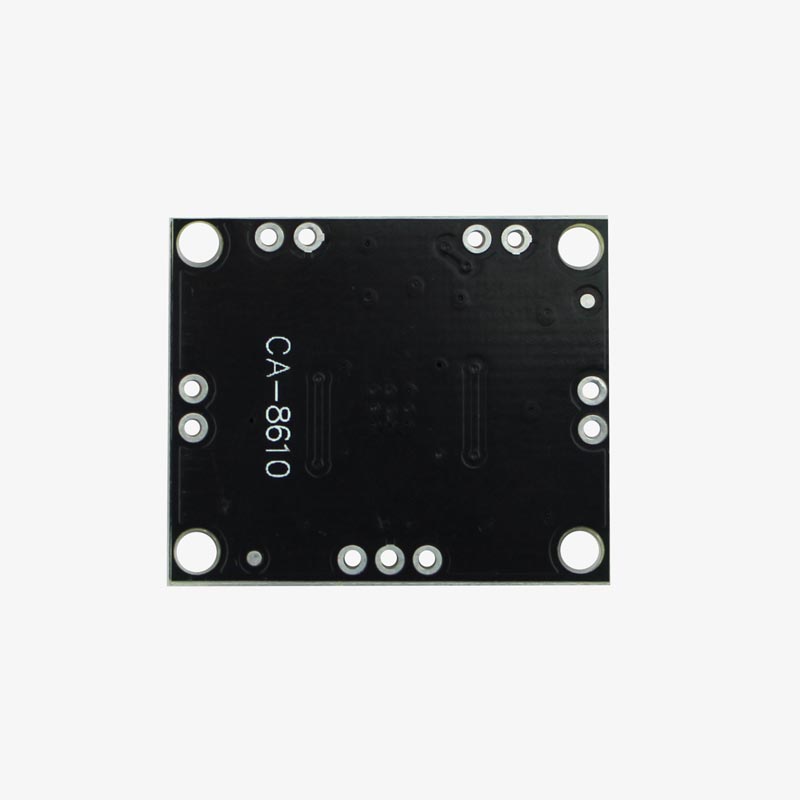

PAM8610 Class-D Audio Amplifier Board

The PAM8610 is a stereo Class-D audio amplifier with DC Volume Control. It offers 15W (per channel) output with low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. It has 32 steps DC volume control with a range of +32dB to -75dB. The PAM8610 supports 7V to 15V supply. It is more efficient than competitors’ ICs or products. It also has an inbuilt mute switch option as a pinout on the board.

PAM8610 pinout:

Specifications:

1. PAM8610 as main driver IC
2. Dual-Channel Stereo Output
3. MAX Wattage: 15W
4. Input Voltage Range:  7V to 15V power Supply
5. Volume control resolution: 32 Steps
6. Volume control range: +32dB to -75dB
7. Working Mode: Class D (PWM modulation type).
8. Much higher efficiency in terms of cost and performance than competitors’ ICs
9. This plate with a switching function, SW short, will turn off the power amplifier.
10. No External Heat Sink Required

PAM8610 Dimension and footprint:

PAM8610 Applications:

• Portable Audio Player
• Mini Speaker Control System
• Music Systems
• Radio or TV
• Power Amplifier

Example Projects on PAM8610:

Detailed Info about PAM8610 Module

Additional Resources:

PAM8610  Datasheet

Package Contains

1x PAM8610 audio module
