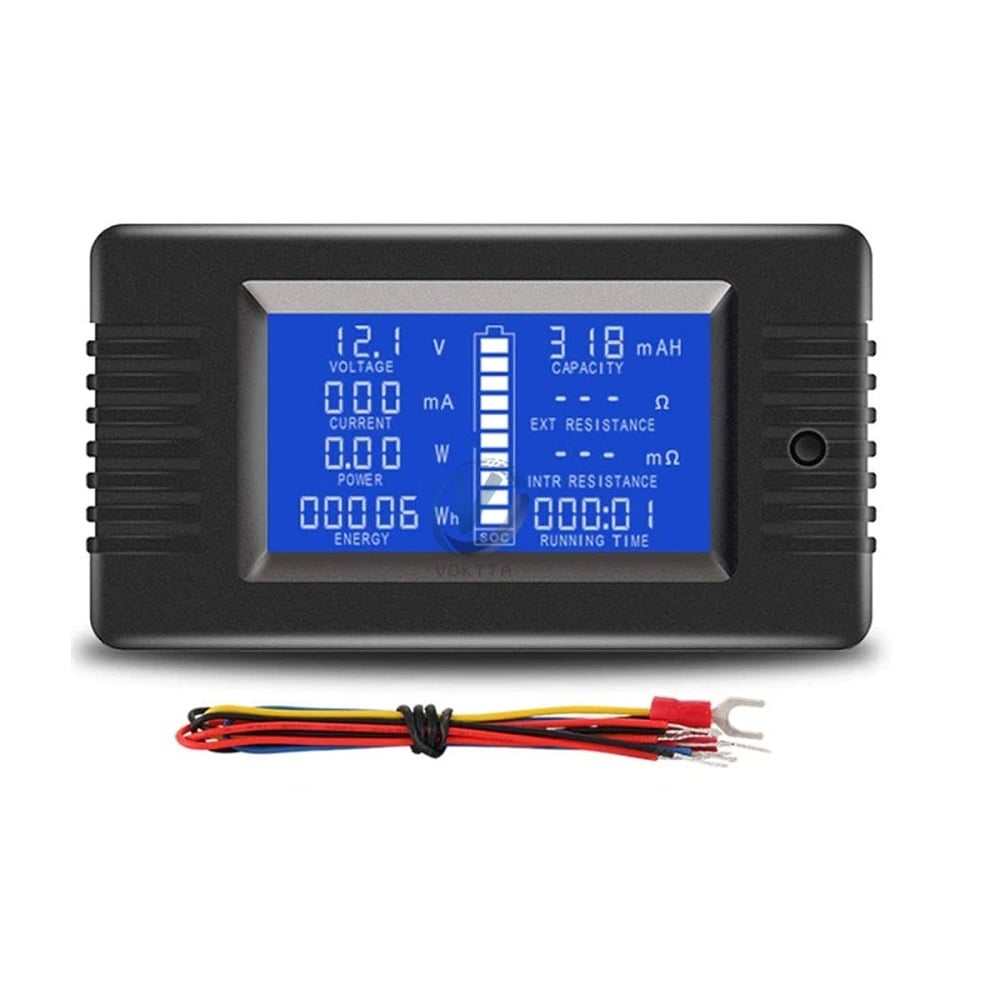

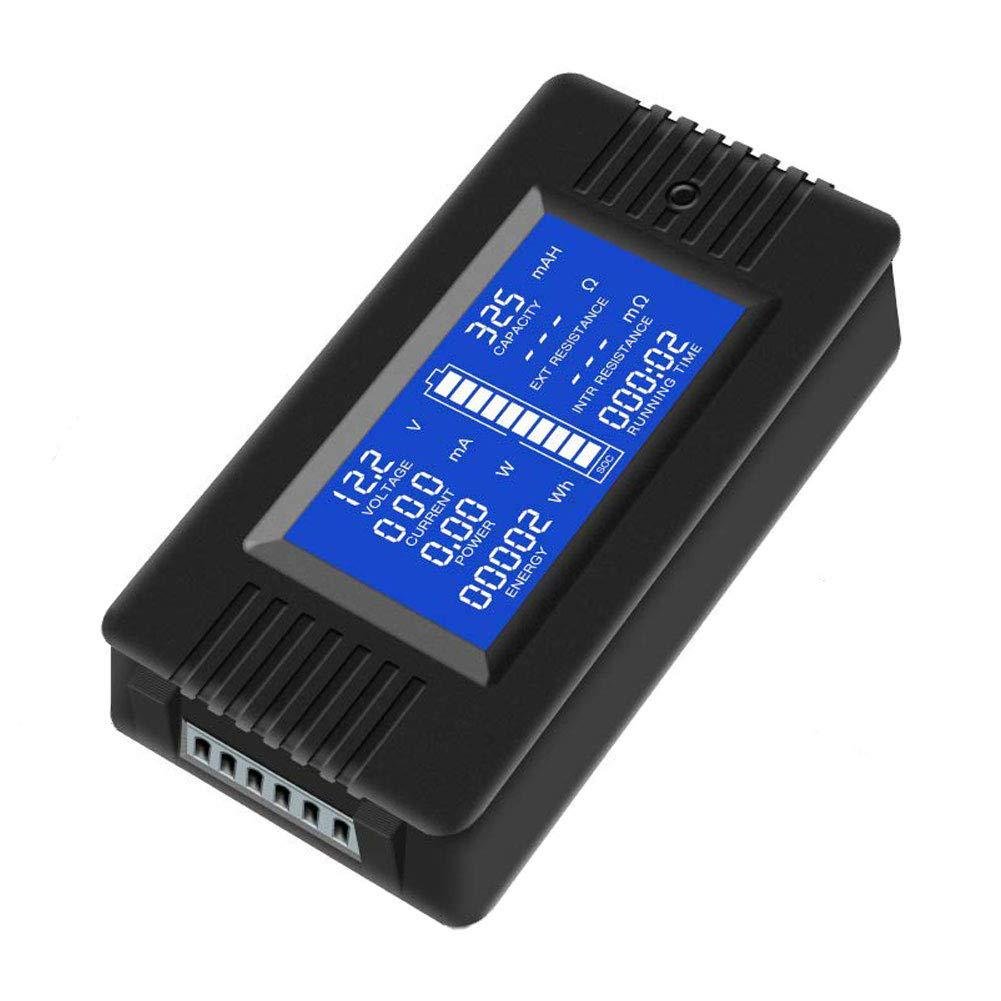

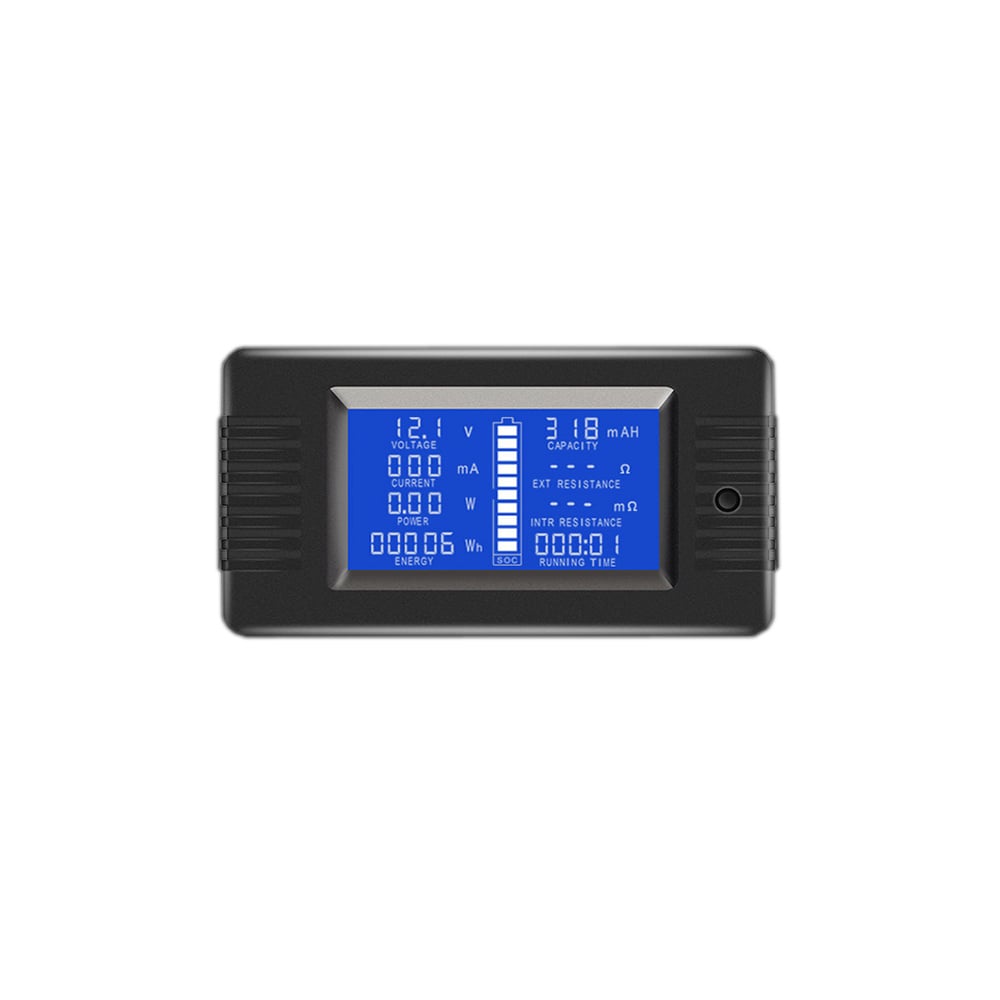

PZEM-015 Digital Battery Tester Ammeter Voltmeter Energy Meter (Without Shunt)

PZEM-015 Digital Battery Tester Ammeter Voltmeter Energy Meter Power Capacity Impedance Residual Electricity Tester Shunt Without Shut has 9 major functions, A Full viewing angle LCD which has  100A measuring range (with 100A shunt)
It is simple Screwless installation and easy connections. This meter is mainly used to measure the voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time of various types of batteries, and display measurement data through LCD.

Note: Shunt is not included in package you have to buy it seperately

Specifications and Feature:

1. Current measurement range: 0-300A, <1A shows 999mA
2. Voltage measurement range: 0-200V, <10V display 9.99V
3. Power measurement range: 0-60000W, <10W display 9.99W
4. Energy consumption measurement range: 0-9999kWh, <1kWh display 999Wh
5. Impedance measurement range: 0-1000 Ω, <100 Ω shows 99.9 Ω
6. Capacity measurement range: 0-1000AH, <1AH shows 999mAH
7. Internal resistance measurement range: 0-999mΩ, format: 999mΩ
8. Running time range: 0-999 hours, format 0:00:00~999:59 (overflow to 0)
9. Remaining battery power: Displayed by the battery symbol, a total of 10 grids, each grid represents 10% of the electricity.
10. Size: 89.6×49.6×24.25mm
11. Display size: 51x30mm

Package Includes:

1 x PZEM-015 Digital Battery Tester Ammeter Voltmeter Energy Meter (Without Shunt)

1 x Connecting wires

1 x User Manual
