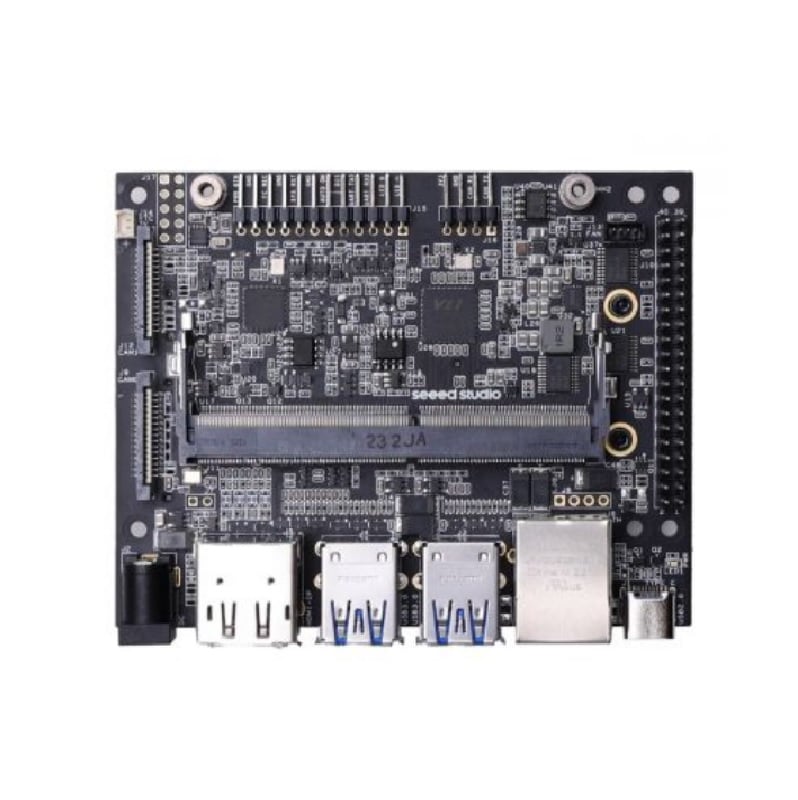

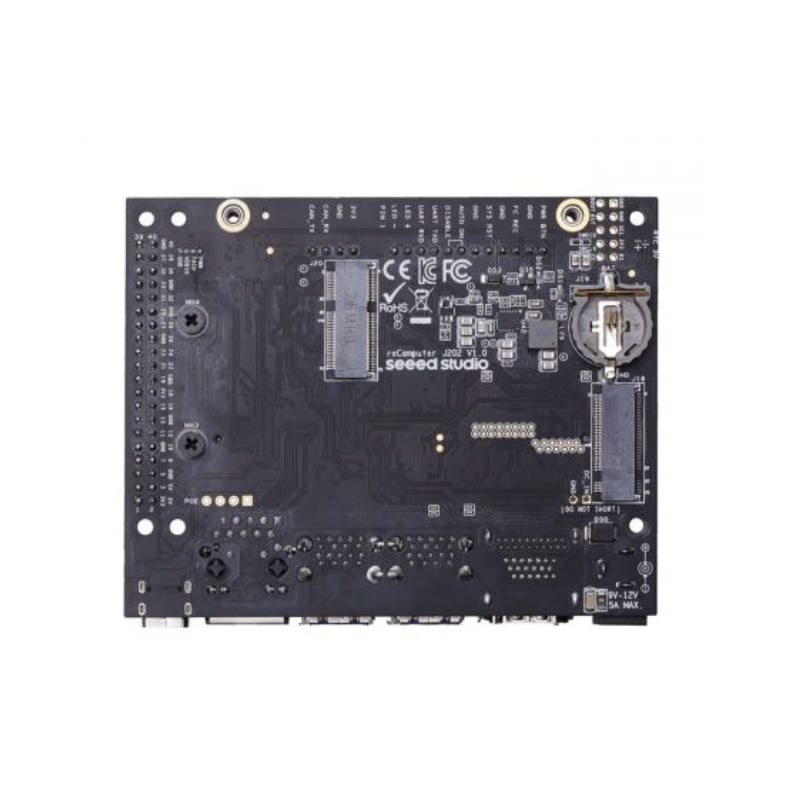

reComputer J202 – Dev Kit carrier Board for Jetson Nano/Xavier

reComputer J202 – Dev Kit carrier Board for Jetson Nano/Xavier NX/TX2 NX, with 4xUSB, M.2 Key M,E same size of NVIDIA Jetson Xavier NX carrier board

The reComputer J202 carrier board has nearly the same design and function as NVIDIA Jetson Xavier NX carrier board, perfectly works with Jetson Nano/Xavier NX/TX2 NX module, and consists of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.

The carrier board can work as NVIDIA Jetson Xavier NX Dev Kit carrier board alternative, accelerating your next AI application development and deployment.

reComputer J202 is a high-performance, interface-rich NVIDIA Jetson Nano / Xavier NX / TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.1 Gen 2, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA Jetson Xavier NX DEVELOPER KIT.

Applications:

1. Pedestrian detection by Edge Impulse
2. Hard hat detection and build custom PPE detection
3. Pose Estimation with always AI
4. Visual anomaly detection using NVIDIA Deep-stream IoT
5. Retail store items detection
6. Wildfire detection
7. Animal detection

Note: For more info refer to Datasheet

Product Overview

Features:

1. Perfectly suited: Design for Jetson Nano/Xavier NX/TX2 NX (260-pin SODIMM)
2. Developer Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Jetson Xavier NX Developer Kit.
3. Rich peripherals: Higher performance stability consists of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.
4. High versatility: Suitable for complicated AI graphical applications.
5. Comprehensive certificates: FCC, CE, RoHS(Certification received in early Sept)

Packages Includes:

1 x reComputer J202

1 x 12V/5A power adapter
