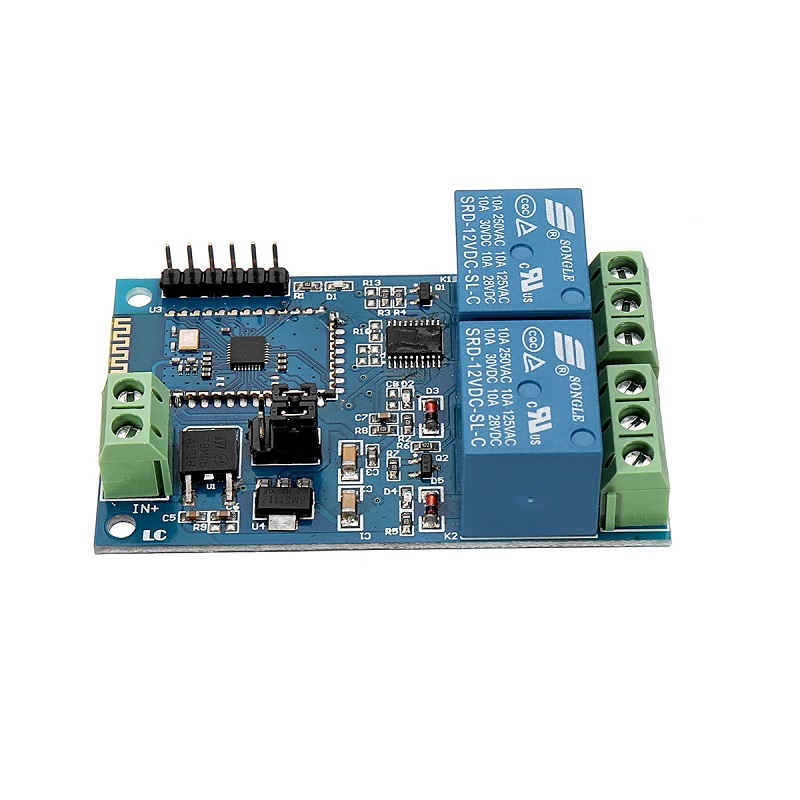

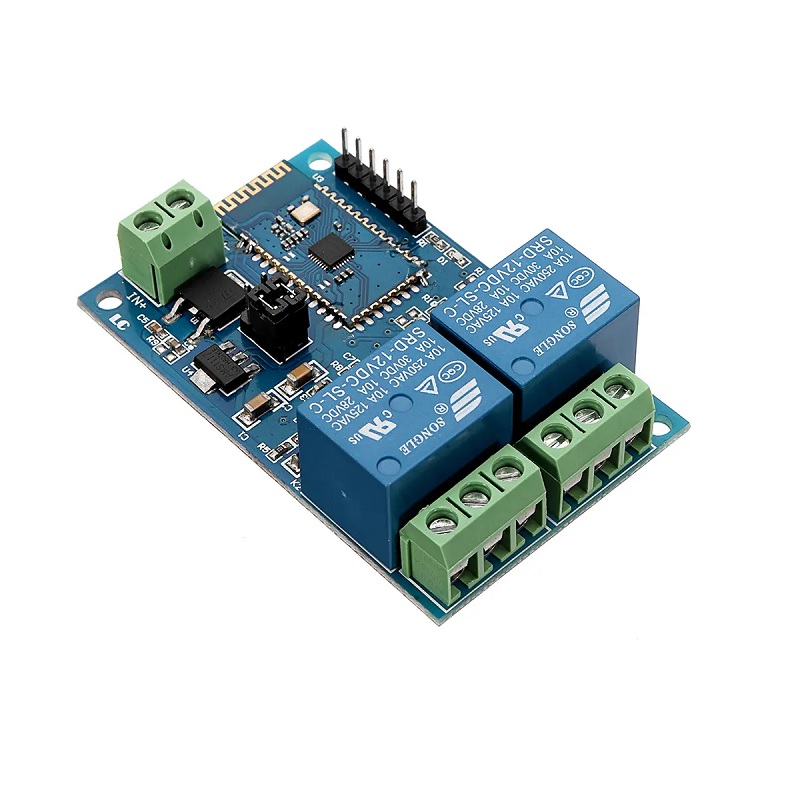

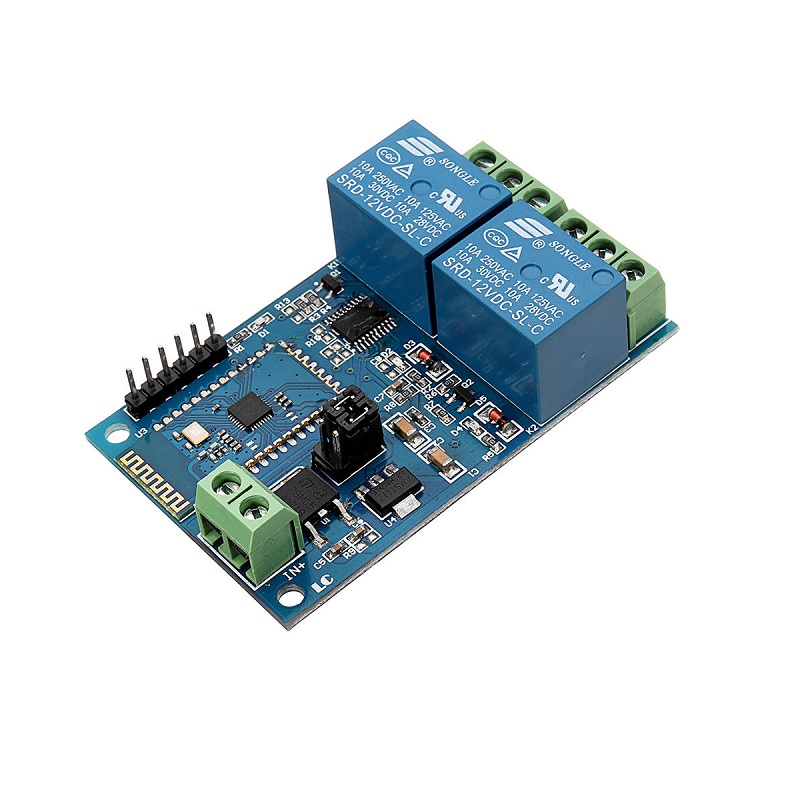

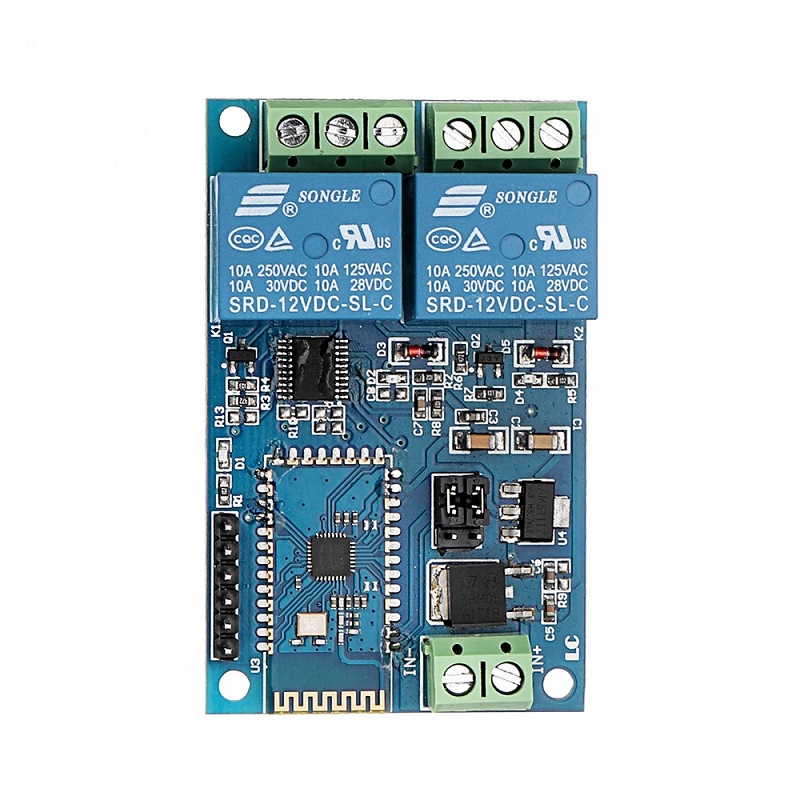

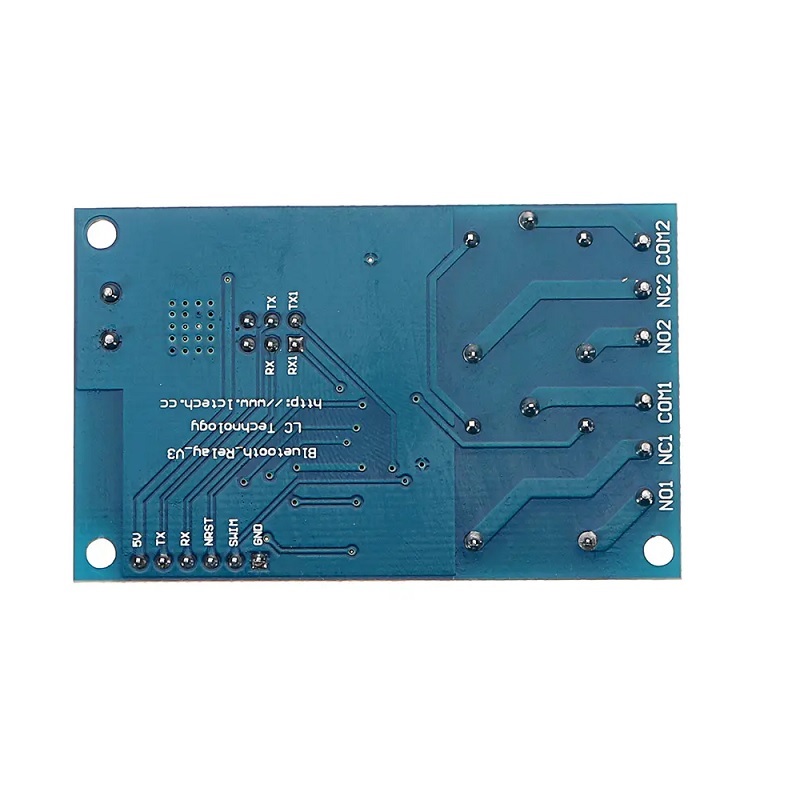

The DC 12V 2 Channel Bluetooth Wireless Control Relay Module contains 2 relay channels that operate on 12VDC to handle the appliances of 230VAC or 30VDC up to the 10A current. The relay module comes with an onboard integrated SPP-C Bluetooth serial slave module, which can be used to control relay switching by sending commands via the mobile phone APP with very easy to set up.
LED Indications:
LED D1(Blue): Bluetooth state indicator:
- D1 blink slowly-Search Module over Bluetooth and wait till pairing
- D1 Continue ON means connection established and ready to use
LED D2/D3/D2/D5 (Red): Relay indicator
These LEDs will show the status of Relay ON-OFF individually
Specifications and Features:
- Easy to set up and pair with Android Phone
- Onboard Bluetooth status indicator and relay indicator
- With 2 optocoupler isolation, strong anti-interference ability

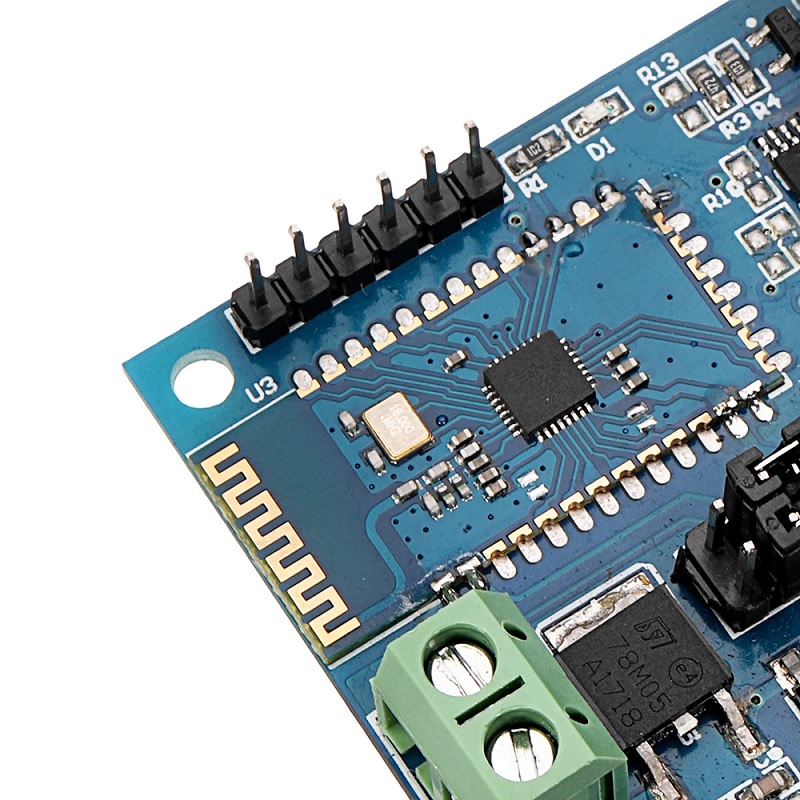

- Onboard N76E003/STM8S003 and SPP-C Bluetooth 2.1 module
- Effective control distance(on open area): 10m
- Module Operating Voltage: 12VDC
- On-board 12V, 10 A / 250 v AC 10 A / 30 v DC relay, absorb 100000 times continuously.
- Module with diode effusion protection short response time
- Board Dimensions (L x W x H) mm: 65 x 41 x 19
- Weight : 35 gm
Package Includes:
1 x DC 12V 2 Channel Bluetooth Wireless Control Relay Module
