VIGOR 8mm Dual Shaft BO Motor Straight

SKU: RZ24339184 Brand: Arduino Category: Motors & Actuators

₹ 92.00

Out of Stock

Buy VIGOR 8mm Dual Shaft BO Motor Straight online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 90.16
11 – 30	3%	₹ 89.24
31 – 50	4%	₹ 88.32
51 – 100	5%	₹ 87.40

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Brand Arduino

Category Motors & Actuators

Subcategory Motors (General)

SKU RZ24339184

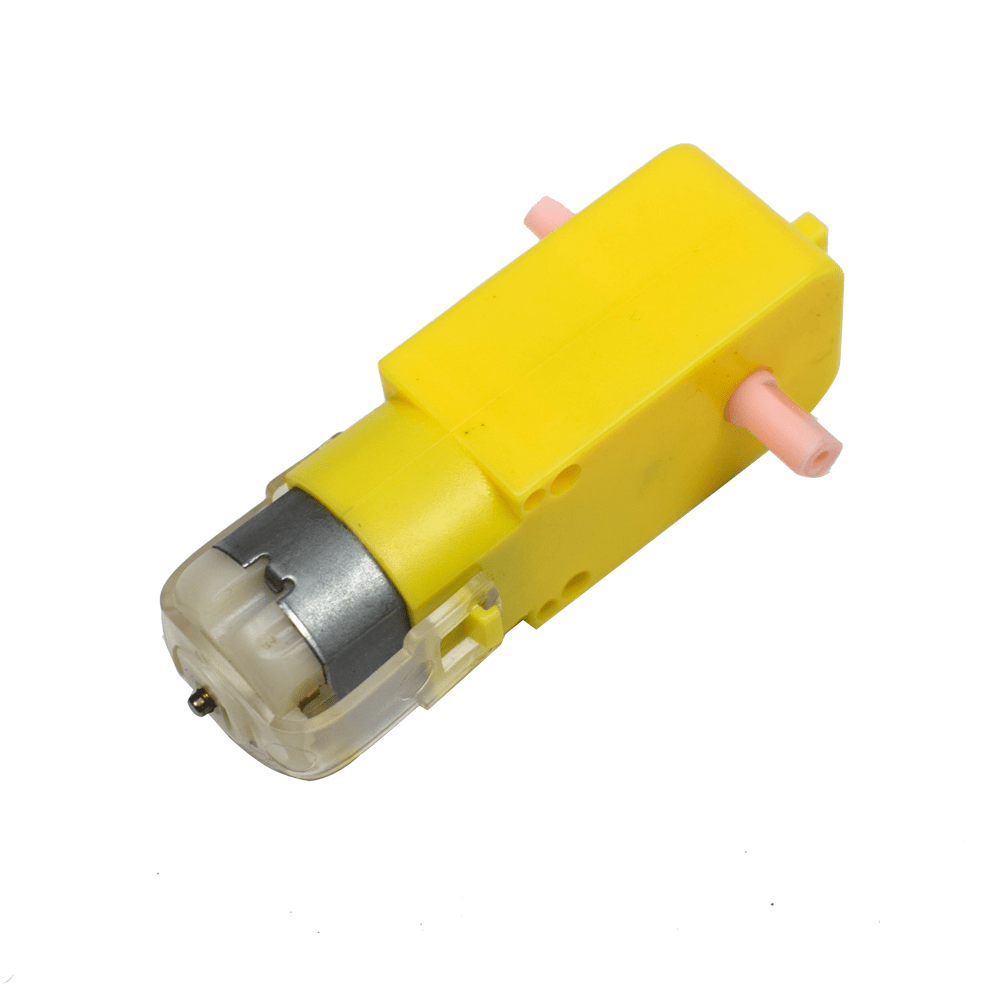

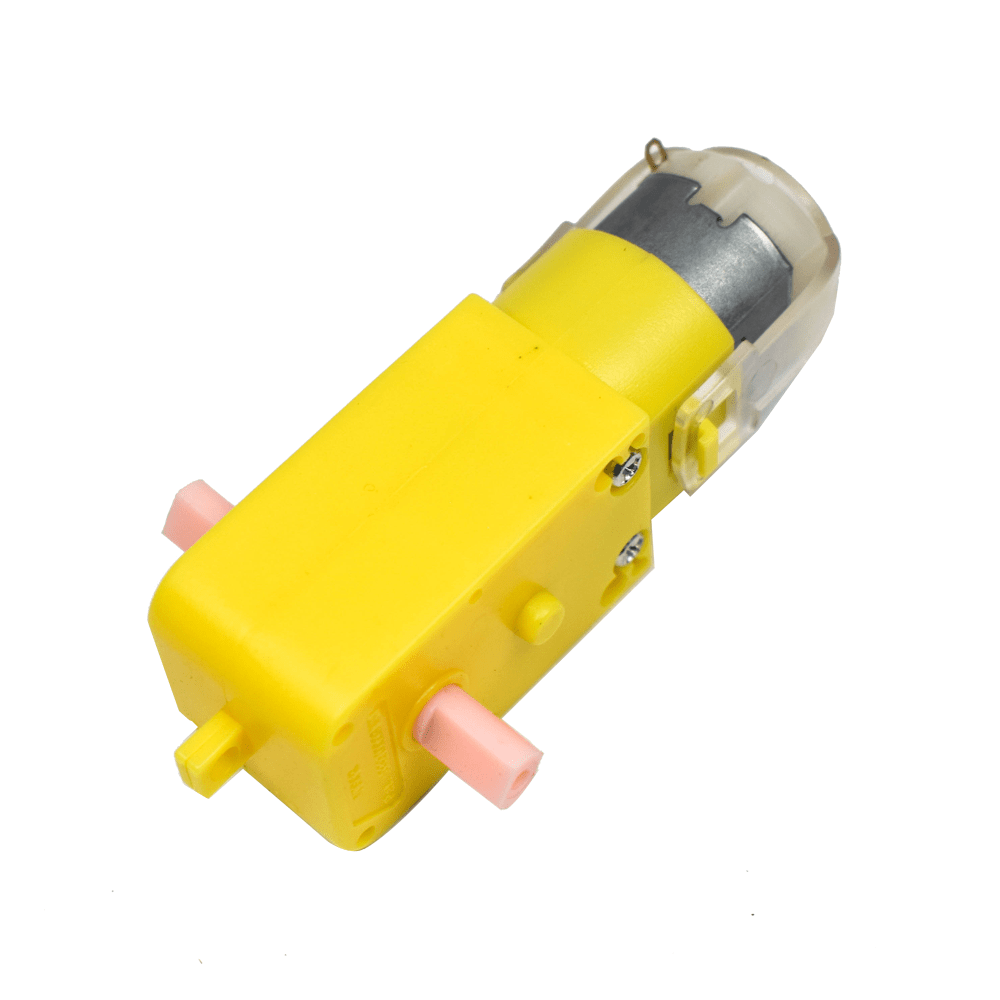

Dual Shaft BO Motor Plastic Gear BO series straight motor gives good torque and rpm at lower operating voltages. It is a low-cost geared DC Motor which is an alternative to metal gear DC motors. It is most suitable for lightweight robots running on voltages between 5V-9V. Out of its two shafts, one shaft can be connected to the wheel, while the other can be connected to an encoder

Connections

Connect the power source to two leads and see it spinning.
One end of the shaft can be connected to the wheel, while the other can be connected to an encoder.

Applications

Arduino
Raspberry-Pi
DIY Projects.
Battery-operated toys.
Disk drives Steel rolling mills Paper.
Machines Medical equipment.
Radio-controlled aircraft.
Automobiles Drive systems Positioning.
Industrial and consumer actuators Winches Robotics Mixers.
Robotic projects.

Precautions

Do not connect the motor directly to the output pin of a microcontroller. Use a transistor, H-Bridge, or Motor Driver
The motor can become hot if you feed in more voltage. Do not connect the motor to more than a 9 V power source though it resists up to 12 V
This is a DC Motor. Do not attempt to use it with AC

Specification

Brand	VIGOR
Operating Voltage	3-12 V DC
Rated Speed(After Reduction)	150 RPM
Shaft Length	8 mm
Shaft Diameter	5.4 mm
No Load Current	40 mA -180 mA
Gearbox Shape	Straight
Motor Length	65mm
Width	22.2mm
Depth with shaft	36.6mm
Material	Plastic
Make	Make in India
Country of Origin	China
