YF-S201 Water Flow Sensor

SKU: RZ24344491 Category: Sensors

₹ 205.85

Out of Stock

Buy YF-S201 Water Flow Sensor online, Order today to get instant delivery in all over india.

Bulk Discount Pricing

Quantity	Discount	Price / Unit
5 – 10	2%	₹ 201.73
11 – 30	3%	₹ 199.67
31 – 50	4%	₹ 197.62
51 – 100	5%	₹ 195.56

Out of Stock

You're on the list! We'll email you when this product is back in stock.

Enter your email to be notified when this product is available again.

Why Buy From Us

Fast Shipping

Quick dispatch on all orders

Secure Payment

100% safe transactions

GST Invoice

Available on all orders

Easy Returns

7-day return policy

Expert Support

Always here to help

Product Details

Category Sensors

Subcategory Sensors (General)

SKU RZ24344491

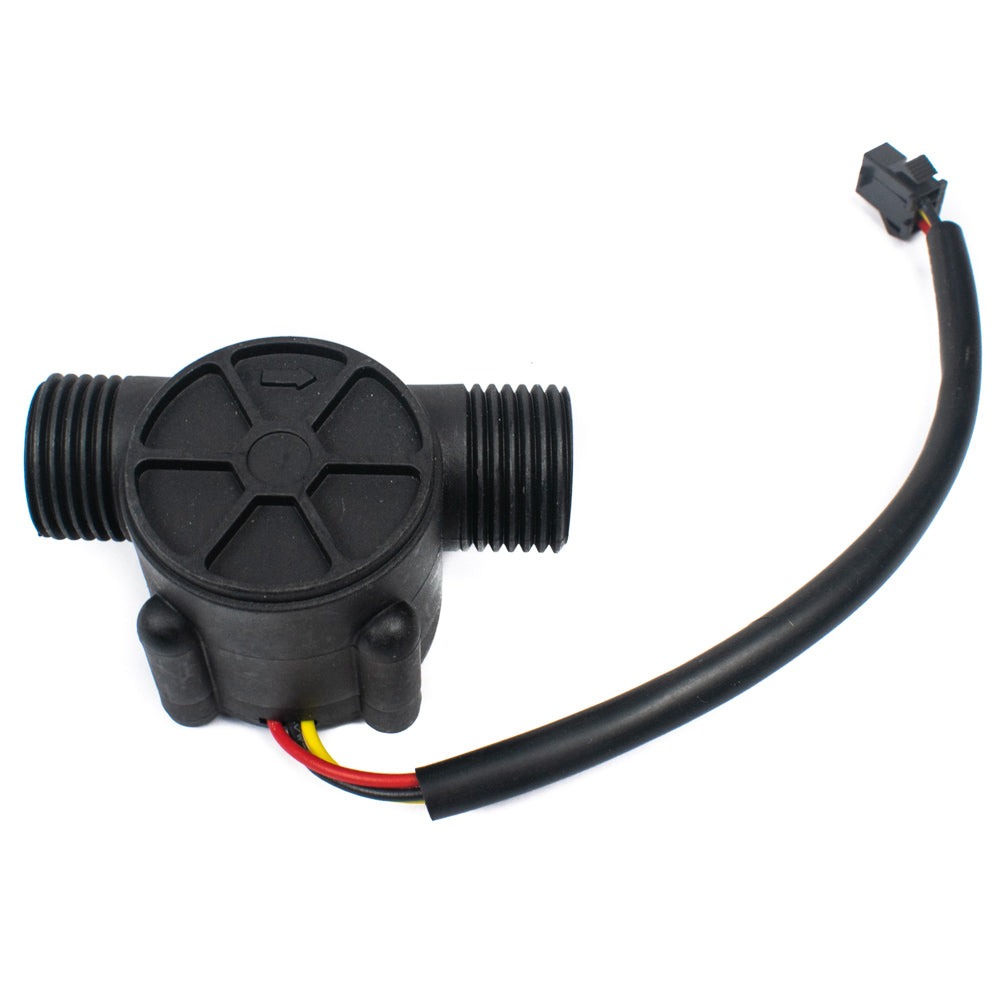

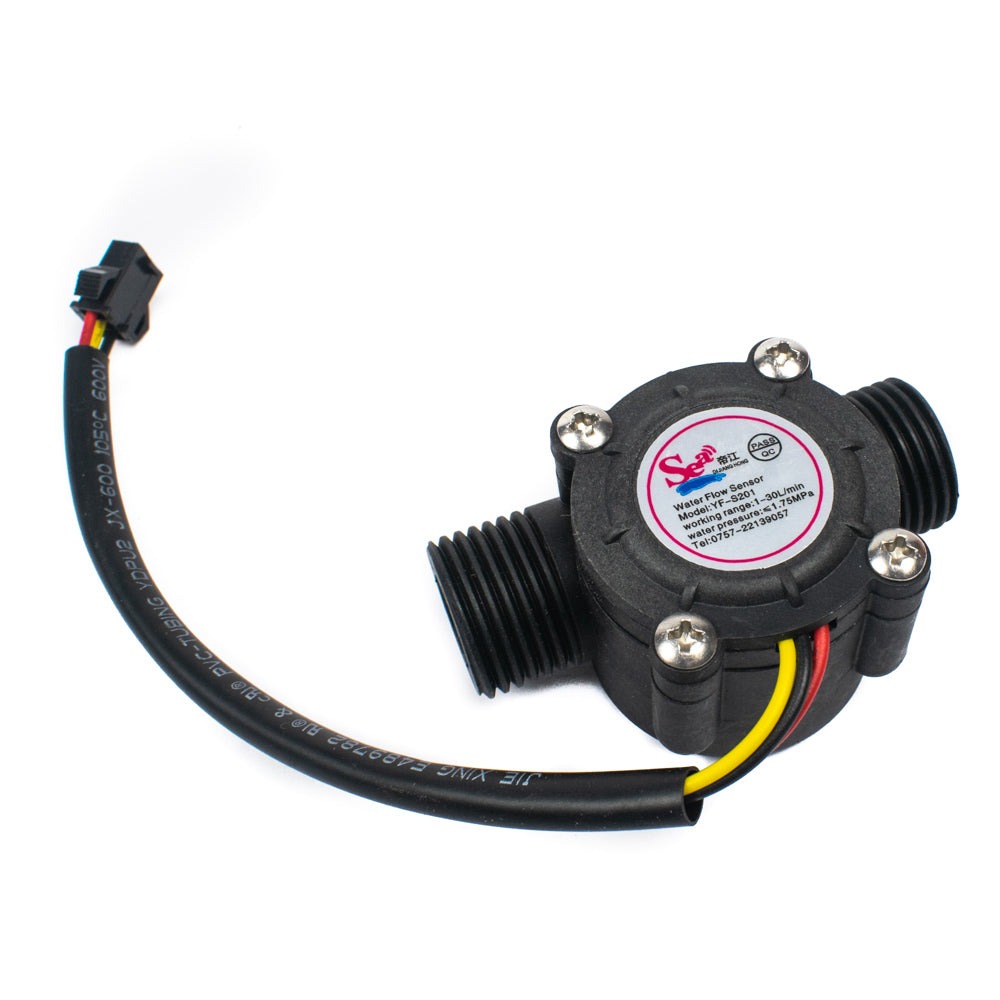

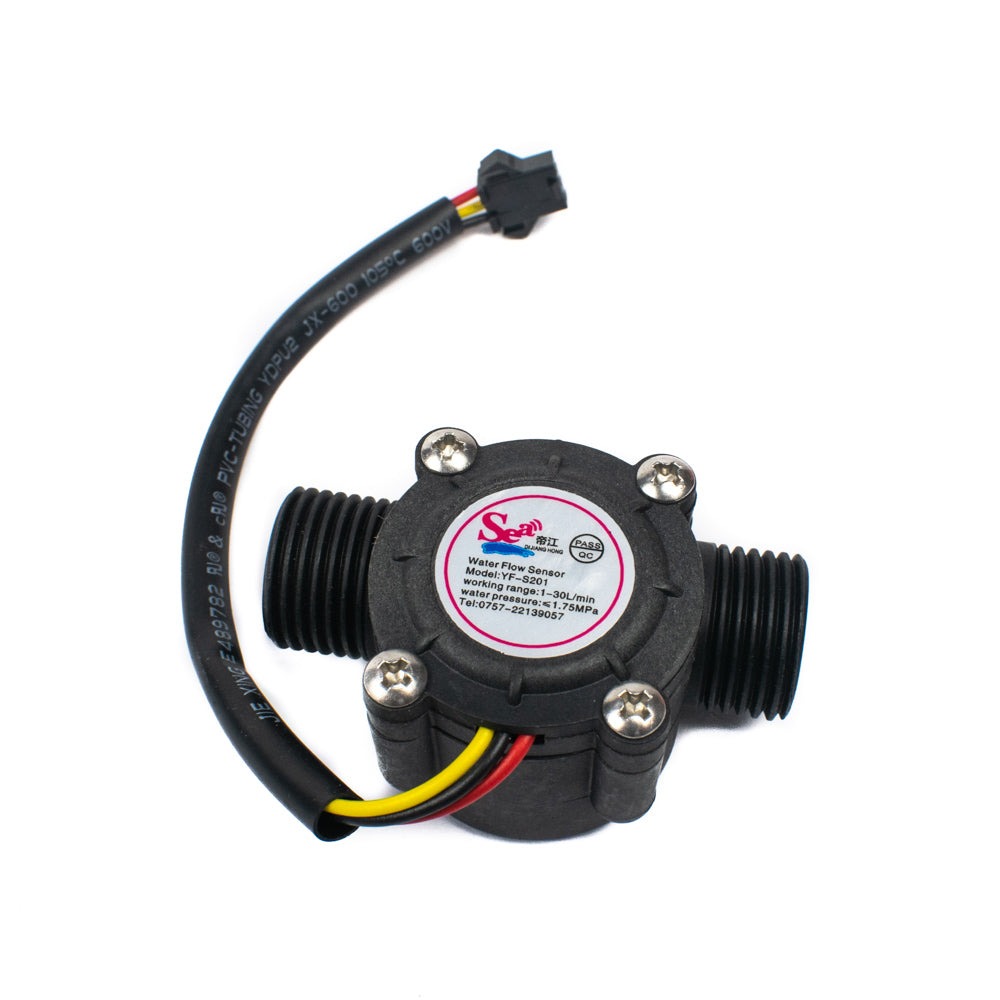

This YF-S201 1/2 inch Water flow sensor consists of a black plastic valve body, a water rotor and a hall effect sensor. 1-30 Litre/min Water can flow through this sensor. This YF-S201 is placed in line with water and its pinwheel sensor detects how much liquid has flowed through it. With every pinwheel revolution magnetic hall effect sensor generate an electrical pulse which is fed to the controller and thus controller is able to detect how much liquid is flowing through the sensor at any point of time. The hall effect sensor is sealed from the liquid pipe and thus remains protected from the water. The Electrical pulse generated by the sensor is approximately equal to 2.25 milliliters. So by counting the number of pulse we can easily calculate the amount of water flowing through the sensor.

Specifications

Type	Flowmeter Control Switch (YF-S201)
Voltage (max)	5V-18V DC
Maximum operating Current	15 mA @ 5VDC
Flow Rate Range	1-30 L/min
Load capacity	≤ 10 mA (DC 5V)
Maximum Water Pressure	2 MPa
Accuracy	±10%
Pulses/Litre	450
Intake/Outlet Diameter	11 mm
Outer Diameter	20 mm
Output Rise/Fall Time	0.4 µsec
Output Duty Cycle	50% +-10%
Dimension(LxWxH)	63x36x35 mm
Country of Origin	China

Working

The YF-S201 comes with three wires: Red/VCC (5V-18V) DC Input, Black/GND and Yellow which is for the Pulse Output. Connect the Red wire with the VCC of your controller, Black with Ground and Yellow wire with any digital pin which can also handle the interrupts. As soon as the liquid start flowing through the sensor, it generates digital pulse proportionally. With the help of counters and interrupts you can measure the liquid flow rate.
