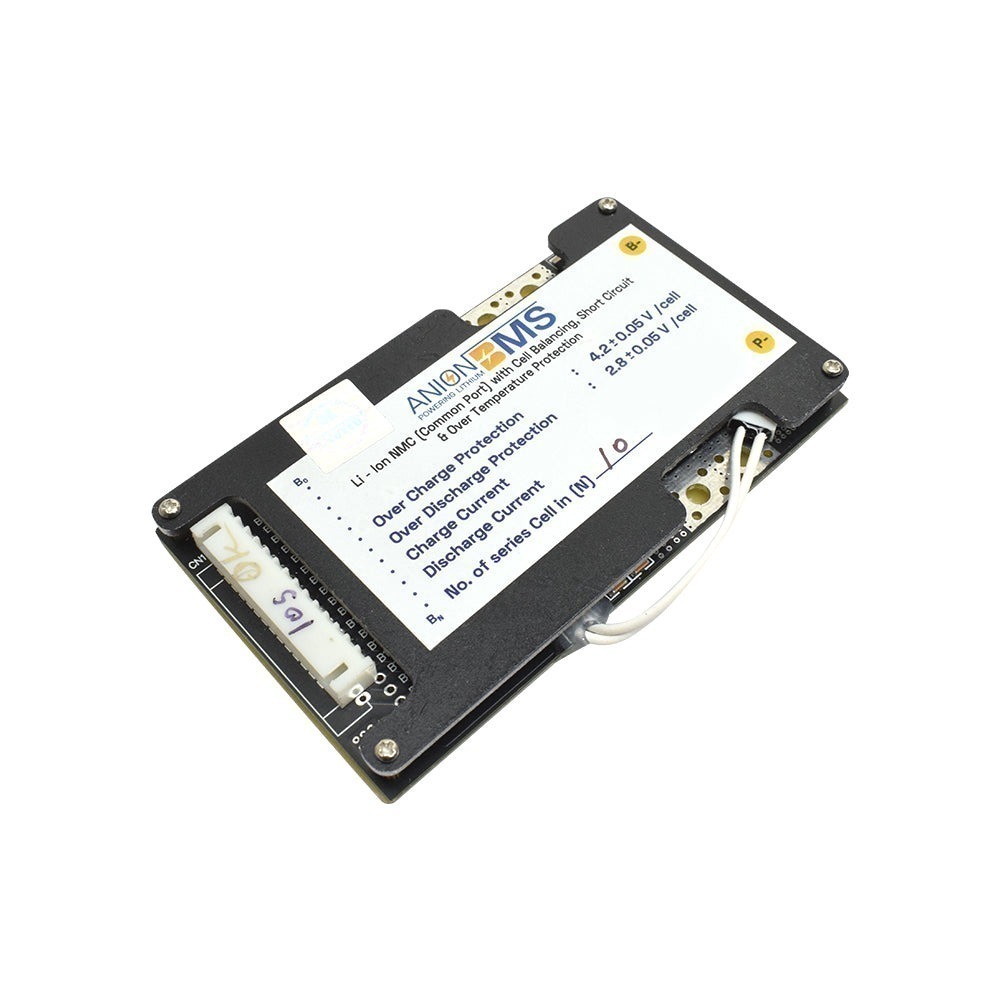

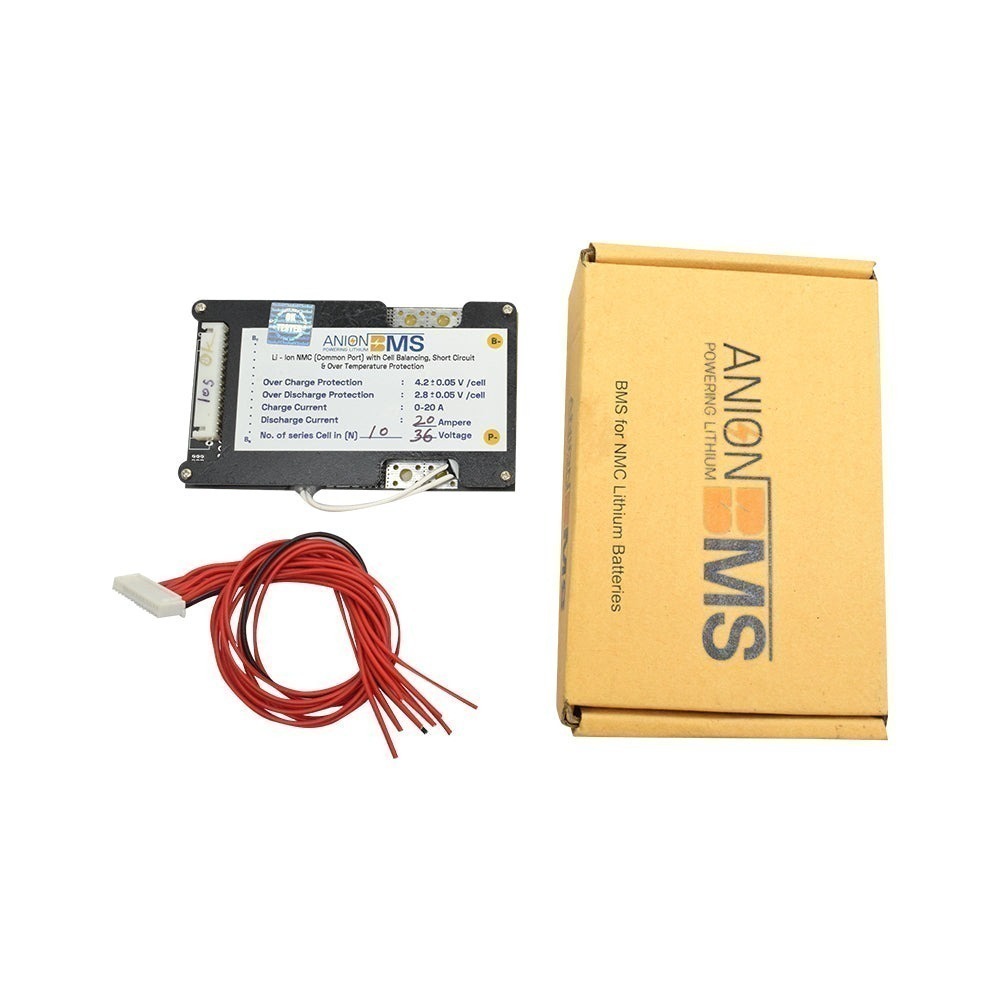

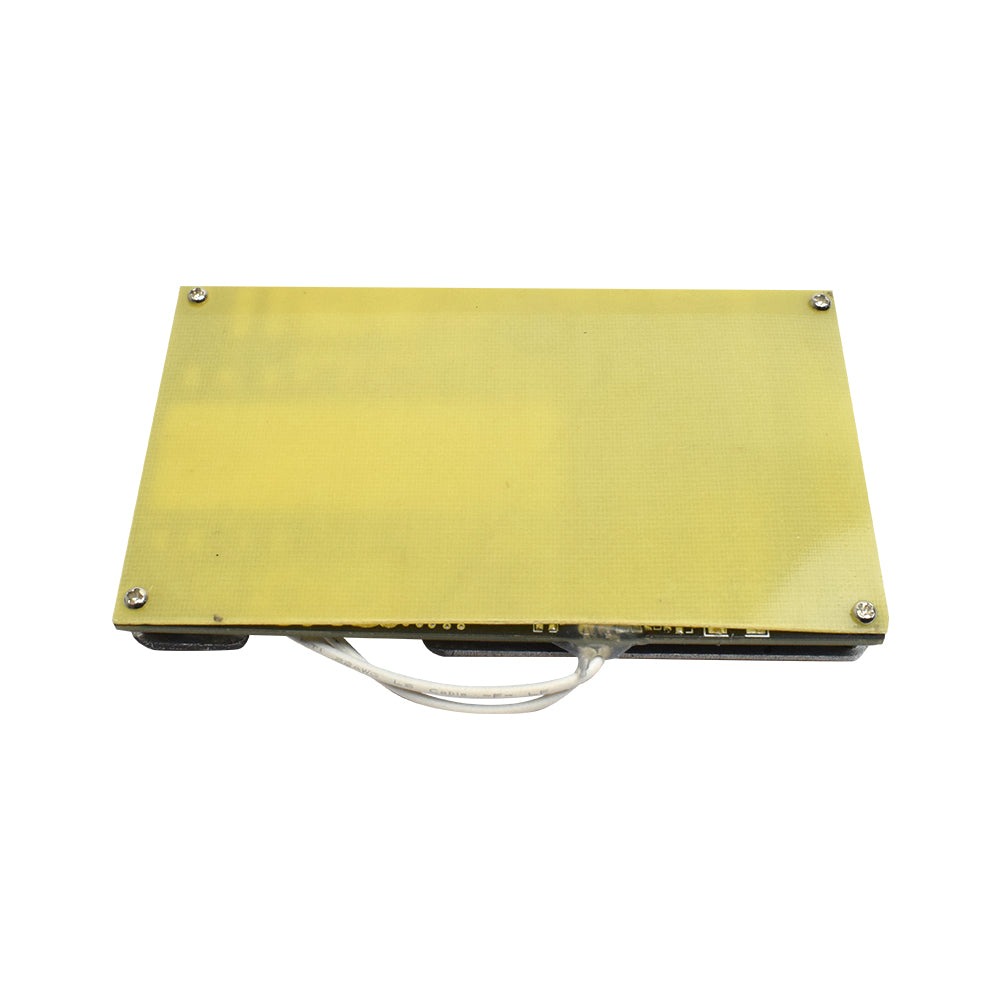

10S 37V 20A Anion BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

Original price was: ₹1,712.54.Current price is: ₹1,381.42. (Including tax)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%1,312.35 (Including tax)
11 - 208%1,270.90 (Including tax)
21 - 4010%1,243.29 (Including tax)
41 - 10012%1,215.66 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

20 People watching this product now!
Description

A BMS or protection board is any electronic control circuit that monitors, manages, and regulates the charging and discharging of any rechargeable battery (cell or combination of cells called a battery). The lithium-ion batteries can be used only in specified conditions called the safe operating area. Therefore BMS is necessary to monitor the battery state, ensure the safety of operation, and ensure long battery life. The battery characteristics to be monitored include its state of charge, safe operating area, voltage, current, temperature, individual cell voltage, battery capacity and many more.

The main task of battery management systems is to ensure the optimal use of the residual energy in a battery. To avoid loading of batteries, BMS protects the battery from:

  • Deep discharge due to highly high discharge current.
  • Over-voltage due to quick charge.
  • Cell balancing in the case of multi-cell batteries by monitoring and regulating the charging and discharging of individual cells.
  • High Temperature
  • Short circuit of external load.

Protection: This BMS offers below mentioned protection of utmost importance.

  • Overcharge Protection
  • Temperature Sensor Protection
  • Over-discharge Protection
  • Electrostatic Protection
  • Overcurrent Protection
  • Dust Prevention
  • Short Circuit Protection
  • Cell Balancing Function

Applications: This protection board is widely used in 18650 Li-ion battery packs and offers multi-scenario applications.

  • Electric tools
  • Electric Vehicle E-Bicycle / E-Scooter/Bike
  • Battery backup systems
  • Solar/Wind energy storage systems, Solar street lamps
Specifications
 Product TypeBattery Management System (BMS)
 BrandAnion BMS
 Variant10S | 37 V
 Overcharge Detect Voltage4.2±0.05 V/Cell
 Over-discharge Detect Voltage2.8±0.05 V/Cell
 Cell BalancingYes, (Passive)
 Short Circuit ProtectionYes
 Temperature Protection70°C
 Charge Current0-20A
 Discharge Current20A
 Size105.8x62x12mm
