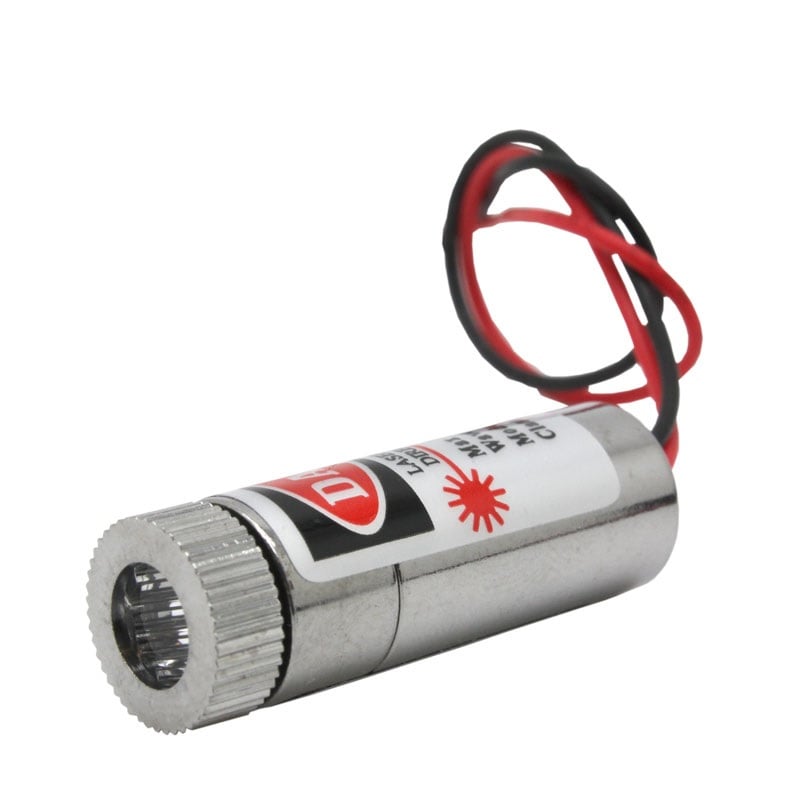

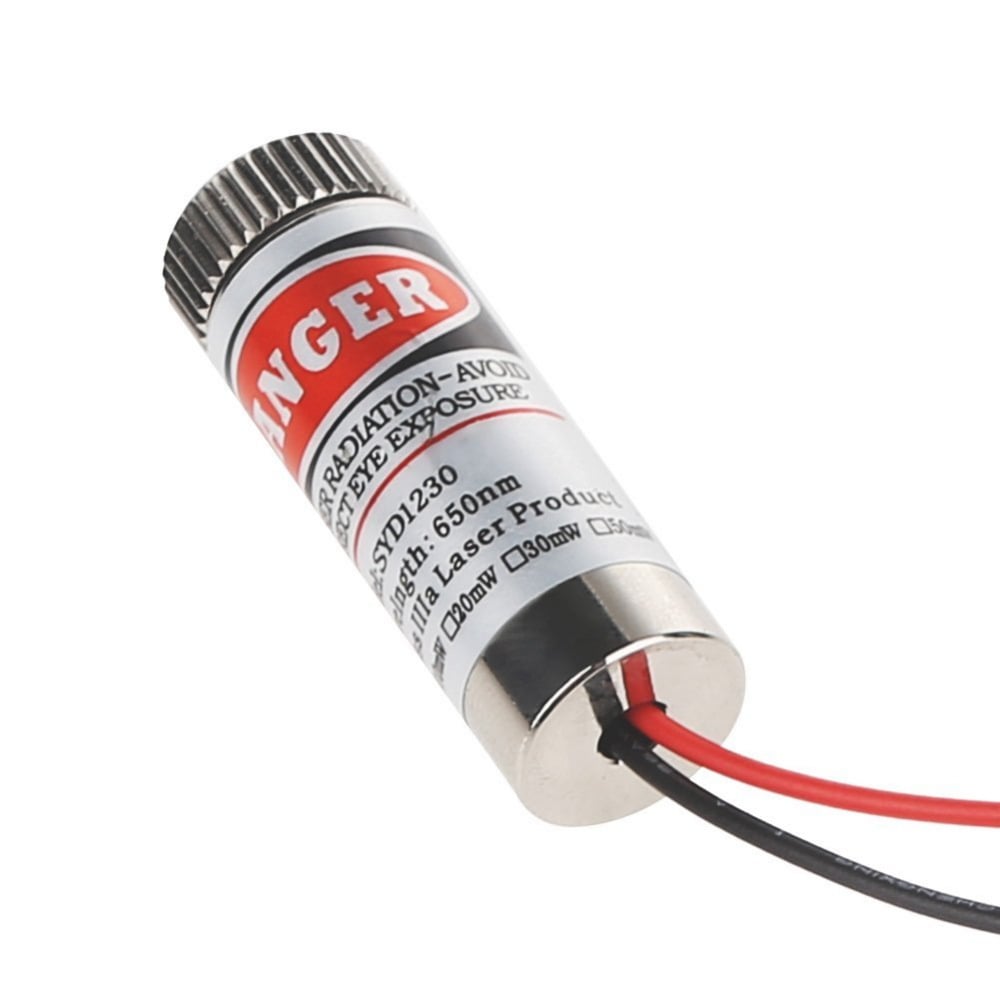

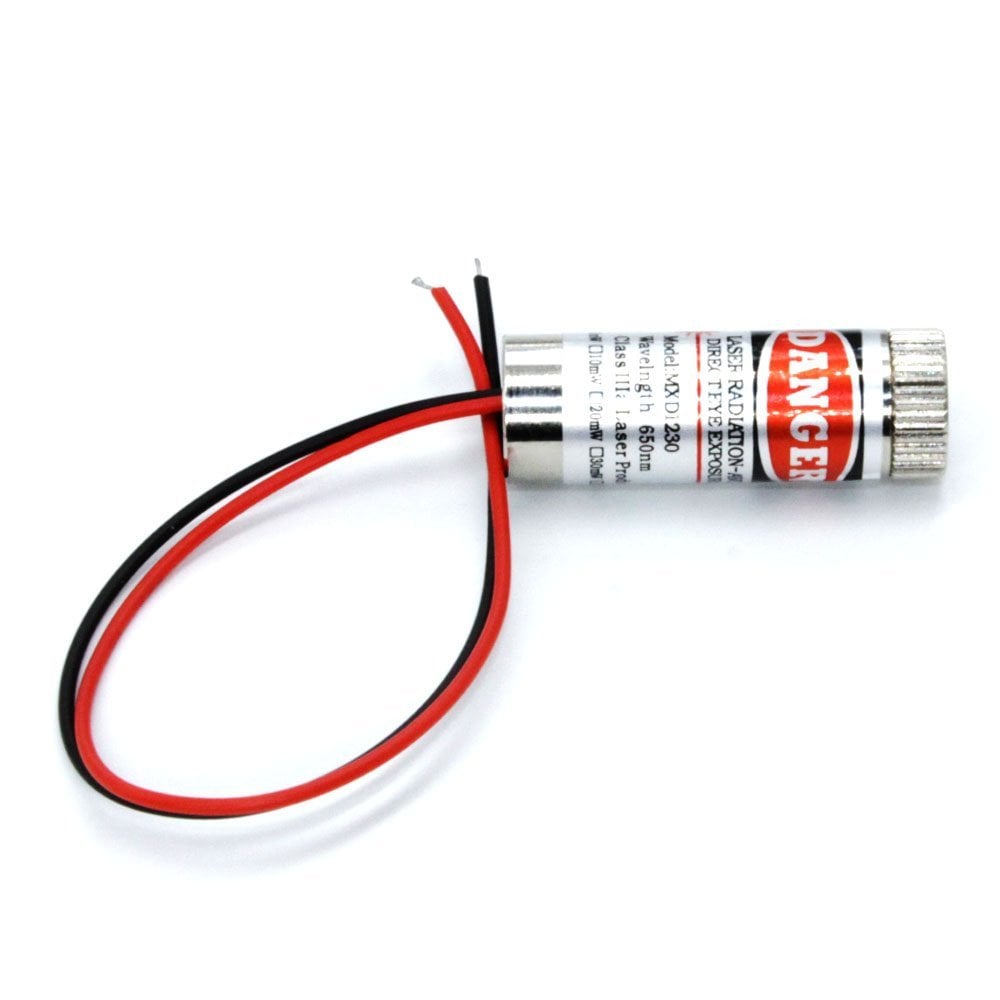

12mm 5mW Red Point Laser Module CHT1230 Point Spot Size Adjustable Laser

₹365.03 (Including tax)

  1. Laser Output Type: Red Point Laser
  2. Weight: 15 gm.
  3. Wavelength: 650nm
  4. Voltage: 3~6V
  5. Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW
  6. Focus point Intensity can be adjusted with help of lens ring head

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%₹346.78 (Including tax)
11 - 208%₹335.82 (Including tax)
21 - 4010%₹328.54 (Including tax)
41 - 10012%₹321.23 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

  • fast delivery Fast Shipping

    Get the Priority Shipping on Prepaid Orders

Prepaid Orders

  • normal shipping Normal Shipping

    Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare
Add to wishlist
17 People watching this product now!
SKU: rz2438601 Category:
Description

This is 12mm 5mW Red Point Laser Module MXD1230 Point Spot Size Adjustable Laser. Easy to install, Durable and portable. laser emission head For Ciclop Scanner 3D printer Components Points Spot Size Adjustable.

It is suitable for 3V-5V 5mW standard, with 6mm outside diameter. It can be used to connect diode tubes for multiple uses.

This Laser diode module is very efficient and useful for your electronic projects. For example, with this product, you can make a laser radiation sensor and with the use of an Arduino development board, you can create your own laser harp. Simply connect power to the red and black wires and you will be lasing in no time.

Note:
  1. It does not emit the RED-Line or Single RED Cross LINE since it is a point laser module.
  2. Please use the DC power supply 3~6V.
  3. Careful! This laser module has high output power, please wear goggles when testing or using as it can be hazardous to your vision.
  4. The laser beam must not be directed towards the eyes of a person or an animal in any way.
  5. The red cord is an anode, the black cord is a cathode.

Features :

  1. Practical test for point head: reflection visible to random target >1000m
  2. Focus point’s Intensity can be adjusted with help of lens ring head

Package Includes :

1 x Red Point Laser Module CHT1230

Additional information
Input Voltage (V)

3V – 6V DC

Input Current (A)

40mA

Wavelength (nm)

650

Output Type

Red POINT

Cable Length (cm)

13

Length (mm)

35

Width (mm)

12 (Body Diameter)

Weight (gm)

14
