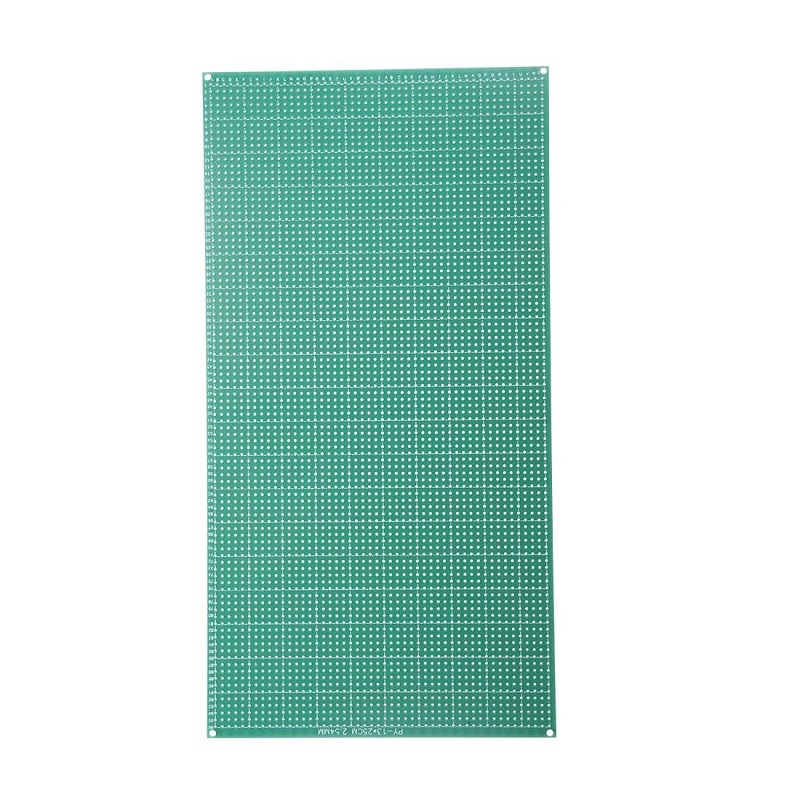

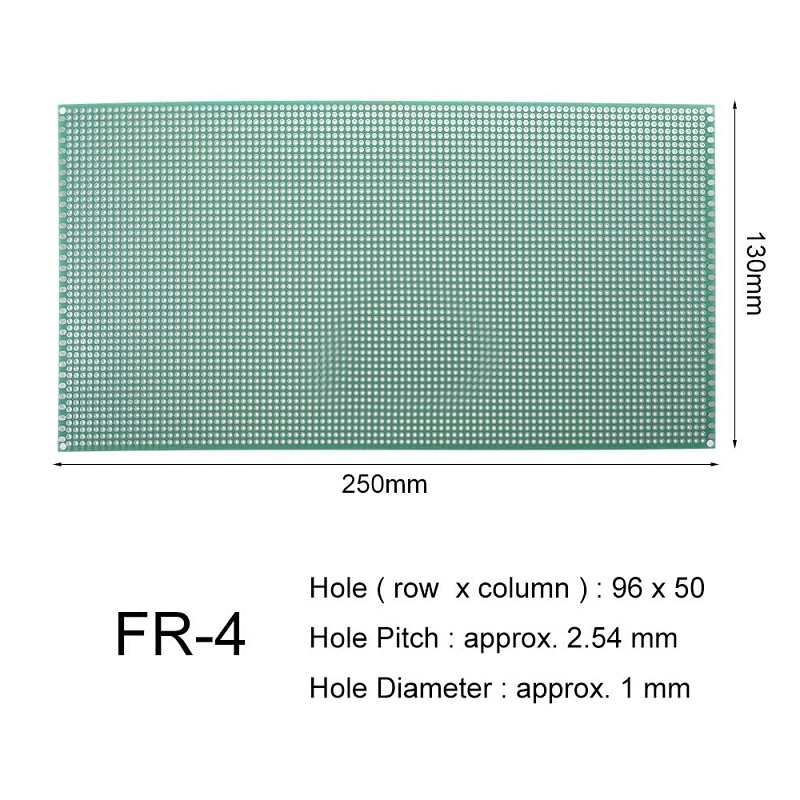

This is a 13 x 25 cm Universal PCB Prototype Board Single-Side High-quality universal prototyping board with standard 2.5mm (0.1 inches) spacing through holes.
High-quality 13 x 25 cm FR4 material, Single-sided, HASL,  CNC drilled.

Note: Product image may vary from the actual product

Features:

1. High quality of base material
2. It has a thickness of the Solder resist layer.
3. copper clad made tolerant as per international Standards

Package Includes :

1 x Universal 13 x 25 cm PCB Prototype Board Single-Sided 2.54mm Hole Pitch

Copper Clad Plate Laminate Single Side PCB is a glass fiber epoxy resin-based PCB with copper foil on one side.

The epoxy glass fiber forms the substrate on which the copper foil is hot pressed only on one side and the other side remains bare.  It has a copper core for strength and the substrate acts as electrical insulation.

The PCB is ideal for prototyping and experimenting.

This PCB can almost be seen in electronic equipment like electronic watches, calculator, computers, communication electronic equipment, military weapon system, etc. As long as there are integrated circuits and other electronic devices, electrical interconnection between them will require the use of this type of PCB.

Note:

1. The PCB may have scratches as it is cleaned before shipping.
2. The product dimensions may vary from the images.

Features:

1. Foil: Copper.
2. Ideal for prototyping.

Package Included:

1 x Copper Clad Laminate Single Side PCB.

This is XF-25 Ultra Mini Multi-color Block Building breadboard. Its advantages are definitely not inferior to previous conventional bread board’s. It can save more materials than the previous breadboard and is environmental protection with its small figure. You can assemble the breadboards independently according to the needs of the circuit plate size in the experiment. The using principle is the same as a previous old breadboard.

The Block Building Breadboard measures 1.5x2cm. It uses the Base Plate For Block Building Breadboard.

There are (5 x 5) 25 tie points in each small Peace of breadboard block and 2 small patch-holes in the back.  The 2 small Patch-holes are in order to make the Block Building Breadboard fixed on the Base Plate For Block Building Breadboard. The base plate can hold a maximum (6×6) 36 small building block if fitted side by side

You can put different colours of the Block Building Breadboards on one Base Plate For Block Building Breadboard. Then put different components on these breadboards. That would make your experiment teaching quite clear.

Explore the Category for Different colour varient and complete combo kit with base plate

Features:

1. 1 Terminal Strip, Tie-point 25
2.  ABS plastic Material and Good Contact points
3. Completely Reusable Flexible Structure
4. Accepts a variety of wire sizes (29-20 AWG)
5. 32 modular mini breadboard are pluggable in one piece of plate
6. Accept transistors, diodes, LEDs, resistors, capacitors and virtually all types of components
7. Make the model as you wish with the colourful breadboards.
8. ZY-25 has many types of colour, in the experiment, you can put the capacitor in the green breadboard, put the resistor in the red breadboard, and so one, by doing this, it will make the education clearly do electronic experiments.
9. Compared with the ordinary breadboard, ZY-25 looks more mini. But please don’t look at its small body, which has many advantages. First, ZY-25 saves a lot material, environment protecting. Second, you can choose the quantity of breadboard according to the need in the experiment you do

Package Includes:

1 x XF-25 Ultra Mini Breadboard Red- 2PCS

This is a 6 x 8 cm Universal PCB Prototype Board Single-Side High-quality universal prototyping board with standard 2.5mm (0.1 inches) spacing through holes.
High-quality 6 x 8 cm FR4 material, Single-sided, HASL, CNC drilled.

Package Includes :

1 x Universal 6 x 8 cm PCB Prototype Board Single-Sided 2.54mm Hole Pitch

This is a 7 x 9 cm Universal PCB Prototype Board Single-Side High-quality universal prototyping board with standard 2.5mm (0.1 inches) spacing through holes.
High-quality 7 x 9 cm FR4 material, Single-sided, HASL,  CNC drilled.

Features:

1. High quality of base material
2. It has a thickness of the Solder resist layer.
3. Copper clad made tolerant as per international Standards

Package Includes :

1 x Universal 7 x 9 cm PCB Prototype Board Single-Sided 2.54mm Hole Pitch

Copper Clad Plate Laminate Single Side PCB is a glass fiber epoxy resin-based PCB with copper foil on one side.

The epoxy glass fiber forms the substrate on which the copper foil is hot pressed only on one side and the other side remains bare.  It has a copper core for strength and the substrate acts as electrical insulation.

The PCB is ideal for prototyping and experimenting.

This PCB can almost be seen in electronic equipment like electronic watches, calculator, computers, communication electronic equipment, military weapon system, etc. As long as there are integrated circuits and other electronic devices, electrical interconnection between them will require the use of this type of PCB.

Note:

1. The PCB may have scratches as it is cleaned before shipping.
2. The product dimensions may vary from the images.

Features:

1. Foil: Copper.
2. Ideal for prototyping.

Package Included:

1 x Copper Clad Laminate Single Side PCB.
