Description

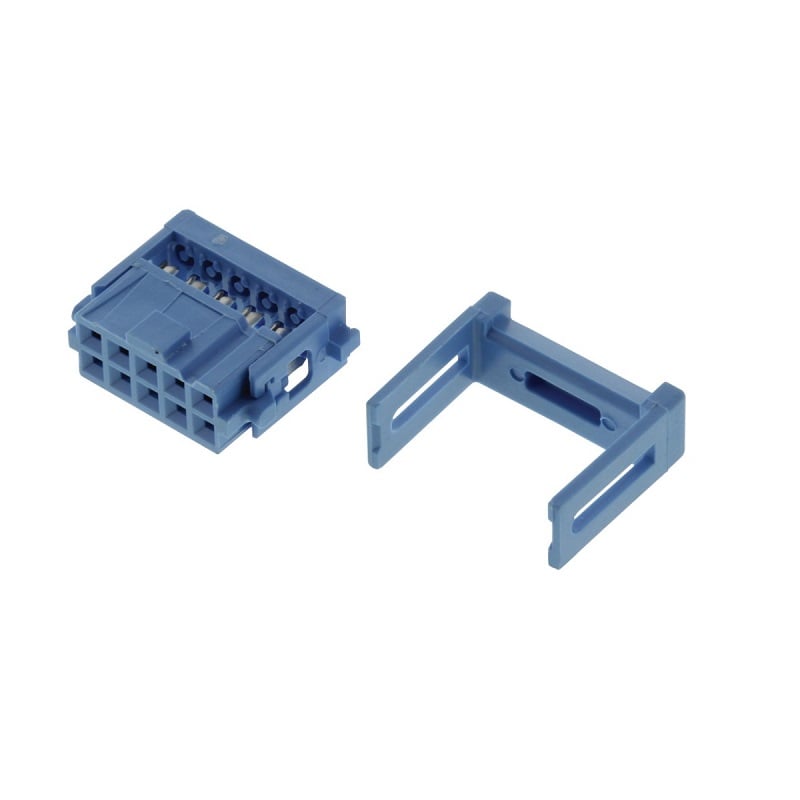

The 1658526-5 is a 10-way 2-row Female Ribbon Cable Socket with gold-plated beryllium copper contacts and IDC/IDT termination. This 609 series connector comes with blue glass-filled thermoplastic housing and accepts 30 to 28AWG solid or stranded, PVC insulated ribbon cable.

Features:

1. Military and centre polarization
2. UL94V-0 Flammability rating
3. 1A Current rating
4. >1 x 10⁹R at 500VDC Insulation resistance
5. -55 to 125°C Operating temperature range

Specifications:

1. IDC Connector Type: IDC Receptacle
2. Contact Gender: Female
3. Pitch Spacing: 2.54mm
4. No. of Rows: 2 Row
5. No. of Contacts: 10Contacts
6. Connector Mounting: Cable Mount
7. Contact Material: Beryllium Copper
8. Contact Plating: Gold Plated Contacts
9. Product Range: 609 Series

Package Includes:

1 x 1658526-5-SOCKET, IDC, 10WAY
