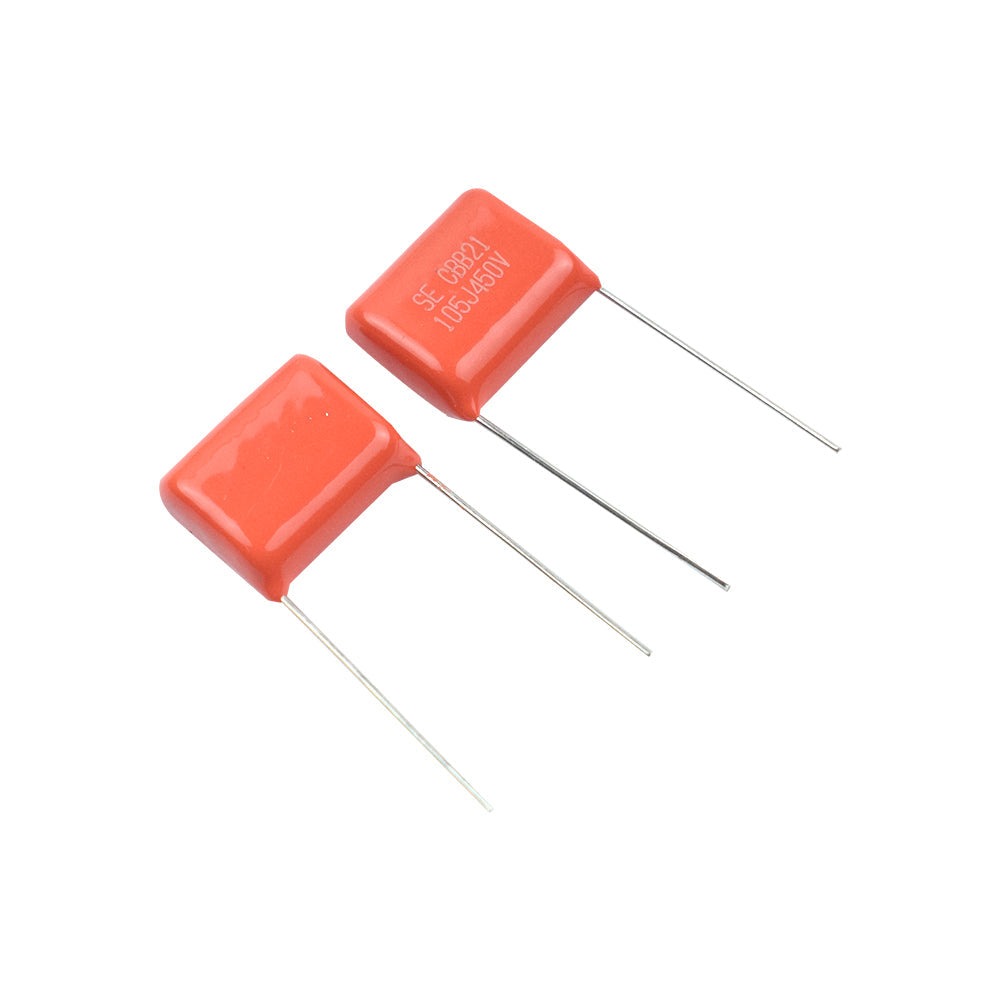

1uF 105J 450V Polyester Film Capacitor

0 Reviews
Out of stock

Original price was: ₹3.86.Current price is: ₹3.13. (Including tax)

(-19%)

Discount per Bulk Quantity

QuantityDiscountPrice
5 - 105%2.97 (Including tax)
11 - 2010%2.82 (Including tax)
21 - 4015%2.66 (Including tax)
41 - 10020%2.50 (Including tax)
  • Estimated delivery time 2-4 days
  • (Subject to stock Availability)

Product details

The 1uF 450V Polyester Film Capacitor is made of two metal plates with the polyester film sandwiched between them, or the insulator might be covered with a metalized film.
Polyester is the most widely utilized dielectric material in this capacitor, allowing the capacitor’s construction to be simplified. These capacitors are pretty inexpensive and have excellent self-healing properties.

The dielectric & construction of polyester PET capacitors are used in different applications wherever sharp; spikes of quick rise time are there when they contain high dV/dt.

Applications

  • This capacitor is used where maximum levels of peak current need to handle
  • Used in different low-frequency pulsating & DC circuits
  • Used for filtering wherever high levels of tolerance are not necessary.
  • Used in the applications of coupling, decoupling & blocking of DC
  • Used in power supplies wherever the levels of the highly high capacitance of electrolytic capacitors are not required.
Specification
Model CBB21 105J/450V
Capacitor Value 1uF
 Rated Voltage 450V
Tolerance ±5%
Mounting Type Through Hole
Type Polyester Film Capacitor
Pitch 15mm
Capacitor Dimension (L*W*D) 16x7x14mm
Quantity 50Pcs
Country of Origin China
