2 Channel Relay Module, 30A with Optocoupler, Isolation 24V Supports, High and Low Triger

SKU: 1121233
In Stock

468.00

  1. Supply Voltage: DC 24V
  2. Quiescent Current: 5mA
  3. Maximum Operating Current: 190mA
  4. Trigger Mode: High and low-level trigger
  5. Load Voltage: DC 30V / AC 250
  6. Load Current: 30A
  7. Relay Life: more than 100,000 times
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

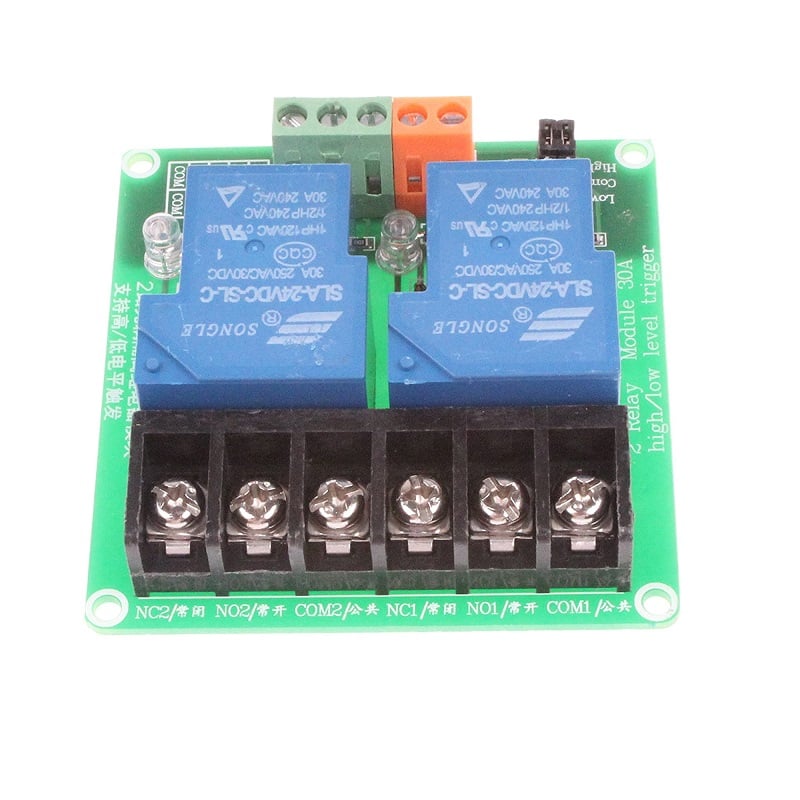

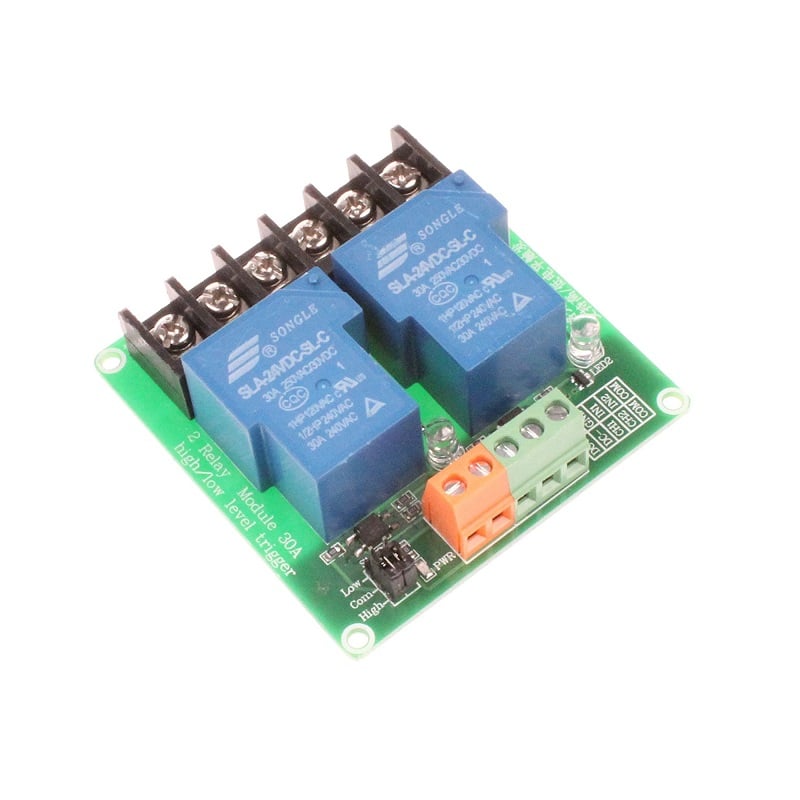

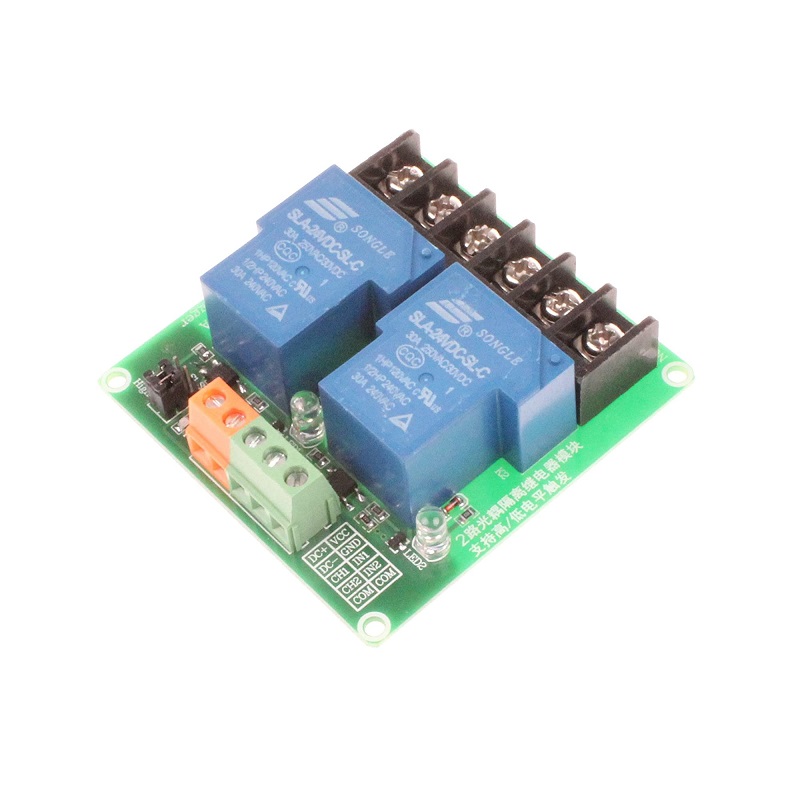

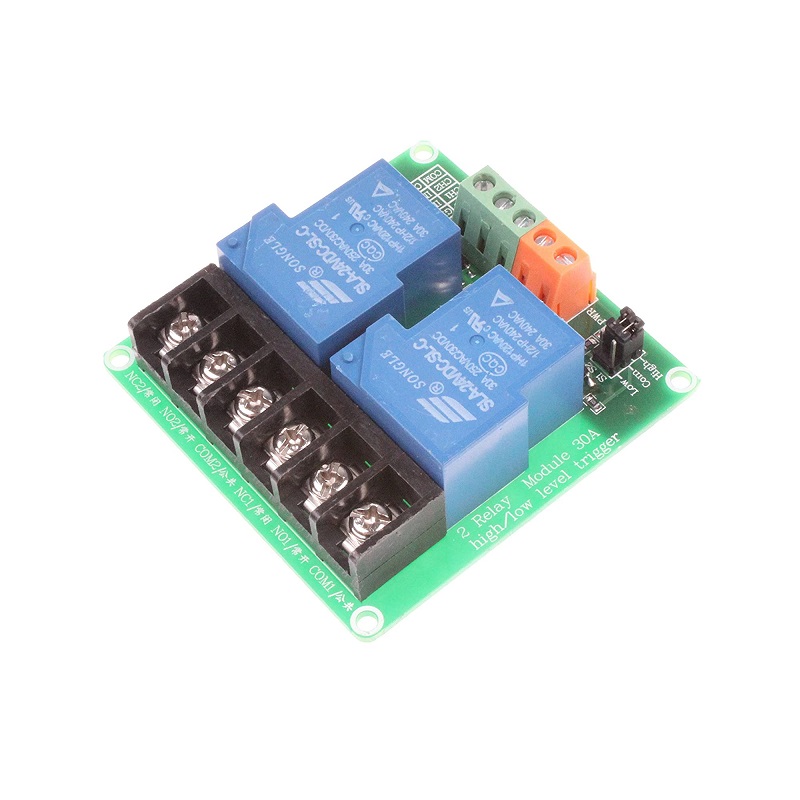

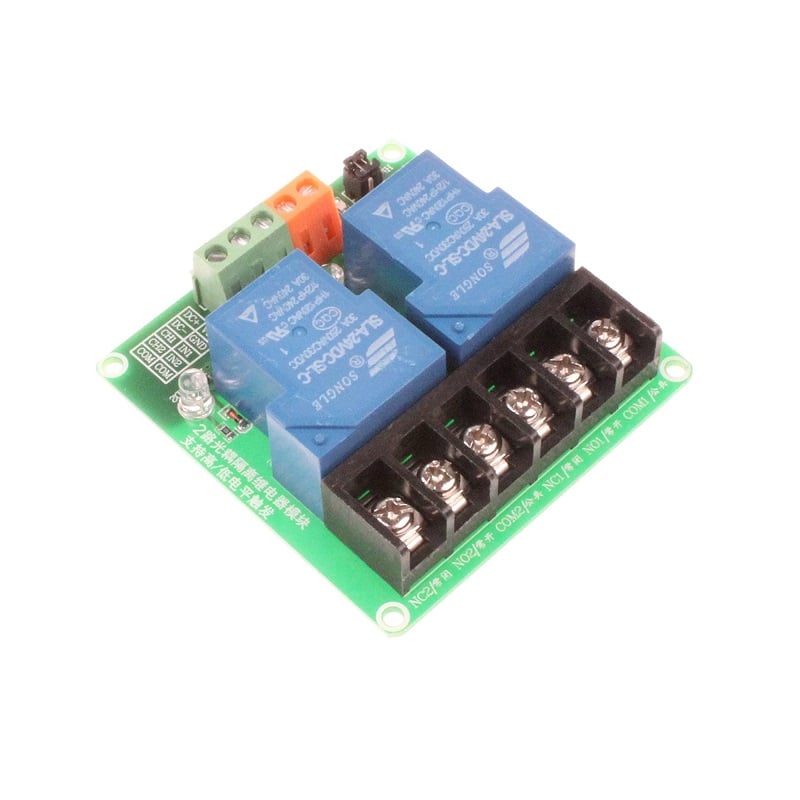

This is a 2-Channel Relay Module High/Low-Level Triggering Optocoupler Isolation Load 30A DC 24V / AC 250V for PLC Automation. It uses a high-power relay, the maximum control load DC 24V 30A / AC 250V 30A. In line with international safety standards, the control area and the load area with isolation slot. It comes with each optocoupler isolation, anti-interference ability.


Features:

  1. Using high-power relay, the maximum control load DC 24V 30A / AC 250V 30A;
  2. With each optocoupler isolation, anti-interference ability.
  3. In line with international safety standards, the control area and the load area with isolation slot.
  4. Each channel has a relay on the LED indication.
  5. Product Applications: PLC automation equipment control, industrial system control, logistics network control, home intelligent product control, electronic enthusiasts to develop experiments, all kinds of circuit modification.

Specification:

  1. Supply Voltage: DC 24V
  2. Quiescent Current: 5mA
  3. Maximum Operating Current: 190mA
  4. Trigger Mode: High and low-level trigger
  5. Load Voltage: DC 30V / AC250
  6. Load Current: 30A
  7. Relay Life: more than 100,000 times

Package Includes:
