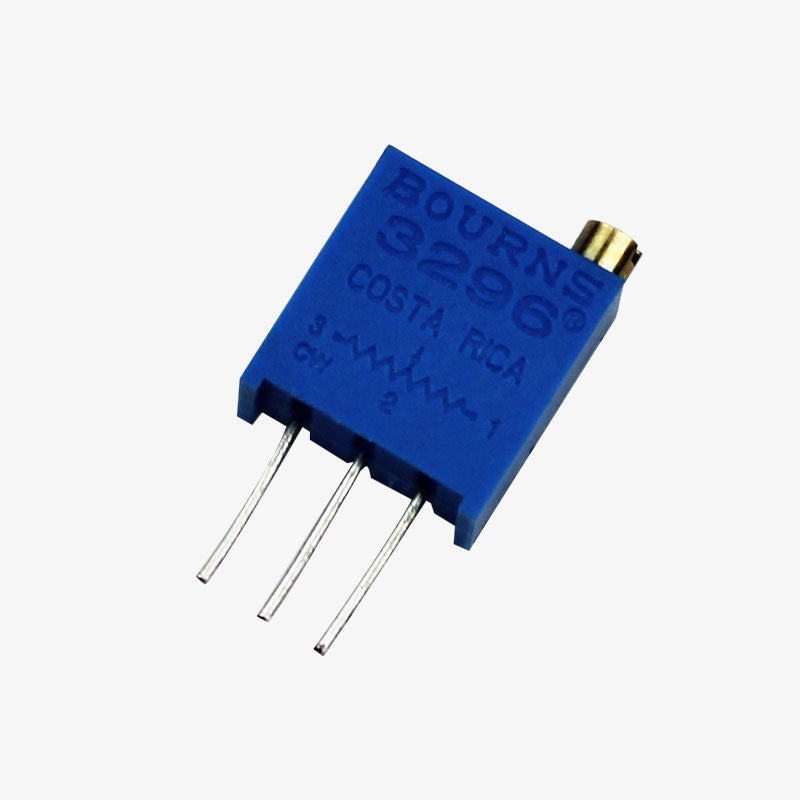

20K Ohm 0.5W (203) Multiturn Variable Resistor Trimpot Trimmer

20K Ohm 0.5W (203) Multiturn Variable Resistor Trimpot Trimmer

Name: 20K Ohm 0.5W (203) Multiturn Variable Resistor Trimpot Trimmer - Robozar
Brand: Robozar
SKU: rz24331893
Price: 10.35 INR
Availability: OutOfStock
Rating: 5.00 (2 reviews)

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

₹12.21 (Including tax)

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹11.59 (Including tax)
11 - 20	8%	₹11.24 (Including tax)
21 - 40	10%	₹11.00 (Including tax)
41 - 100	12%	₹10.75 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

14 People watching this product now!

SKU: rz24331893 Categories: All Products, Components, Featured Products, Latest Products Tags: [C] Potentiometer, M_Low_Value, Multiturn Trimpot, POT, Potentiometer, Rotary Potentiometer, Trimpot, Variable Resistor

Description

Trimpot is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated.

For higher adjustment resolutions, multi-turn trimpots are used. The amount of turns varies between roughly 5-25, but 5, 12 or 25 turns are quite common. They are often constructed using a worm-gear (rotary track) or lead screw (linear track) mechanism to achieve the high resolution. Because of their more complex construction and manufacturing, they are more costly than single turn preset resistors. The lead screw packages can have a higher power rating because of their increased surface area.

The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.

Specifications:

Package: 3296
Resistance: 20K ohm
Resistance Tolerance: ± 10%
Temperature Coefficient: ± 50ppm/°C
Potentiometer Mounting: Through Hole
Adjustment Type: Top
Contact Resistance Variation: ±1%
Lead Diameter: 0.5mm
Operating Temperature Range: -55°C to +125°C

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.

Package Includes:

1 pc of 20K Ohm 0.5W (203) Multiturn Variable Resistor Trimpot Trimmer.
