Product details

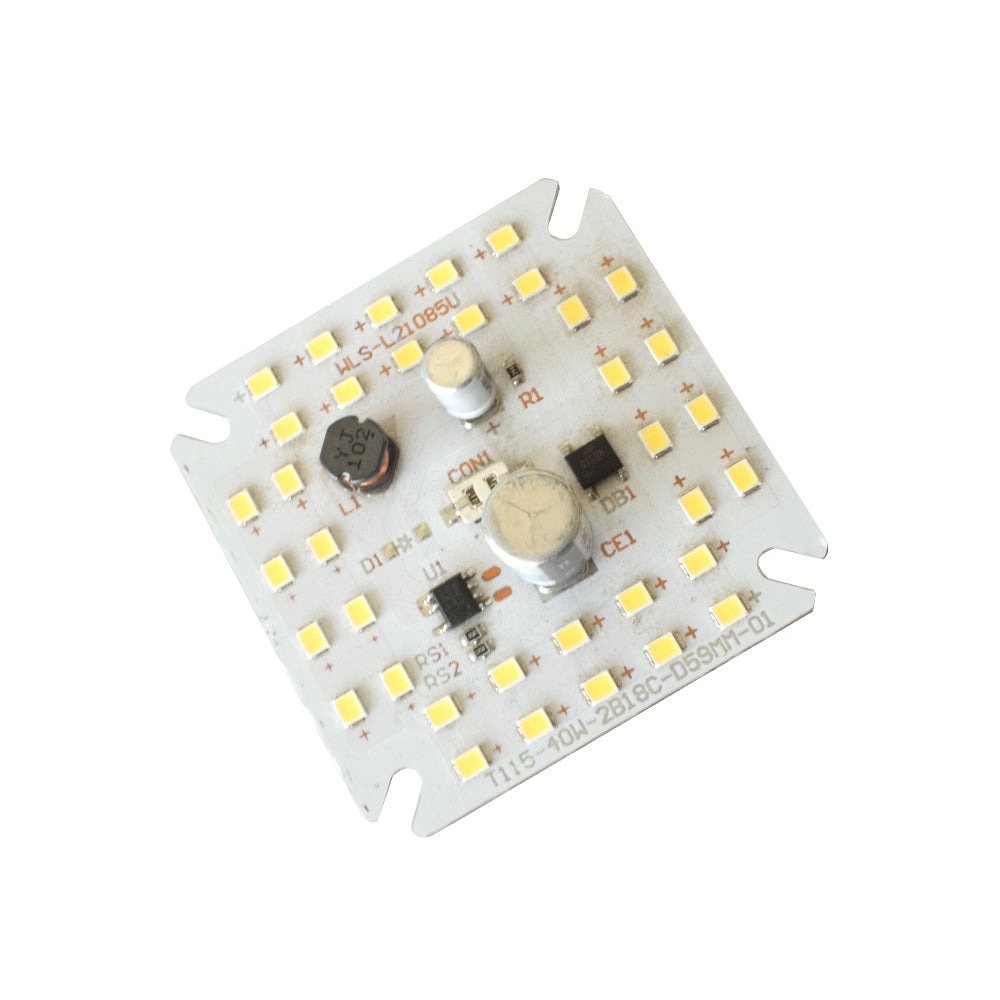

This is a 220V DOB LED PCB; this PCB has two main IC, which are used to drive the full LEDs and one another IC, known as a bridge rectifier. ABS10 IC is a Bridge rectifier used to rectify the AC input signal into DC Signal. This IC has four pins, and the polarity has marked on it. This PCB’s operating voltage is 220V AC power supply. BP2851 is a non-isolated step-down LED driver IC. It’s 8SOP, but the no of pins has seven used to drive the LED. It has two capacitor 400V 10uF, 400V 1uF. It has a YJ102 inductor.
Applications:
- Its mainly used in decorative products
- It’s used in home decor LEDs
- Headlight
- Street lights
Features:
- Direct AC Source
- It has a total of 40 LED
- It does not need any external driver circuit
- It has an inbuilt driver IC
Specifications:
| Model | L21085U |
| Type | DOB LED PCB |
| Input Voltage | 220VAC |
| No of LEDs | 40 |
| Colour | White |
| Dimensions | 59mmx59mmx17mm |
| Power | 40W |
| Power Source | AC |
| Connection Point | Line and Neutral |
| No. of Connecting Point | 02 |
| Country of Origin | China |
