Product details

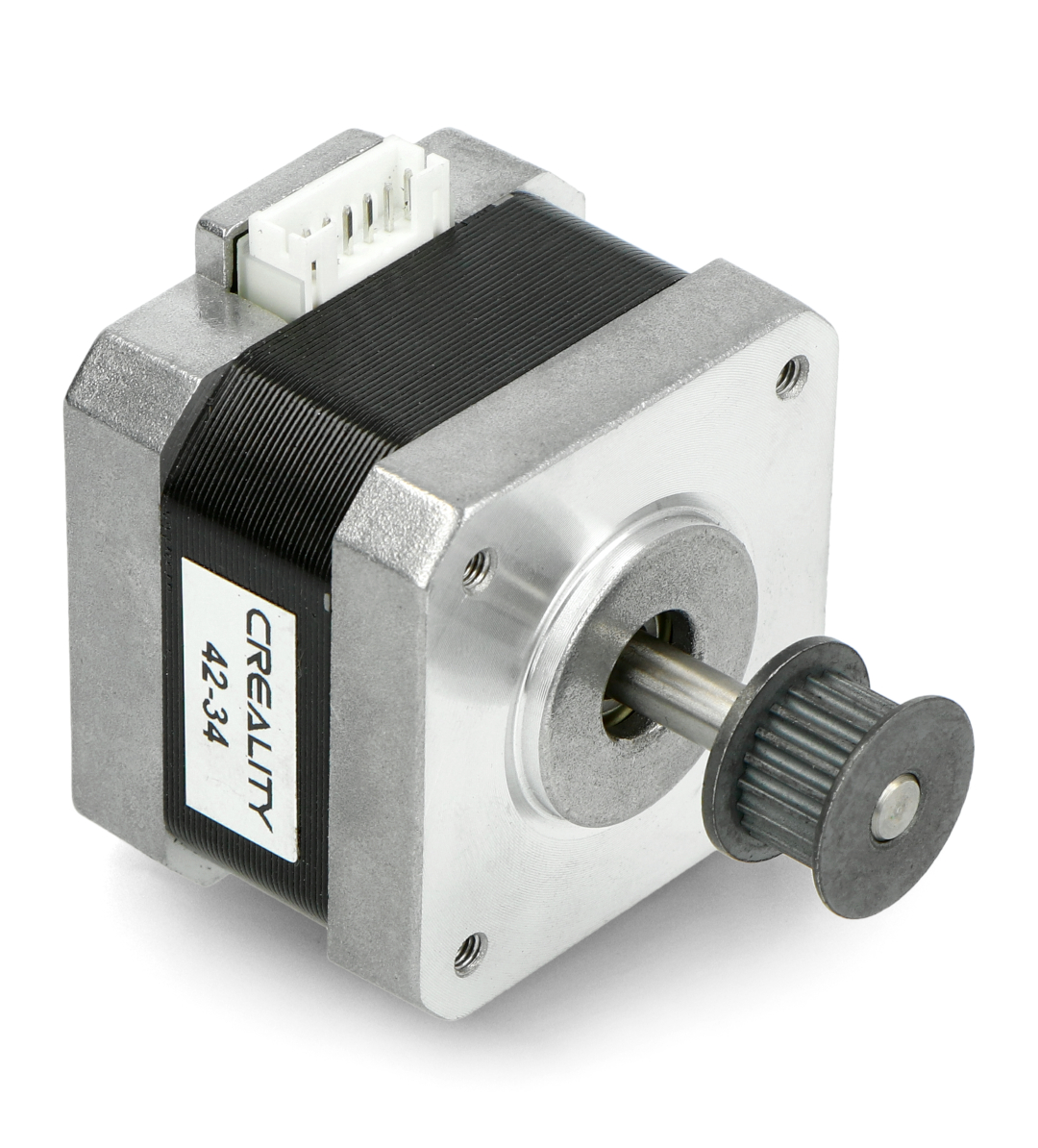

Creality 3D 42-34 Stepper Motor with Timing pulley is Adopting high-quality motor steel material for 3D printers. This stepper motor is provided with high torque, low self-inductance reactance, is responsive, and can avoid system error.
NOTE: The timing pulley is fixed and can not be removed.
Specifications and Features:
- Compatible to Printer: CR-20 Pro and Ender Series
- Step Angle: 1.8
- Steps: 200
- Nominal Voltage: 4.83V
- Holding Torque: 4kg.cm
- Rated Voltage: 4.8Volt
- Rated Current: 1.5A/Phase
- Form Factor: NEMA 17
- Rated speed: 1-1000rpm
- Rated torque: 0.4NM
- Ambient Temperature: -20 – 50℃
- Length: 34mm
- Shaft length: 20mm
Package Includes:
1 x Creality 3D 42-34 Stepper Motor with Timing pulley
