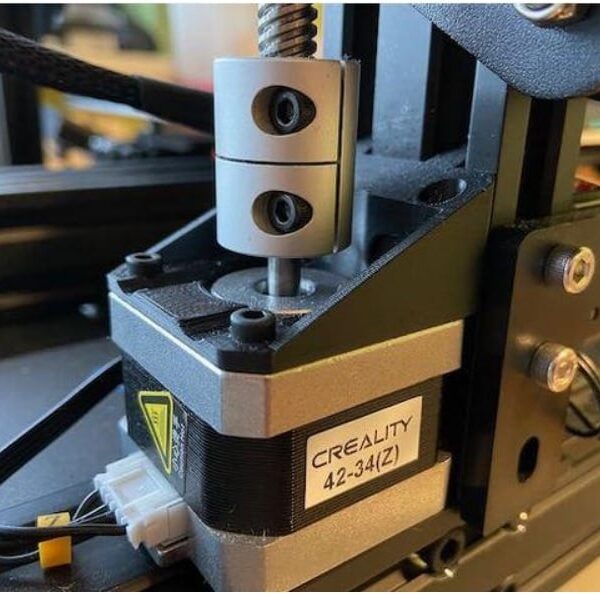

Z Axis Stepper Motor Kit

The Stepper Motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The Nema17 1.6kgcm Stepper motor can provide 1.6 kg-cm of torque at 0.31A current per phase.

The motor’s position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The Nema17 1.6kgcm Stepper motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.

They are very useful in the various application especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc.

It is a brushless DC motor, so the life of this motor is dependent upon life of the bearings. The position control is achieved by a simple Open Loop control mechanism which doesn’t require complex electronic control circuitry.

The motor’s shaft has been machined for good grip with a pulley, drive gear etc. and especially avoiding stall or slip.

We are engaged in supplying and wholesaling a quality approved collection of Stepper Motors which are highly acknowledged and accepted for long service life and high reliability. To explore more of them click below,

Stepper Motors

Note :

1. Stepper motor dimensions and weight may have  ±2% error.
2. Resonances can occur because of improper installment.
3.  Not easy to operate at extremely high speeds.
4. 6 wire Stepper motors can also be used as 4 wire stepper motor, you can refer the attached video for your reference.

Features :

1. Input pulse decides the rotation angle of the motor.
2. High accuracy of around 3 to 5% a step.
3. Provides good starting, stopping and reversing.
4. Control of this motor is less costly because of the exclusion of complex control circuitry.
5. The speed is proportional to the frequency of the input pulses.

Specifications:

1. Brand: Creality 3D
2. Product : RepRap 42 Stepper Motor
3. Product number: 42-34
4. Step angle: 1.8 degrees
5. Nominal Voltage: 4.83V
6. Current Rating: 1.5 (A)
7. Rated speed: 1-1000 (rpm)
8. Rated torque: 0.4 (NM)
9. Ambient Temperatuar: -20℃~+50℃
10. Length: 34mm
11. Application: 3D printer

Shaft Coupler :

1. Length: 26mm
2. External diameter: 20mm
3. Top Shaft Diameter: 5mm
4. Flexible Shaft Couplers: 5mm*8mm
5. Material: Aluminum Alloy

Package Includes :

1 x Z Axis Stepper Motor Kit
