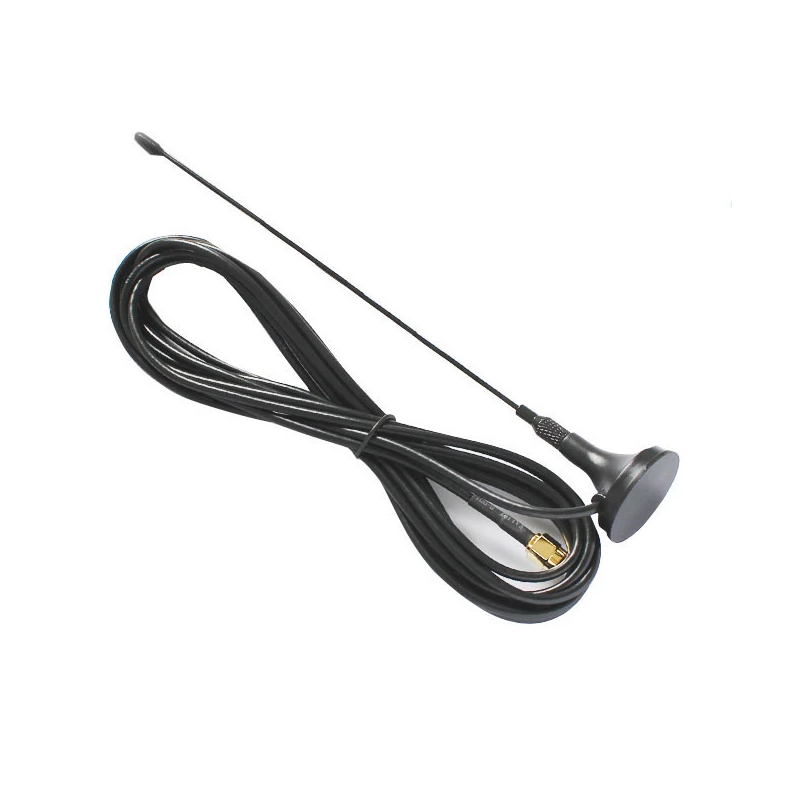

Head Sucker 433 MHz antenna TX433-XPA100 GSM Antenna comes with a 1-meter feeder cable. The Antenna base equips a magnetic base to make it easy to place your antenna anywhere at your convenience.
1 x 433 MHz antenna TX433-XPA100
| Model |
TX433-XPA100 |
|---|---|
| Frequency Range |
433 MHz |
| Impedance (Ω) |
50 |
| Antenna Gain |
3dBi |
| Maximum Power (W) |
5 |
| Antenna Length (mm) |
180 |
| Cable Length (cm) |
100 |
| Connector |
SMA-J male rotatable |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
| Model No. |
LWC-2400-RD-RA-SMA-PLUG-02 |
|---|---|
| Antenna Gain |
2dBi |
| Frequency (MHz) |
2400 – 2483 MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 2.0 |
| Polarization |
Vertical |
| Power Handling (W) |
5 |
| HPBW |
H: 3600 ; V: 400 |
| Connector |
SMA (M) |
| Housing Material |
ABS / Black |
| Operating humidity |
5 – 75% |
| Operating Temperature (°C) |
-300 to 600 C |
| Weight (g) |
<10g |
| Product Dimensions |
55 x 10mm |
| Application |
WiFi ,Bluetooth/ Zigbee ,5G ,ISM |
Out of stock
| Model No. |
LWC-433-MM-03 (3.0M) |
|---|---|
| Antenna Gain |
3 dBi |
| Frequency (MHz) |
433 MHz + 10MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 2.0 |
| Polarization |
Linear |
| Power Handling (W) |
10 |
| HPBW |
H: 3600 ; V: 300 |
| Connector |
SMA Plug |
| Housing Material |
Aluminium Powder Coated |
| Cable Type |
RG174 ,3.0m |
| Cable Length (Meter) |
3M |
| Operating humidity |
5 – 75% |
| Operating Temperature (°C) |
-30 to 60 C |
| Weight (g) |
< 60g |
| Product Dimensions |
200 x Φ32 mm |
| Application |
Sub GHz ,Smart Meters ,LoRa ,LPR |
Out of stock
| Model No. |
LWC-4G-RD-RA-SMA-PLUG-02 |
|---|---|
| Antenna Gain |
1.2 / 2 dBi |
| Frequency (MHz) |
698-960MHz & 1710-2690 MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 2.0 |
| Polarization |
Vertical |
| Power Handling (W) |
10 |
| HPBW |
H: 360° ; V: 40° |
| Connector |
SMA Plug |
| Housing Material |
Plastic / Black |
| Operating humidity |
5 – 75% |
| Operating Temperature (°C) |
-300 to 600 C |
| Weight (g) |
<10g |
| Product Dimensions |
50 x 10g |
| Application |
GSM ,4G ,3G. |
Out of stock
| Model No. |
LWC-GSM-MM-03 (STUB 3.0M) |
|---|---|
| Antenna Gain |
3 dBi |
| Frequency (MHz) |
824 – 960 MHz & 1710 – 1980 MHz |
| Impedance (Ω) |
50 |
| VSWR |
<2.2 |
| Polarization |
Linear |
| Power Handling (W) |
10 |
| HPBW |
H: 360°; V: 30°/ 40° |
| Housing Material |
Carbon Steel Powder Coated |
| Operating humidity |
5 – 75% |
| Cable Type |
RG174/ 3.0m |
| Cable Length (Meter) |
3M |
| Operating Temperature (°C) |
-30° to 60° C |
| Connector |
SMA-Plug |
| Weight (g) |
< 75g |
| Product Dimensions |
110 x Φ32mm |
| Application |
GSM ,2G |
Out of stock
| Model No. |
LWC-GSM-MM-03 (0.5M) |
|---|---|
| Antenna Gain |
2 / 3 dBi |
| Frequency (MHz) |
824 – 960 MHz & 1710 – 2170 MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 2 |
| Polarization |
Linear |
| Power Handling (W) |
10 |
| HPBW |
H: 65°; V: 65° |
| Housing Material |
Carbon Steel Powder Coated |
| Cable Type |
RG174 ,0.5m |
| Cable Length (cm) |
47 |
| Operating humidity |
5 – 75% |
| Operating Temperature (°C) |
-40° to 85° C |
| Weight (g) |
35 |
| Product Dimensions |
200 x 32 mm |
| Application |
GSM/ 2G ,3G ,RFID |
Out of stock
| Model No. |
LWC-868-RD-RA-SMA-PLUG-02 |
|---|---|
| Antenna Gain |
2.2 dBi |
| Frequency (MHz) |
860 – 928 MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 1.5 |
| Polarization |
Vertical |
| Power Handling (W) |
10 |
| HPBW |
H: 3600 ; V: 400 |
| Connector |
SMA (M) |
| Housing Material |
ABS / Black |
| Operating humidity |
5 – 75% |
| Operating Temperature (°C) |
-300 to 600 C |
| Weight (g) |
< 20g |
| Product Dimensions |
190 x 12 |
| Application |
Sub GHz ,Smart Meters ,LoRa ,LPR |
Out of stock
| Model No. |
LWC-868-RD-ST-SMA-PLUG-02 |
|---|---|
| Antenna Gain |
~1.8 dBi |
| Frequency (MHz) |
865 – 868MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 1.5 |
| Polarization |
Vertical |
| Power Handling (W) |
10 |
| HPBW |
H: 3600 ; V: 400 |
| Connector |
SMA Plug |
| Housing Material |
Plastic / Black |
| Operating humidity |
5 – 75% |
| Operating Temperature (°C) |
-300 to 600 C |
| Weight (g) |
<10g |
| Product Dimensions |
50 x 10g |
| Application |
Sub GHz ,Smart Meters ,LoRa ,LPR |
Out of stock
| Model No. |
LWC-2400-RD-RA-SMA-PLUG-02 |
|---|---|
| Impedance (Ω) |
50 |
| Application |
WiFi ,Bluetooth/ Zigbee ,5G ,ISM |
| Conductor Resistance (Ω/km) |
545 |
| Insulation Resistance (MΩ/km) |
1000 |
| Capacitance (pF/M) |
96 |
| Dielectric Strength |
500V/ min AC |
| Spark Test |
1KV |
| Velocity of propagation |
69% |
| VSWR (0 to 6.0 GHz) |
1.30 |
| VSWR (6.0 to 8.0 GHz) |
1.45 |
