₹405.75 (Including tax)
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹385.46 (Including tax) |
| 11 - 20 | 8% | ₹373.28 (Including tax) |
| 21 - 40 | 10% | ₹365.17 (Including tax) |
| 41 - 100 | 12% | ₹357.05 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

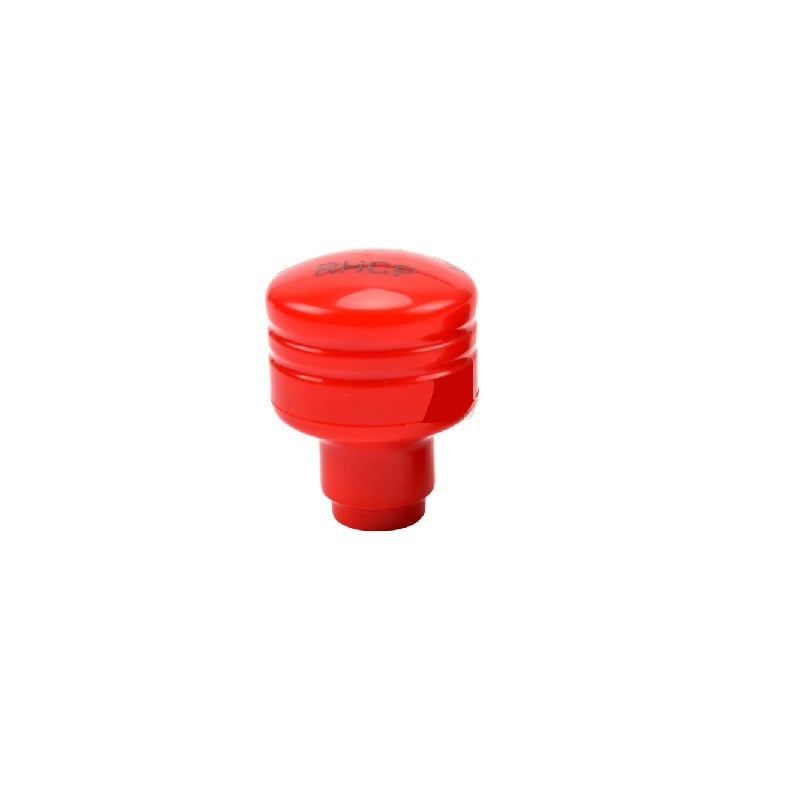

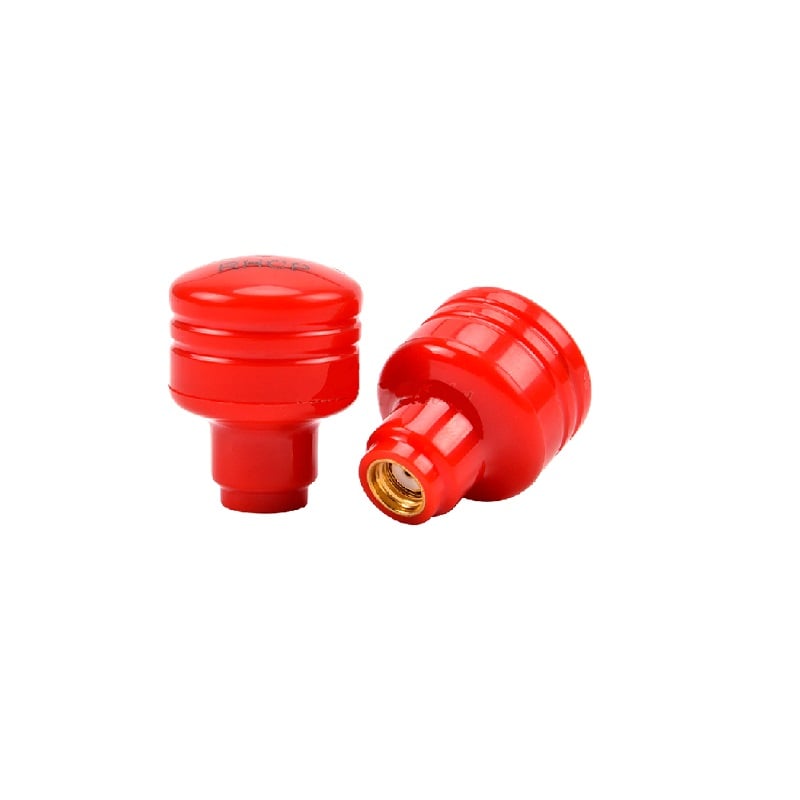

This 5.8G 3.5dBi Micro Antenna RP-SMA  is compatible with most wireless routers as well as any home system that requires a mini network cable. Antenna sma sd card slot
1 x 5.8G 3.5dBi Micro Antenna RP-SMA
| Frequency |
5000-6000MHz |
|---|---|
| Gain |
3.5dBi |
| Height |
Φ21*28mm |
| Connector |
RP-SMA(inner hole) or SMA (inner needle) |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
| Model No. |

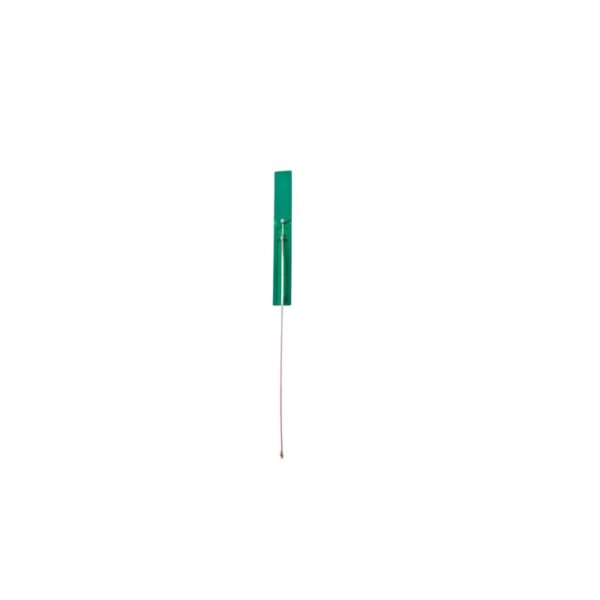

LWC-4G-PCB-03 (V1.0 ,UFL) |
|---|---|
| Antenna Gain |
1/ 2 dBi |
| Frequency (MHz) |
698 – 960 MHz & 1710 – 2690 MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 2.5 |
| Polarization |
Linear |
| Power Handling (W) |
5 |
| HPBW |
H: 360°; V: 30°/ 40° |
| Connector |
MHF4/ UFL |
| Housing Material |
Spring Steel Powder Coated |
| Cable Type |
RG178 |
| Operating humidity |
5 – 75% |
| Mounting |
3M Adhesive Tape |
| Operating Temperature (°C) |
-30 to 60 C |
| Weight (g) |
5 |
| Product Dimensions |
128 x 18 x 5 (with adhesive and cable) |
| Application |
2G ,3G ,4G ,ISM |
Out of stock
| Model No. |

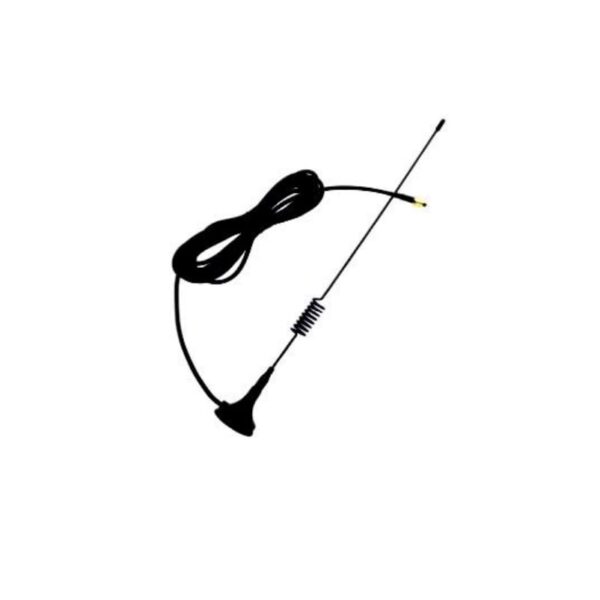

LWC-4G-MM-06 (0.5M) |
|---|---|
| Antenna Gain |
5/ 6 dBi |
| Frequency (MHz) |
698 – 960 MHz & 1710 – 2690 MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 2.5 |
| Polarization |
Linear |
| Power Handling (W) |
50 |
| HPBW |
H: 360°; V: 30°/ 40° |
| Connector |
SMA Plug |
| Housing Material |
Spring Steel Powder Coated |
| Cable Type |
RG174 ,0.5m |
| Cable Length (Meter) |
5M |
| Operating humidity |
5 – 75% |
| Operating Temperature (°C) |
-30 to 60 C |
| Weight (g) |
<100 |
| Product Dimensions |
310 x Φ32mm |
| Application |
 3G ,4G ,ISM/ WiFi/ Zigbee/ BLE |
Out of stock
| Model No. |
LWC-GSM-MM-03 (STUB 3.0M) |
|---|---|
| Antenna Gain |
3 dBi |
| Frequency (MHz) |
824 – 960 MHz & 1710 – 1980 MHz |
| Impedance (Ω) |
50 |
| VSWR |
<2.2 |
| Polarization |
Linear |
| Power Handling (W) |
10 |
| HPBW |
H: 360°; V: 30°/ 40° |
| Housing Material |
Carbon Steel Powder Coated |
| Operating humidity |
5 – 75% |
| Cable Type |
RG174/ 3.0m |
| Cable Length (Meter) |
3M |
| Operating Temperature (°C) |
-30° to 60° C |
| Connector |
SMA-Plug |
| Weight (g) |
< 75g |
| Product Dimensions |
110 x Φ32mm |
| Application |
GSM ,2G |
Out of stock
| Model No. |
LWC-GSM-MM-06 (0.5M) |
|---|---|
| Antenna Gain |
4 / 6 dBi |
| Frequency (MHz) |
824 – 960 MHz & 1710 – 2170 MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 2.0 |
| Polarization |
Linear |
| Power Handling (W) |
10 |
| HPBW |
H: 360°; V: 30°/ 40° |
| Housing Material |
Carbon Steel Powder Coated |
| Operating humidity |
5 – 75% |
| Cable Type |
RG174/ 0.5m |
| Cable Length (cm) |
48 |
| Operating Temperature (°C) |
-30° to 60° C |
| Connector |
SMA-Plug |
| Weight (g) |
35 |
| Product Dimensions |
280 x Φ32mm |
| Application |
GSM / 2G ,3G ,RFID |
Out of stock
| Model No. |

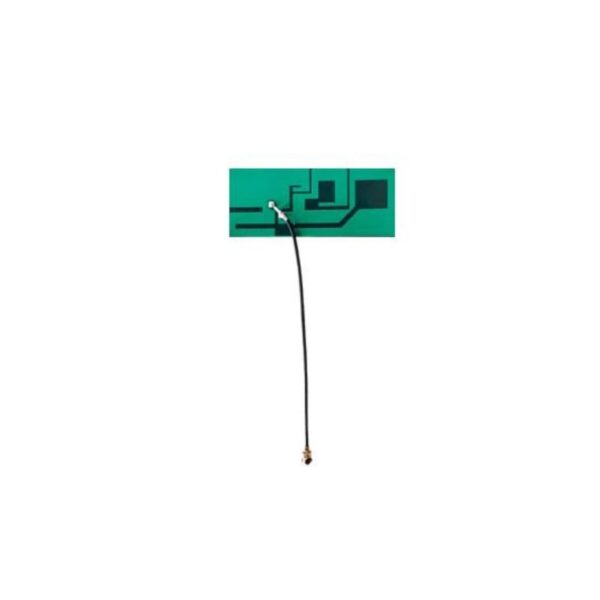

LWC-MB-PCB-03 (V2.0 ,10cm UFL) |
|---|---|
| Antenna Gain |
~ 2/ 2.5/ 3.5 dBi |
| Frequency (MHz) |
698-960MHz ,1710-2690MHz & 3400 – 3800MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 3.0 |
| Polarization |
Linear |
| Power Handling (W) |
05 |
| HPBW |
H: 360°; V: 30°/40°/45° |
| Operating humidity |
5 – 75% |
| Cable Type |
10cm 1.13mm coax cable |
| Mounting |
3M Adhesive Tape |
| Operating Temperature (°C) |
-30° to 60° C |
| Connector |
UFL |
| Weight (g) |
5g |
| Product Dimensions |
50 x 21 x 0.4 mm |
| Application |
2G ,3G ,4G ,5G ,Wi ,Fi |
Out of stock
Out of stock
| Model No. |
LWC-GPS-PASSIVE-CP-03 (V1.0 ,PIN) |
|---|---|
| Antenna Gain |
> 2.5dBi |
| Frequency (MHz) |
1575 +/- 3MHz |
| Impedance (Ω) |
50 |
| VSWR |
< 2.0 |
| Polarization |
Right Hand Circular Polarized |
| Power Handling (W) |
2W |
| HPBW |
H: 65°; V: 65° |
| Housing Material |
Ceramic |
| Axial Ratio (dB) |
< 3.0 |
| Operating humidity |
5 – 75% |
| Operating Temperature (°C) |
-40° to 85° C |
| Weight (g) |
<10g |
| Product Dimensions |
25 x 25 x 5 |
| Application |
GPS |
Out of stock
