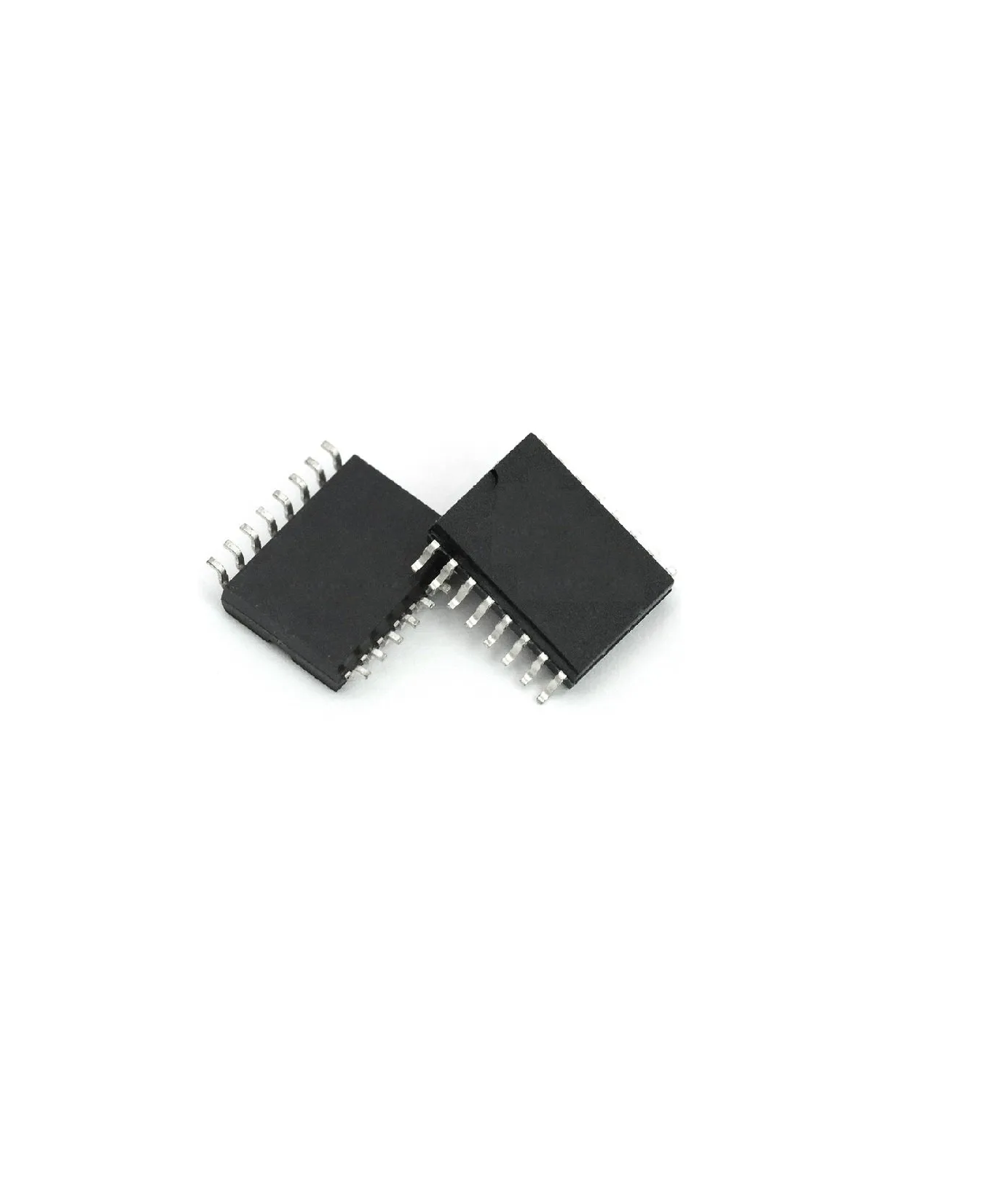

74HCT4051D,118 – 8-channel Analog Switch SP8T Multiplexer/Demultiplexer TTL IC

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.


Package Includes:

1 x 74HCT4051D,118 – 8-channel Analog Switch SP8T Multiplexer/Demultiplexer TTL IC SMD-16 Package

The W5100S is a Hardwired TCP/IP embedded Ethernet Controller that enables easier Internet Connection for embedded Systems using SPI (Serial Peripheral Interface) and Parallel Bus.

W5100S suits users in need of stable Internet Connectivity Best, using a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC, and PHY. The implemented Hardwired TCP/IP stack supports TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE which has been proven through various Applications over many years. W5100S uses a 16 Kbytes Internal Buffer as its Data Communication Memory.

By using W5100S, users can implement the Ethernet Application they need by using a simple socket Program instead of handling a complex Ethernet Controller. It is possible to use 4 independent hardware sockets simultaneously.

Features:

1. 48QFN lead-free package (7x7mm, 0.5mm pitch)
2. Host Interface: SPI (up to 70MHz, mode 0, 3) and Parallel System Bus with 2 Address signals and 8 Bits Data
3. Unattackable hardware engine for preventing network attacks such as flooding, spoofing, injection
4. 4 Independent hardware sockets simultaneously
5. supports various Internet Protocols: TCP, UDP, WOL over UDP, ICMP, IGMPv1/v2, IPv4, ARP, PPPoE
6. Internal 16 Kbytes memory for TCP/IP packet processing
7. socket-less commands possible: ARP request and ping requests
8. 10BaseT / 100Base TX Auto Negotiable Ethernet PHY Embedded
9. Auto-MDIX in auto-negotiation mode (Half/Full Duplex, 10/100 MBit/s speed)
10. IP fragmentation not supported, ARP-cache table will not be stored permanently
11. 3.3V operating voltage with 5V I/O signal tolerance
12. LED outputs (full/half duplex, link, 10/100 speed, active)
13. Reduced heat dissipation (W5500: 40℃ / other chips : 60-70℃)
14. Efficient power operation: power down & main clock gating as well as wake-on LAN over UDP

Specifications:

1. Ethernet: I/F PHY
2. Operating Temperature: -40 … + 85 °C
3. Operating Voltage: 3.3 V
4. Functions: 3-in-1, TCP/IP+MAC+PHY
5. Auto Negotiation: Yes
6. Network sockets count: 4
7. internal DPRAM buffer memory: 16 kB
8. Package :QFN
9. pin count: 48
10. auto MDIX: Yes
11. Wake on Lan: Yes
12. Power Down Mode: Yes
13. typ. Power Consumption: tbd
14. SPI (max. speed): 70 MHz
15. MCU I/F 8 bit (indirect),: SPI
16. PHY chip: W5100S
17. pin pitch: 0.50 mm
18. MII: No
19. Ethernet Speed: 10/100
20. parallel memory bus: 8bit indirect

Package Includes:

1 x WIZnet W5100S-Q

The DS75176B is a high-speed differential TRI- STATE@bus/line transceiver designed to meet the requirements of EIA standard RS485 with an extended common-mode range (+12V to —7V), for multipoint data transmission. In addition, it is compatible with RS-422. The driver and receiver outputs feature TRI-STATE capability, for the driver outputs over the entire common-mode range of +12V to —7V. Bus contention or fault situations that cause excessive power dissipation within the device are handled by a thermal shutdown circuit, which forces the driver outputs into the high impedance state. DC specifications are guaranteed over the O to 700C temperature and 4.75V to 5.25V supply voltage range.

Features:

1. Meets EIA Standard RS485 for Multipoint Bus Transmission and is Compatible with RS-422.
2.  Small-Outline (SOIC) Package Option Available for Minimum Board Space.
3.  22 ns Driver Propagation Delays.
4.  Single +5V Supply.
5.  −7V to +12V Bus Common-Mode Range Permits ± 7V Ground Difference Between Devices on the Bus.
6.  Thermal Shutdown Protection.
7.  The pinOut is Compatible with DS3695/A and SN75176A/B.
8.  Combined Impedance of a Driver Output and Receiver Input is Less Than One RS485 Unit Load, Allowing up to 32 Transceivers on the Bus.

Package Includes:

1 x SN75176N RS-422/RS-485 Interface IC DIP-8 Package

MCP42010 2-Channel Digital 10K Potentiometer with SPI Interface IC

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.


Package Includes:

1 x MCP42010 2-Channel Digital 10K Potentiometer with SPI Interface IC SMD-8 Package

MCP2551-I/P CAN Transceiver IC

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.


Package Includes:

1 x MCP2551-I/P CAN Transceiver IC DIP-8 Package

MCP23017 16-Bit Input/Output Expander with I2C Interface IC

Note:

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.


Package Includes:

1 x MCP23017 16-Bit Input/Output Expander with I2C Interface IC DIP-28 Package
