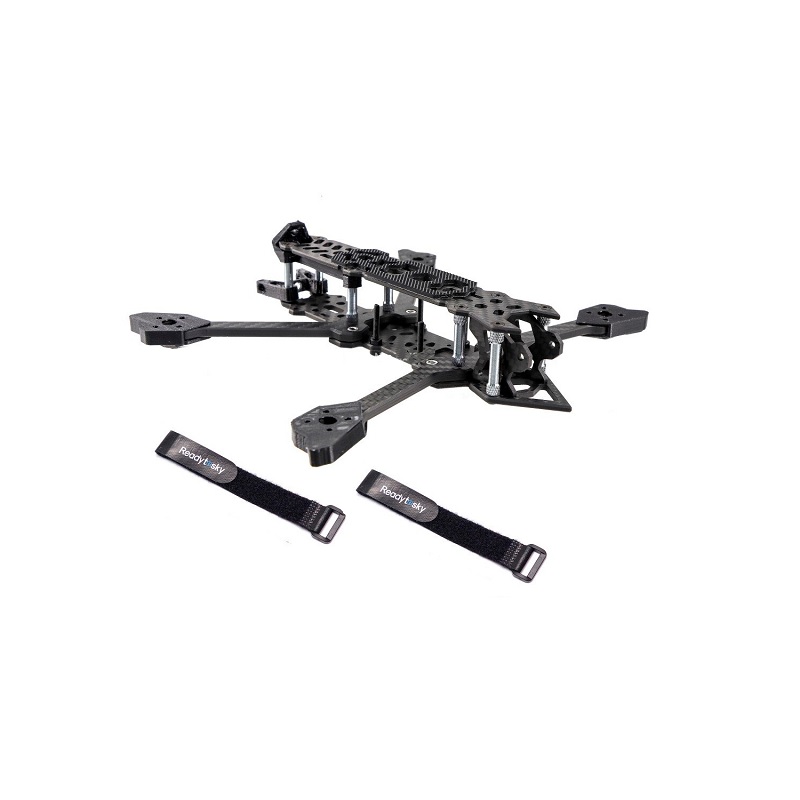

Assassin 5 inch 222mm Drone Racing frame Kit

SKU: 1010942
In Stock

3,159.00

  1. Model: Assassin
  2. Wheelbase: 222mm
  3. Material: Full Carbon Fiber
  4. Arm Thickness:5 mm
  5. Weight: 210 gm
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

The Assassin 5 inch 222mm Drone Racing frame. This frame is built specifically to tackle the problems in FPV Racing and video recording with quadcopters. It is known for its toughness and durability.

Carbon fiber is mostly an accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance. The frame is lightweight and possesses thick arms, so as to give them good mechanical strength.

The frame has a wheelbase of 222mm. It features a very large area on the mainframe for mounting cameras and other accessories

Its longer top and bottom plate allows easy mounting of HD cameras and batteries. so more spacious room for all kinds of electronics!!!

You can also check our following Multirotor Kits category if you are a beginner or just not willing to send lot much of time in selecting appropriate parts for your quadcopter and want your quad in the air as soon as possible,
Multirotor Kits






Features:

  1. Lightweight and Durable.
  2. Made by super strong and advanced engineering material.
  3. The frame has excellent strength.
  4. Equips vibration-free mounting bracket for FPV camera.

Package Includes:

1 x Assassin 5 inch 222mm Drone Racing frame Kit

Kit Includes:

1 x Assassin 5 inch 222mm Drone Racing frame and Accessories

1 x black zip ties(10 pcs)

Additional information

Model

Assassin

Compatible Propellers Size (inch)

5.1

Wheelbase (mm)

222

Arm Size (L x W) mm

120×20

Thickness (mm)

5

Weight (gm)

210

Quick Comparison

SettingsAssassin 5 inch 222mm Drone Racing frame Kit removeMark4 5 inch 225mm carbon fiber frame kit removeMini MD90 90mm Racing Drone with Mini Flytower F3 removeDYS F2206 Drone Power Combo Set (Original) removeIX2 90mm Micro FPV Racing kit removeOrange KK Flight Controller Based Q450 Quad Drone Kit remove
NameAssassin 5 inch 222mm Drone Racing frame Kit removeMark4 5 inch 225mm carbon fiber frame kit removeMini MD90 90mm Racing Drone with Mini Flytower F3 removeDYS F2206 Drone Power Combo Set (Original) removeIX2 90mm Micro FPV Racing kit removeOrange KK Flight Controller Based Q450 Quad Drone Kit remove
SKU1010942101093897486286730410109471195359
Rating
Price3,159.002,030.007,499.006,940.008,810.0013,499.00
Stock
In Stock
In Stock
Out of stock
In Stock
In Stock
Out of stock
AvailabilityIn StockIn StockOut of stockIn StockIn StockOut of stock
Add to cart

Add to cart

Add to cart

Read more

Add to cart

Add to cart

Read more

Description
  1. Model: Assassin
  2. Wheelbase: 222mm
  3. Material: Full Carbon Fiber
  4. Arm Thickness:5 mm
  5. Weight: 210 gm
  1. Model: MARK4
  2. Wheelbase: 225mm
  3. Material: Full Carbon Fiber
  4. Arm Thickness:5 mm
  5. Weight: 130 gm
  1. Pack contains quality products
  2. All products are tested and ready to perform
  3. All essential equipment required to build a Racing Drone is included in this advanced combo pack.
  1. Pack contains quality products
  2. All products are tested and ready to perform
  3. All essential equipment required to build a Quadcopter is included in this advanced combo pack.
  1. Material: Carbon Fiber
  2. Wheelbase:90 mm
  3. Arm Thickness:1.8 mm

KK2.1 Multi-rotor LCD Flight Control Board With 6050MPU And Atmel 644PA
Q450 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB
A2212 1000 KV BLDC Brushless DC Motor for Drone (Soldered Connector)
SimonK 30A BLDC ESC Electronic Speed Controller with Connectors
Orange HD Propellers 1045(10X4.5) ABS Yellow 1CW+1CCW-1pair

Content

The Assassin 5 inch 222mm Drone Racing frame. This frame is built specifically to tackle the problems in FPV Racing and video recording with quadcopters. It is known for its toughness and durability.

Carbon fiber is mostly an accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance. The frame is lightweight and possesses thick arms, so as to give them good mechanical strength.

The frame has a wheelbase of 222mm. It features a very large area on the mainframe for mounting cameras and other accessories

Its longer top and bottom plate allows easy mounting of HD cameras and batteries. so more spacious room for all kinds of electronics!!!

You can also check our following Multirotor Kits category if you are a beginner or just not willing to send lot much of time in selecting appropriate parts for your quadcopter and want your quad in the air as soon as possible,
Multirotor Kits






Features:

  1. Lightweight and Durable.
  2. Made by super strong and advanced engineering material.
  3. The frame has excellent strength.
  4. Equips vibration-free mounting bracket for FPV camera.

Package Includes:

1 x Assassin 5 inch 222mm Drone Racing frame Kit

Kit Includes:

1 x Assassin 5 inch 222mm Drone Racing frame and Accessories

1 x black zip ties(10 pcs)

The Mark4  5Inch 225mm Carbon Fiber Racing Frame. This frame is built specifically to tackle the problems in FPV Racing and video recording with quadcopters. It is known for its toughness and durability.

Carbon fiber is mostly an accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance. The frame is lightweight and possesses thick arms, so as to give them good mechanical strength.

The frame has a wheelbase of 225mm. It features a very large area on the mainframe for mounting cameras and other accessoriesThis frame supports 19.3mm board cams as well as cams in cases with mounting brackets.

Its longer top and bottom plate allows easy mounting of HD cameras and batteries. so more spacious room for all kinds of electronics!!!

You can also check our following Multirotor Kits category if you are a beginner or just not willing to send lot much of time in selecting appropriate parts for your quadcopter and want your quad in the air as soon as possible,
Multirotor Kits








Features:

  1. Lightweight and Durable.
  2. Made by super strong and advanced engineering material.
  3. The frame has excellent strength.
  4. Equips vibration-free mounting bracket for FPV camera.

Package Includes:

1 x Mark4 5 inch 225mm carbon fiber frame kit

This Mini MD90 90mm Racing Drone with Mini Flytower F3, Drone Power Combo Set is the best low price drone motors and accessories combo set available in the market.

If you are about to have a great flying drone or quadcopter designed all by you. OKAY GREAT, But having a limited budget ??

Then here is the best deal for you!!!!

It is a pack of Mini F3 or F4 flytower Flight controllers with a 5.8G 25mW Transmitter, 600TVL 170 degree color video mini camera with mic audio, 1104 7500kv motor, and MD90 Frame Kit with 2030 red propeller.

Note: This product doesn’t come with a transmitter and receiver you have to purchase it separately.






Features:

  1. 600TVL 170 degrees color video mini camera with mic audio
  2. 48 wireless channels transmitter
  3. 7500KV Brushless Motor
  4. Micro size and lightweight
  5. Easy installation for racing drone

Specifications:

Transmitter:

  1. Support video format: PAL
  2. Output Impedance: 50 Ohm
  3. Output signal strength: 13±1dbmdBm
  4. Output Power: 25mW
  5. Wireless Channel: 48CH
  6. Operating voltage: 5v
  7. Current: 100mA
  8. Frequency : 5 BAND 48CH 5645 ~ 5945 MHz

600TVL Camera:

  1. Horizontal Resolution : 600TVL
  2. Minimum illumination: 0LUX(LED ON)
  3. S/N ratio ≥48dB
  4. Gama:0.45
  5. Frame speed: 50f/s(PAL)
  6. White balance: Auto
  7. Audio out: Monophonic
  8. Video out: 1.2Vp-p 75Ω CVBS
  9. Image color: Color
  10. TV format: PAL
  11. Lens: 1.8mm Wide view angle 170 Degree
  12. IR Distance:1-3 Meters
  13. Working temperature: -10~+50Degree C
  14. Input power : 5V(Module)/DC9-12V(With step-down AV cable)
  15. Power consumption :120mA

Mini 1104 7500KV Brushless Motor:

  1. KV: 7500KV
  2. Motor size: diameter 14*12.5
  3. Stator Diameter: 14mm
  4. Stator Length: 12.5mm
  5. Shaft Diameter: 1.5mm
  6. Motor Dimensions(Dia*Len): diameter 14*12.5mm
  7. No.of Cells(Lipo): 2-3S
  8. Max Continuous Current(A): 3.5A
  9. Max Continuous Power(W): 38.9W

MD90 frame:

  1. Wheel Base: 90mm
  2. Weight: about 19g
  3. Upper Board Thickness: 1.5 mm
  4. Bottom board Thickness: 2mm

Package Includes:

1 x MD90 Frame Kit
1 x set mini F3 or F4 Flytower Flight Controller
1 x 5.8G 25mW Transmitter
1 x 600TVL camera
4 x 1104 7500kv motor
4 x 2030 red propeller

This F2206 Drone Power Combo Set is the best low price drone motors and accessories combo set available in the market.

If you are about to have a great flying drone or quadcopter designed all by you. OKAY GREAT, But having a limited budget ??

Then here is the best deal for you!!!!

This is our best market cracking Racing/ fixed-wing/ Brushless/ UAV Motor when it comes to Robu.in bestselling drone motors. The uniqueness of this RC BLDC Motor lies in its low cost and highly satisfying performance on the fly.

BE2206 Motor

These Racing/ fixed-wing/ Brushless/ UAV Motor for drones are imported from China. Our quality control team then test some of the random motors from each batch before setting them on sale. This 1950kv Racing/ fixed-wing/ Brushless/ UAV Motor is equipped with a solid metal case which makes it reliable and durable.

BL30A BLHeli firmware ESC

The new DYS BLHeli series speed controllers are quickly becoming the most popular ESCs amongst drone racing enthusiasts and with good reason. They are ultra-small, very light and arrive flashed with the best multirotor firmware out there, namely BLHeli. Being specifically designed for multirotor use, they are tuned to deliver an ultra-fast throttle response, which helps to improve stability and give you that much sought-after locked-in feeling!

ABS6045 Two-Blade Propellers

These Two-Blade Propellers made up of  Glass Fiber Nylon is high-quality propellers specially designed for high-Speed racing multi-copters.

With a Lightweight blade and less moment of inertia, these PROPS have smooth turning performance and fast response. The professional pneumatic outlook design and high precision production quality provide a strong thrust for Props.

The Advance Polycarbonate material provides good dash and bending resistance and hence it this propeller gives the best efficiency and ultra-durability.

Note:  The Propeller dimensions and weight may have  ±2% error.

We at Robu. passionately deal in this Multicopter/Drone area to encourage and help many DIY makers by supplying every essential product to build and enrich Multicopters/Drones.






Specifications:

BE2206 Motor

  1. KV: 1950
  2. Configuration: NP
  3. Stator Diameter: 22.0mm
  4. Stator Length: 6.0mm
  5. Shaft Diameter: 3.0mm
  6. Motor Dimensions (Dia.*Len): Φ27×18.5mm
  7. Weight (g): 30g
  8. of Cells(Lipo): 2-3S
  9. Max Continuous Current (A): 14.7A
  10. Max Continuous Power (W): 163.0W
  11. Internal resistance: 0.098Ω

ESC:

  1. Model: BL30A / SN30A
  2. Battery: 6-22.2V (2-6S Lipo)
  3. Current Rating: 30amp / 35amp burst
  4. BEC: No (OPTO)
  5. Signal frequency: 20-500Hz
  6. Output PWM frequency: 18KHz
  7. Firmware: BLHeli (also compatible with SimonK)
  8. Size: 45×16.6×5.5mm
  9. Weight: 14.5g

ABS6045 Two-Blade Propellers

  1. Hi-Performance Prop FPV 2 blade bullnose propeller ABS6045 CW/CCW
  2. Material: PC
  3. Size: 6 x 4.5
  4. Hub inner diameter(ID): M5
  5. Hub thickness: 7mm
  6. Weight: 3.8g/pcs
  7. Colour: Green and Orange

Features:

BE2206 Motor

  1. New design with imported NMB bearing
  2. Powerful with 680g thrust.
  3. Special design for the FPV racer champions

BL30A BLHeli firmware ESC

  1. Designed specifically for multi-rotors
  2. Tiny form factor and low weight
  3. Preloaded with BLHeli, OneShot125 & Dampened Light (active braking) supported
  4. Fast throttle response – high 500Hz maximum refresh rate compatible with all flight controllers
  5. Twisted signal cable reducing the crosstalk during signal transfer
  6. Feature all new ultra-low resistance MOSFETs for superior current handling
  7. Thick PCB for better heat dissipation
  8. High-performance capacitor filter

ABS6045 Two-blade Propellers

  1. Comes with thin and wide blades
  2. 6045(6×4.5) Propellers features an epoxy resin cover.
  3. Quick to release, quick to attach
  4. New design propellers, with greater aerodynamic efficiency, good lifting capacity.

Package Includes :

4 x BE2206 1950KV CW CCW KV Brushless Motor
4 x Set of Motor Accessories
4 x BL30A BLheli firmware ESC
6 x ABS6045 Propellers(3CW, 3CCW).

If you want to build your first drone model on your own, then this kit is for you. The kit includes everything you’ll need to create the best drone model possible as a beginner.

For someone new to the multirotor hobby, putting together your first quadcopter parts list and bringing them home can be extremely daunting. Trying to figure out what to buy and what parts will work together is tough, especially for people who don’t come from a background in radio-controlled planes or helicopters. For the people who want to build a quadcopter but don’t know where to start. It can be frustrating trying to sort things and figure out what to do.

IX2 90mm Micro FPV Racing Kit

This IX2 90mm Micro FPV Racing Drone Frame. This Frame is built Specially to tackle the Problems in Racing and Video recording with Quadcopter. This Frame is built with carbon fiber and It has Good Electrical Properties and Good Tensile Strength. The IX2 90mm Micro FPV Racing Drone Frame is composed of carbon fiber, making it strong and long-lasting because of its excellent rigidity to weight ratio, carbon fiber is the most used material for the frame design. Carbon Fiber Frames are extremely stiff, which improves flight stability and performance. The wheelbase of this product is approximately 90mm. It has a huge space in the mainframe where the camera and other accessories can be mounted. The frame is light and has substantial arms, allowing it to provide strong mechanical strength. The frame’s aerodynamic efficiency is enhanced by the small design.

More information about HSKRC 3 Inch 140mm Carbon Fiber Racing Frame is available at Robu.in.

Explore our Drone parts category for other accessories like propellers, FPV cameras, Telemetry, and Remote Transmitter and ReceiverClick Here








Diagram:


Package Includes:

 1 x IX2 90mm Micro FPV Racing Drone Frame

4 x Readytosky 1104-7500kv Mini Brushless Motor

2 x 2 pairs 2030 3 blades 2 inch Clear Propeller CW&CCW

1 x MINI F4+OSD Flight Controller

1 x Electronic Speed Controller

1 x Drone Camera

Because we’ve been in the robotics industry for a long time, we’ve accumulated data and input from our customers on what the most unpleasant aspects of constructing any project or application are. Finding all of the appropriate and right items needed to complete a job is the solution.

And it was then that we came up with the concept of packaging all of the essential components into a single package and naming it a Kit for each project to make things easier for you, as a result, Orange Kits appear in a Picture.

Till now we’ve built over 100+ orange kits for various IoT projects for our creators, and you’ve responded to it very well. So for the next iteration, we’ve considered the Drone Parts because we discovered that purchasing all of the proper and appropriate items to build a drone is a difficult effort. Not to worry, ORANGE DRONE KIT will assist you in building your own drone by simply selecting components from the box to validate our tagline Less Hassle, More Fun..!

With our Drone Kit, we can assure you that there is a very tiny chance that your drone will not fly because the quality and compatibility of the components we have included in the kit have been thoroughly checked by our experienced team.


Package Includes:

1 x Orange KK Flight Controller-Based Q450 Quad Drone Kit

Kit Includes:

1 x KK2.1 Multi-rotor LCD Flight Control Board With 6050MPU And Atmel 644PA
1 x Q450 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB
4 x A2212 1000 KV BLDC Brushless DC Motor for Drone (Soldered Connector)
4 x SimonK 30A BLDC ESC Electronic Speed Controller with Connectors
3 x Orange HD Propellers 1045(10X4.5) ABS Yellow 1CW+1CCW-1pair
1 x Plastic Landing Gear for Quadcopter
1 x  JR Male To JR Male Servo Extension Wire-100mm (7 Pcs)
1 x 30cm Lipo Battery Strap Belt Reusable Cable Tie Wrap
1 x SafeConnect XT60 Male with 14AWG Silicon Wire 10cm
1 x 10 in Allen Key Kit (1.5mm 2mm 2.5mm 3mm 3.5mm 4mm 5mm 6mm 8mm 10mm)
1 x Aluminum Motor M3/M5/M10 Bullet Cap Quick-Release Wrench
1 x SafeConnect Twisted 15cm 22AWG Servo Lead Extention (Futaba) with Hook- 1(4 Pcs)
1 x Nylon Cable Zip Ties 300 mm White (10pcs)
1 x Heat Shrink Sleeve Black Industrial Grade WOER (HST)



Weight
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
Model

Assassin

Compatible Propellers Size (inch)

5.1

Wheelbase (mm)

222

Arm Size (L x W) mm

120×20

Thickness (mm)

5

Weight (gm)

210

Model

Mark4

Compatible Propellers Size (inch)

5

Wheelbase (mm)

225

Arm Size (L x W) mm

120×20

Thickness (mm)

5

Weight (gm)

130
