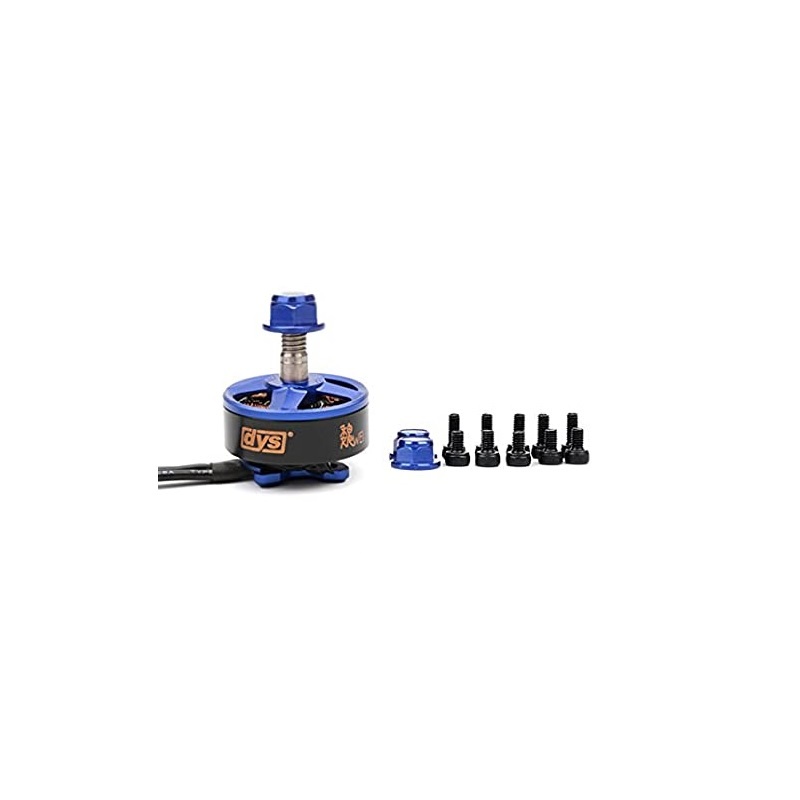

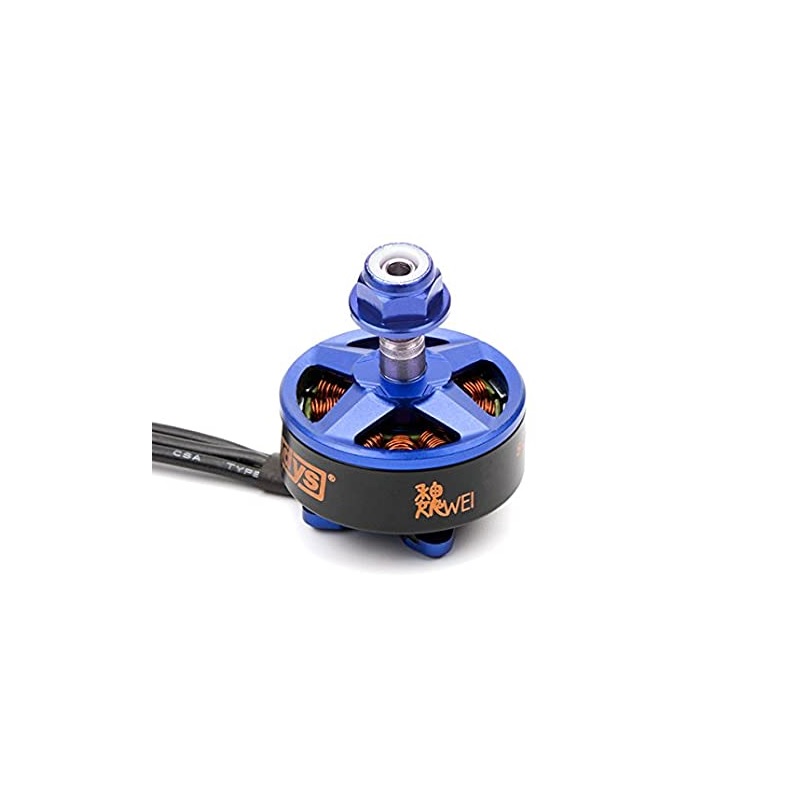

Samguk Series Wei D2207 2600Kv BLDC Motor

SKU: 1086407
In Stock

995.00

  1. Model: Wei D2207
  2. Shaft Diameter: 5 mm
  3. Weight: 33 g
  4. Rpm/v : 2600 KV
  5. Nut Thread type: CW
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

The Wei D2207 2600Kv Motor from Samguk Series was designed and built specifically for FPV racing. This Brushless motor has a low price and is of excellent quality. These motors are great for a beginner who wants to get in the air and learn the fundamentals of FPV flying!

Application:
  1. Drones
  2. Quadcopters
  3. Multirotors
  4. RC Airplanes
  5. UAV

Features:

  1. Vibration Free Operation.
  2. Windings are made from copper of high purity.
  3. Generates less heat during operations.

Package Includes:

1 x Samguk Series Wei D2207 2600Kv BLDC Motor

Additional information

Model

Wei D2207

Motor KV (RPM/V)

2600

Maximum Power (W)

704

Shaft Diameter (mm)

5

Nut Type

CW

Width (mm)

28

Height (mm)

33

Weight (gm)

33

Quick Comparison

SettingsSamguk Series Wei D2207 2600Kv BLDC Motor removeReadytosky MT2204 2300KV CCW Brushless Motor removeA2217 1500KV RC Brushless Out-runner Motor welded Banana Connector (Male) removeEmax ECOII-2306-2400KV Brushless Motor removeT Motor Navigator MN601-S KV320 – 2PCS/SET removeA2217 1100KV RC Brushless Outrunner Motor welded Banana Connector (Male) remove
NameSamguk Series Wei D2207 2600Kv BLDC Motor removeReadytosky MT2204 2300KV CCW Brushless Motor removeA2217 1500KV RC Brushless Out-runner Motor welded Banana Connector (Male) removeEmax ECOII-2306-2400KV Brushless Motor removeT Motor Navigator MN601-S KV320 – 2PCS/SET removeA2217 1100KV RC Brushless Outrunner Motor welded Banana Connector (Male) remove
SKU108640714236591395363144469714029821395361
Rating
Price995.00535.00615.001,510.0019,390.00615.00
Stock
In Stock
Out of stock
Out of stock
In Stock
In Stock
Out of stock
AvailabilityIn StockOut of stockOut of stockIn StockIn StockOut of stock
Add to cart

Add to cart

Read more

Read more

Add to cart

Add to cart

Read more

Description
  1. Model: Wei D2207
  2. Shaft Diameter: 5 mm
  3. Weight: 33 g
  4. Rpm/v : 2600 KV
  5. Nut Thread type: CW
  1. Product: Readytosky MT2204 2300KV CCW Brushless Motor
  2. Compatible for: 5 inch Propeller
  3. Compatible With: 2S-3S Lipo Batteries
  4. Maximum Current: 25 A
  1. Model: A2217 1500KV
  2. Connector: Banana Connector (Male)
  3. KV: 1500KV
  4. Output shaft diameter: 4.0mm
  5. Motor weight: 71g
  1. Model: Emax ECOII-2807-1300KV
  2. hole pattern: 19 X 19
  3. Lead: 20#AWG 120mm
  4. Bearing: 4mm
  5. Ideal current: 1.8A
  1. Product: T Motor Navigator MN601-S KV320 – 2PCS/SET
  2. Motor Size (mm): φ68.8*34.9
  3. Stator Technology: anti rust treatment ; 150°c high temperature resisting coating
  4. Configuration: 24N28p
  5. Shaft Diameter (mm): IN:6 OUT:6
  1. Model: A2217 1100kv
  2. Compatible Lipo Batteries: 3S ~ 5S
  3. Motor KV (RPM/V): 1100
  4. Compact size.
  5. Offers great performance and value for money.
  6. Smooth throttle response for best RC experience.
Content

The Wei D2207 2600Kv Motor from Samguk Series was designed and built specifically for FPV racing. This Brushless motor has a low price and is of excellent quality. These motors are great for a beginner who wants to get in the air and learn the fundamentals of FPV flying!

Application:
  1. Drones
  2. Quadcopters
  3. Multirotors
  4. RC Airplanes
  5. UAV

Features:

  1. Vibration Free Operation.
  2. Windings are made from copper of high purity.
  3. Generates less heat during operations.

Package Includes:

1 x Samguk Series Wei D2207 2600Kv BLDC Motor

One goal in mind guided the design of the Readytosky MT2204 2300KV Brushless Motor: increasing multirotor performance. The MT2204 2300KV from Readytosky is the new benchmark for multirotor performance. Each motor is designed for a particular kind or application, enabling ongoing improvement and efficiency/power optimization.

The best quality materials, including Japan bearings, N45SH magnets, 0.2mm laminations, 180deg oxygen-free copper wire, 0.005g balancing, and the ideal wind laydown, went into its construction. The MT2204-2300KV Multi-Rotor Motor is 100% QC authorised, and after that, each motor’s design is examined for its type of application, taking into account everything from mounting to prop type adapters.

The bottom motor frame is chamfered for easier installation on narrower frames and has enough of height for mounting hardware to winding clearance.The performance of Multistar Elite speaks for itself, and it is unrivalled in terms of quality and value. It may be used in conjunction with Orange Series HD 5′′ Propeller and Orange 3S Premium Li-PO for an exceptional multirotor flight experience.Worry no more if you are unsure of the ideal motor to use while constructing a drone since we’ve got you covered. We offer everything you need at Robu to get your drone idea off the ground


Features:

  1. provides superior Japan Bearings for efficient operation.
  2. Long-lasting N45SH magnets are in it.
  3. For the optimum operational qualities, 2mm Laminations were used in the design.
  4. They are more durable in class thanks to 180deg oxygen-free copper wire.
  5. 0.005 g or better balance is shown.
  6. flawless lay-down windings

Package Includes:

1 x Readytosky MT2204 2300KV CCW Brushless Motor



If you are wandering to build a drone and don’t know what will be the best motor for you then worry no more, we have got your back. At Robu, we have everything for you to get started with your drone project

These are the best low price drone motors available in the market.

These are our market-cracking Brushless Motors when it comes to Robu’s bestselling drone motors. The uniqueness of this BLDC Motor lies in low cost and highly satisfying performance on the fly.

Our quality control team tests some of the motors at random from each batch.

Application :
  1. Drones
  2. Quadcopters
  3. Multirotors
  4. RC Airplanes
  5. UAV

To Explore more Drone motors, Click here
To Explore Various kinds of Propellers, Click here
To Explore Various kinds of ESC’s, Click here


Features :

  1. The steel design is capable of withstanding competitional conditions.
  2. Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
  3. Compact size.
  4. Offers great performance and value for money.
  5. Smooth throttle response for best RC experience.

Specifications:

  1. GWS8040HD:
  2. 1500kv is suitable for: 8 – 9 inch paddles
  3. 11V 19.5A 13210 turn, thrust 963 grams
  4. 10.5V 17.9A 12730 rpm, thrust 894 grams
  5. 10V 16.6A 12280 rpm, thrust 816 grams
  6. 9.5V 15.2A 11820 rpm, thrust 748 grams
  7. GWS9050HD:
  8. 8V 18.6A 9030 turn, 816 g
  9. 7.5V 16.9A 8560 rpm, 739
  10. 7V 15.1A 8080 turn, 653
  11. 6.5V 13.6A 7680 rpm, 578
  12. Output shaft diameter: 4.0mm
  13. Motor weight: 71g

Packages Includes:

1 x A2217 1500KV RC Brushless Out-runner Motor welded Banana Connector (Male)

The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability.

Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.

In order to improve the performance from its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.

The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone

Note: Actual product  may vary from image in terms of design, color.


Features:

  1. Frecision bearing
  2. Steel shaft
  3. Anodizing
  4. 19*19mm hole pattern
  5. Multi-strand winding
  6. 200mm 18 AWG silicone wire
  7. Fully mirror-polished finish that shines and glistens with even the smallest hint of light
  8. Upgraded N52SH curved arc magnets for tighter airgap and better performance
  9. Massive 12mm EZO bearing for unparalleled smooth operation

Specifications:

  1. Model: Emax ECOII-2807-1300KV
  2. hole pattern: 19 X 19
  3. Lead: 20#AWG 120mm
  4. Bearing: 4mm
  5. Ideal current: 1.8A
  6. Internal resistance: 47mΩ
  7. No. of cell: 3-4 cell
  8. Propeller: 5-5.5
  9. Power watt: 740W
  10. Motor weight: 54g

Packages Includes:

1 x Emax ECOII-2306-2400KV Brushless Motor

Semi-closed design introduced to MN601 grid-shaped structure of bell cap allows efficient ventilation while protecting motors from dust and other debris . The grid-shaped inlet holes on the base further keep motors away from foreign objects even when motors are mounted upside down. Alloy shaft bearing varnished wire silicon steel sheet magnet and bell are treated with the latest anti-rust and anti-corrosion technology. it grants the motor parts remarkable protection


Features:

  1. Strong power, long service life
  2. Excellent cooling performance
  3.  Anti-high temperature/Anti-overload
  4.  Dust-resistance/Waterproof/Anti-corrosion

Specifications:

  1. Motor Size (mm): φ68.8*34.9
  2. Stator Technology: anti rust treatment ; 150°c high temperature resisting coating
  3. Configuration: 24N28p
  4. Shaft Diameter (mm): IN:6 OUT:6
  5. Bearing: Imported 626zz
  6. Magnet Temperature Resistance Grade: class E 150°c
  7. Lead (mm): 16AWG*150
  8. Coil Insulation Test: 500v
  9. Rotor Dynamic Balanced Standard (mg):<5mg

Package Includes:

1 x T Motor Navigator MN601-S KV320 – 2PCS/SET

This A2217 1100kv BLDC Motor is specifically made to power Quadcopters and Multirotors. It is an 1100 kV motor. It provides high performance, superpower, and brilliant efficiency. These motors are perfect for medium size quadcopters with 4 propellers.

The motor comes with a 3mm banana male connector attached which can be directly connected with 70A ESC without any soldering requirement

With a 3-5S LiPo battery,70A ESC  these motors provide up to 2150 gms of thrust each. Using 4 of these motors on a quadcopter with orange propellers will give you a total of 8.6 kg thrust! Use this to build powerful and efficient quadcopters.

This is a low price and excellent quality Brushless Motor.  It comes with Bullet Connectors already soldered

Applications:
  1. Drones
  2. Quadcopters
  3. Multirotors
  4. RC Airplanes
  5. UAV

Features:

  1. The steel design is capable of withstanding competitive conditions.
  2. Lightweight design makes them suitable for a wide range of Quadcopter and Hexacopter Frames.
  3. Compact size.
  4. Offers great performance and value for money.
  5. Smooth throttle response for best RC experience.

Specifications:

  1. Model: A2217 1100kv
  2. Compatible Lipo Batteries: 3S ~ 5S
  3. Motor KV (RPM/V): 1100
  4. Shaft Diameter (mm): 5
  5. Maximum Power (W): 911
  6. Required ESC (A): 70
  7. Compatible Propellers Size (inch): 12
  8. Motor weight: 69g
  9. Dimensions: 48 x 27.80mm

Packages Includes:

1 x A2217 1100KV RC Brushless Outrunner Motor welded Banana Connector (Male)

Weight
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
Model

Wei D2207

Motor KV (RPM/V)

2600

Maximum Power (W)

704

Shaft Diameter (mm)

5

Nut Type

CW

Width (mm)

28

Height (mm)

33

Weight (gm)

33

Maximum Voltage(V)

15

Peak Current (A)

25

Maximum Power (W)

350

Rotational Degree

360

Motor KV (RPM/V)

2300 KV

No Load Current (mA)

0.6A @10V

Shaft Diameter (mm)

5

Compatible Propellers Size (inch)

5 inch Propeller

Compatible LiPO Batteries

2S-3S Lipo Batterries
