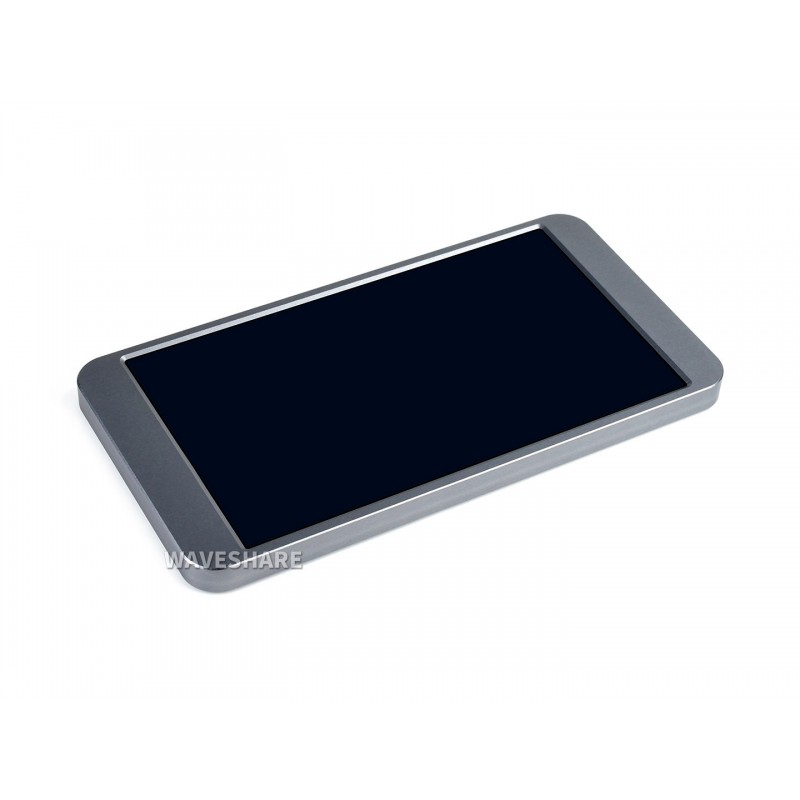

7inch Universal Portable Touch Monitor, 1080×1920 Full HD, IPS, HDMI, Optical Bonding / AF Coating Screen

This is a Full HD Universal Portable Touch Monitor With Fully Laminated / AF Coating Screen by waveshare, with a resolution of 1080 x 1920, and a capacitive touch panel, which supports Raspberry Pi, Jetson Nano, Windows, Game console and can also be used as a computer monitor. This product supports Supports Windows 11 / 10 / 8.1 / 8 / 7. 5-points touch, driver free.

Useful link:

To use this display , please follow this tutorial for hardware setup.
After hardware setup, please follow this tutorial for software setup.

Connection Diagram:

Features:

1. 7-inch IPS screen with a hardware resolution of 1080×1920.(up to 178° viewing angle)
2. 5-points capacitive touch control, toughened glass panel, 6H hardness.
3. Display interface: Mini HDMI; Touch interface: USB.
4. It uses full lamination and AF anti-fingerprint touch technology, and the use effect becomes better.
5. Supports popular mini PCs such as Raspberry Pi, Jetson Nano.
6. Using Raspberry Pi, it supports Raspbian / Ubuntu / Kali and Retropie, no need to install any drivers.
7. Using as a computer monitor, it supports Windows 10 / 8.1 / 8 / 7, five-point touch, no need to install any drivers.
8. HDMI audio input, 3.5mm headphone/speaker jack.
9. Embedded ferrite Hi-Fi speaker.
10. Full metal CNC alloy shell.

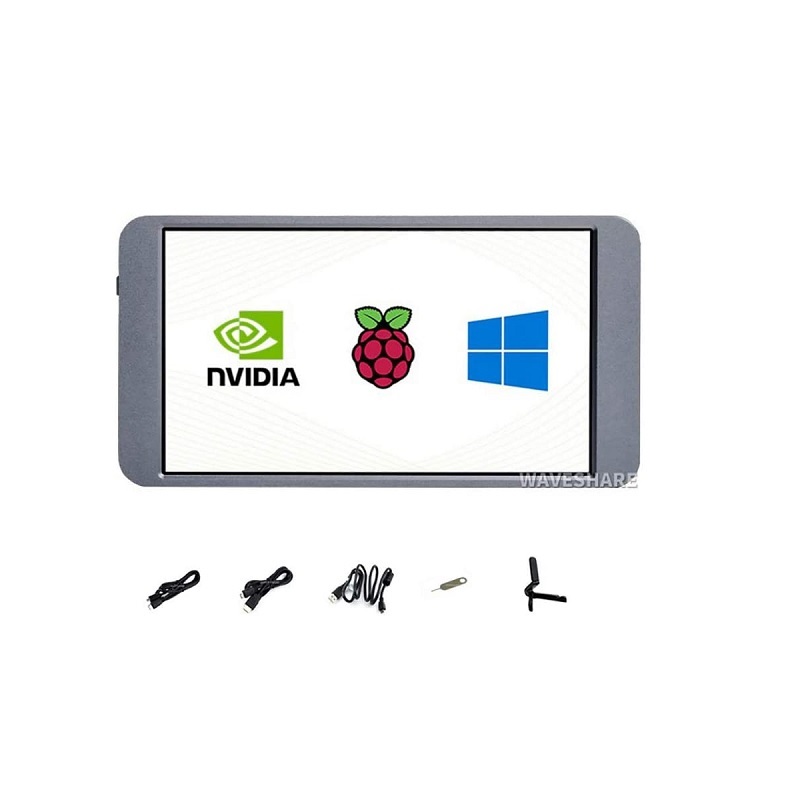

Package Includes:

1 x 7inch FHD Monitor

1 x HDMI to Micro HDMI cable

1 x HDMI cable

1 x USB-A to Micro-B cable

1 x Eject pin key

1 x Triangular stand
