Waveshare 4inch HDMI Capacitive Touch IPS LCD Display (C), 720×720, Fully Laminated Screen

SKU: 1219052
In Stock

5,699.00

  1. Size: 4″
  2. Resolution: 720×720
  3. Display Port: HDMI
  4. Display Panel: IPS
  5. Viewing Angle: 170°
  6. Touch Type: Capacitive
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

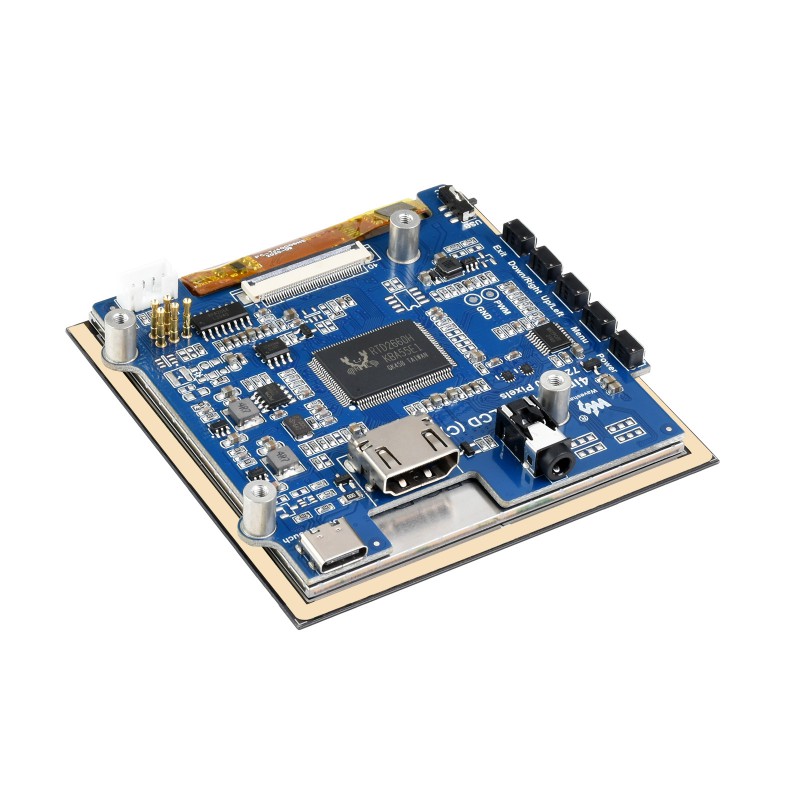

4inch HDMI Capacitive Touch IPS LCD Display (C), 720×720, Fully Laminated Screen

Features:

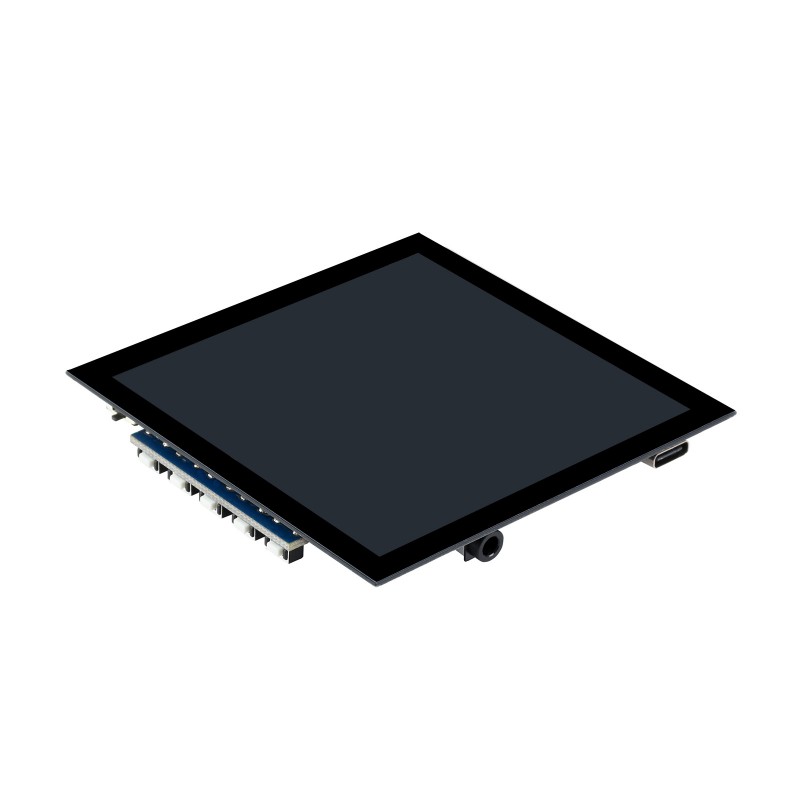

  1. 4-inch IPS screen, hardware resolution is 720×720
  2. 5-point capacitive touch, tempered glass panel, hardness up to 6H

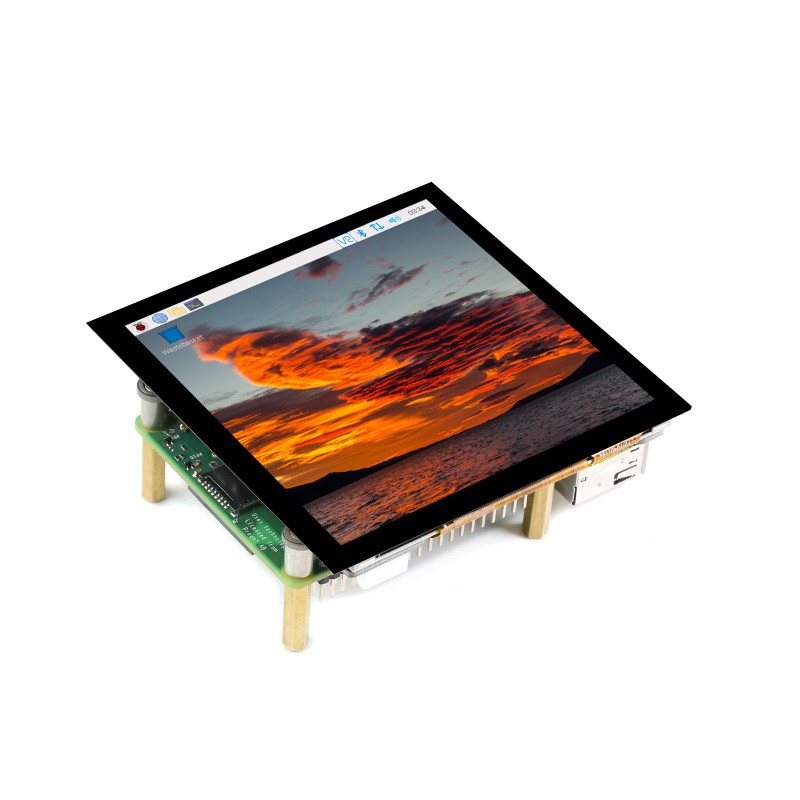

  3. When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and Retropie
  4. Ubuntu is supported when used with Jetson Nano
  5. When used as a computer monitor, supports Windows 11/10/8.1/8/7

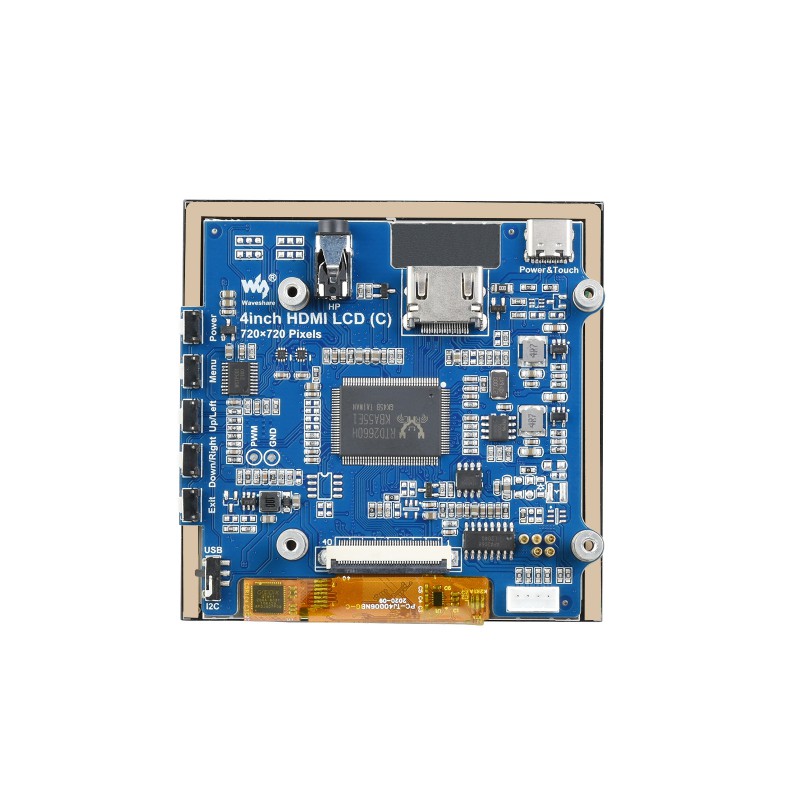

  6. Onboard dual touch circuit, optional USB Type-C or I2C touch, more application scenarios
  7. With 3.5mm audio and speaker interface, support HDMI audio output

Package Includes:

1 x 4inch Hdmi Lcd (C)
1 x Hdmi Adapter (C)
1 x Hdmi Adapter (B)
1 x Hdmi Cable
1 x Usb-a To Usb-c Cable
1 x Screws Pack

Additional information

Display Port

HDMI

Display Panel

IPS

View angle

170°

Touch Type

Capacitive

Touch Point

5-Points

Touch Port 1

USB-C

Touch Port 2

I2C

Touch Pannel

Toughened Glass

Touch Panel Tech

Fully Laminated

OSD Menu

Brightness/Contrast

Audio Output

3.5mm Jack

Audio Output 2

4PIN Header

Resolution

720×720

size

4
