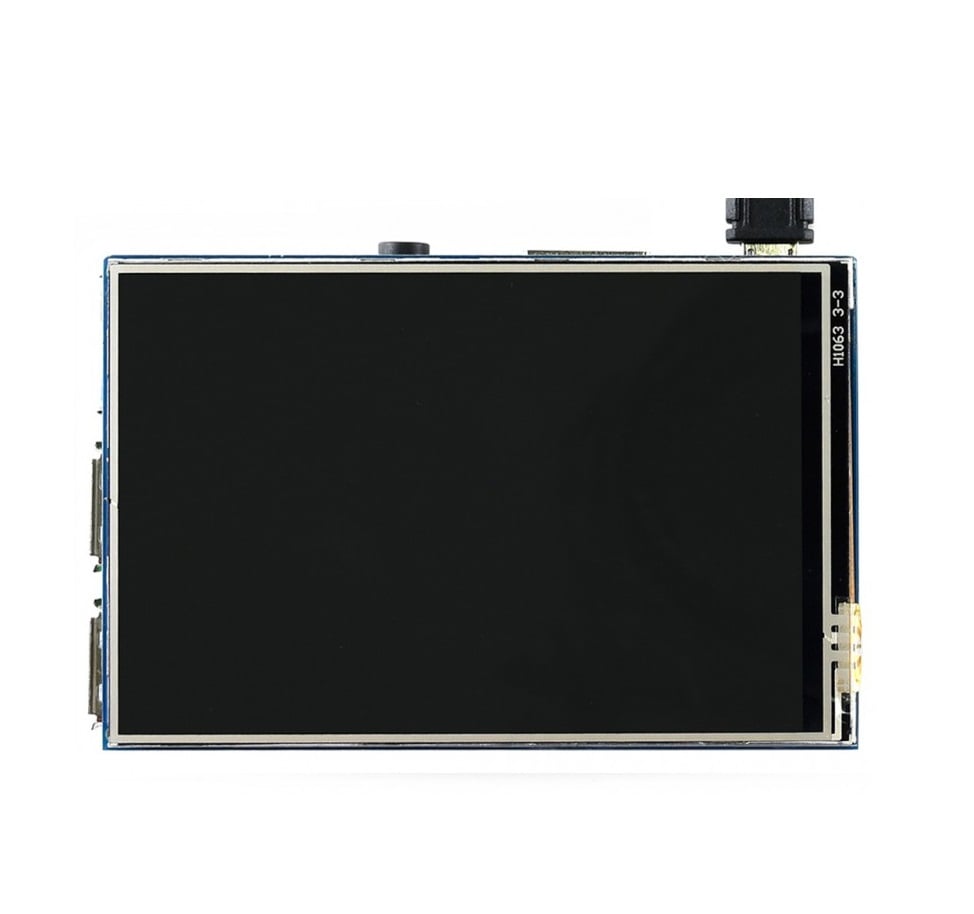

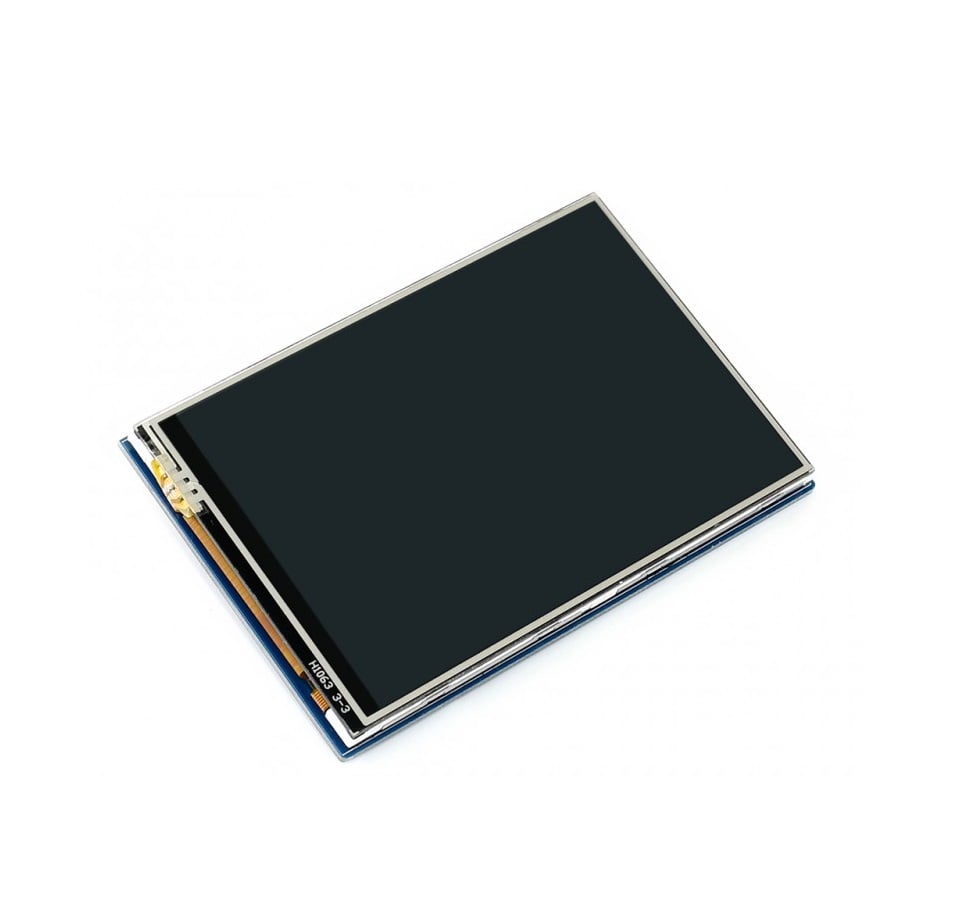

Waveshare 3.5inch Resistive Touch Display (B) for Raspberry Pi, 480×320, IPS Screen, SPI

SKU: 1219051
In Stock

2,349.00

  1. Size: 3.5″
  2. Resolution: 480×320
  3. Display Port: SPI
  4. Display Panel: IPS
  5. Viewing Angle: 160°
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Category:

Description

3.5inch Resistive Touch Display (B) For Raspberry Pi, 480×320, IPS Screen, SPI

3.5inch RPi LCD (A) and 3.5inch RPi LCD (B) are hardware compatible with each other (uses different driver), and can be mutually substituted in most cases. (A) for low-cost while (B) for IPS  with better displaying.



3.5″ Touch Display



Display Viewing Angle







Touch Control





Appearance And Dimensions


Features:

  1. 480×320 hardware resolution
  2. Resistive touch control
  3. Consumption: Lower Power
  4. It is compatible and can be directly inserted in any version of Raspberry Pi.
  5. IPS screen with large viewing angle and outstanding display effect.
  6. Drivers provided (works with your own Raspbian/Ubuntu/Kali and Retropie system directly)
  7. Support FBCP software driver, can set the software resolution and dual screen display.
  8. Gold sinking process, fine carving.

Package Includes:

1 x 3.5inch RPi LCD (B)
1 x Touch pen
1 x RPi screws pack (2pcs)
1 x Quick start sheet

Additional information

Display Resolution

480×320

Display Port

SPI

Display Panel

IPS

Viewing Angle

>160°

Touch Type

Resistive

Touch Screen Controller

XPT2046

Aspect Ratio

8:5

Size

3.5
