Waveshare Aluminum Case (Type F) for the Jetson Nano Development Kit
₹2,745.37 – ₹3,119.75 (Including tax)
Waveshare 5G DONGLE Module, quad antennas, USB3.1 port, Aluminum Alloy Heatsink, M.2 Key B Interface
₹2,840.91 – ₹3,228.31 (Including tax)
Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
₹10,718.95 (Including tax)

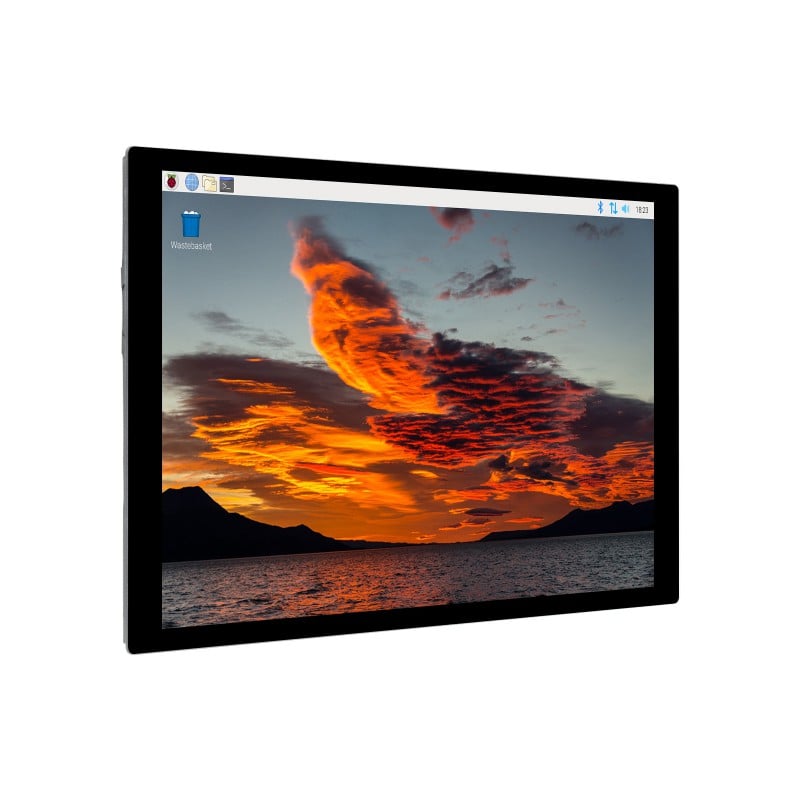

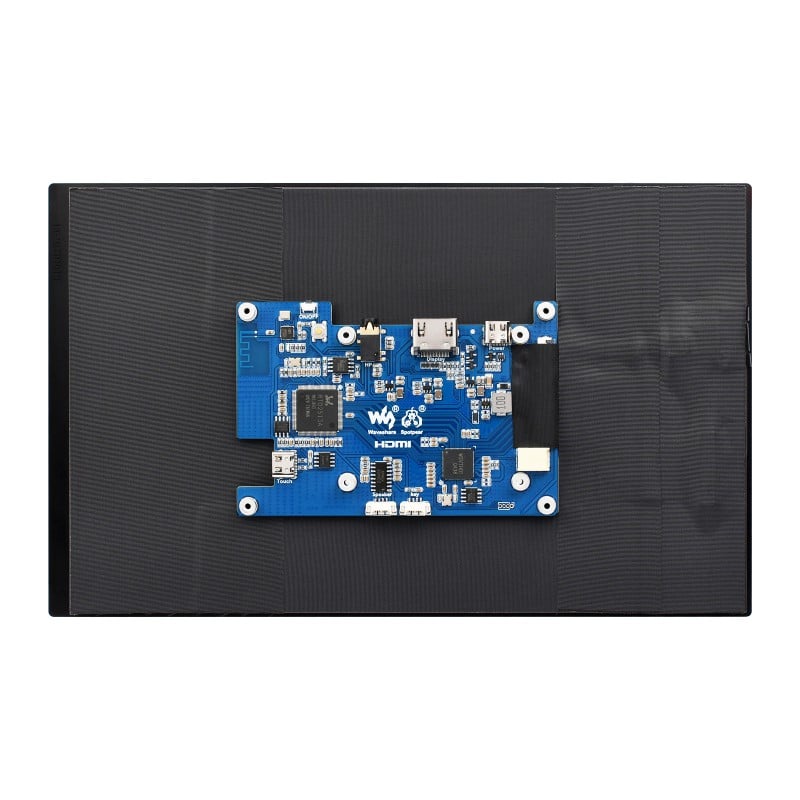

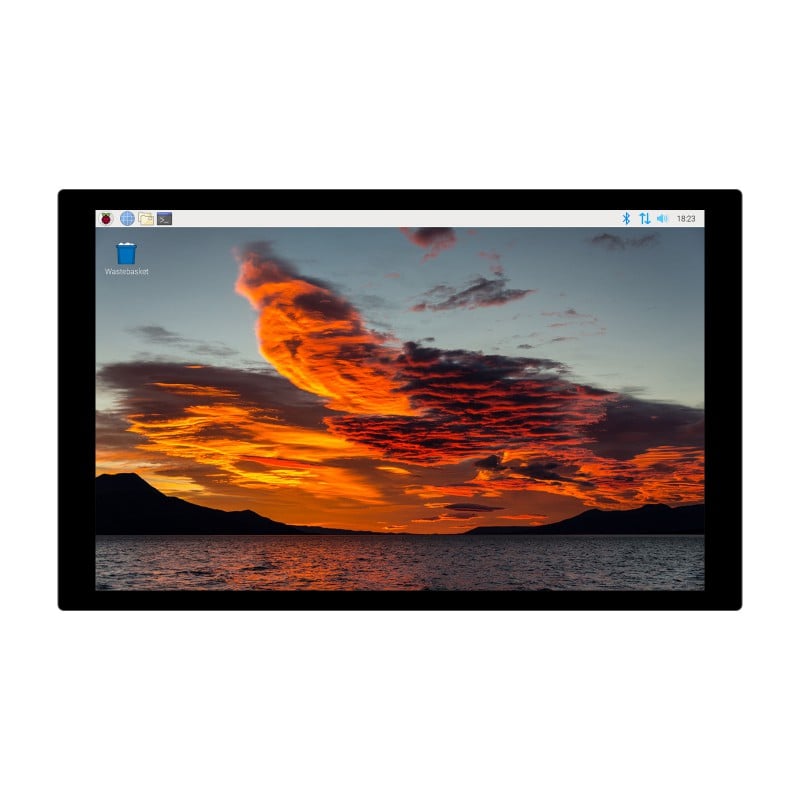

- Product: Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
- Refresh rate: 60 Hz
- DSI port Standard HDMI port /
- Power port: 5V Type-C /
- Power consumption: 4
Discount per Bulk Quantity
| Quantity | Discount | Price |
|---|---|---|
| 5 - 10 | 5% | ₹10,183.00 (Including tax) |
| 11 - 20 | 8% | ₹9,861.42 (Including tax) |
| 21 - 40 | 10% | ₹9,647.05 (Including tax) |
| 41 - 100 | 12% | ₹9,432.67 (Including tax) |
Out of stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
14
People watching this product now!
Description
10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface. The Waveshare 10.1inch Capacitive Touch Display is a high-quality display panel with a capacitive touch interface, making it ideal for use in a variety of applications, including industrial automation, digital signage, and gaming.
The display features a 1280×800 pixel resolution with an IPS (in-plane switching) panel, which provides excellent color accuracy, wide viewing angles, and high contrast ratio. The display also uses optical bonding technology to bond the touch panel and the toughened glass panel together, which eliminates the air gap between the panels and reduces the reflection, resulting in improved image clarity and better touch sensitivity.
Features:
- 10.1-inch IPS screen with a hardware resolution of 1280 x 800.
- 10-point capacitive touch, with tempered glass panel, hardness up to 6H.
- Using optical bonding touch technology, the display effect is better.
- Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
- Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
- Support multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
- Support HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.
Specifications:
- Model: 10.1DP-CAPLCD /
- Size: 10.1 Inch
- Viewing angle: 178 Deg
- Resolution: 1280 x 800 Pixels
- Touch panel dimensions: 239.00 (H) × 147.00 (V) × 2 (D) mm
- Display panel dimensions: 228.6 (H) × 143.0 (V) × 2.60 (D) mm
- Display area: 135.36 (H) × 216.58 (V) mm
- Pixel pitch: 0.1175 (H) × 0.1088 (V) mm
- Color gamut: 58% NTSC
- Maximum brightness: 350 cd/m²
- Contrast: 800:1 /
- Backlight: adjustment: OSD menu adjustment
- Refresh rate: 60 Hz
- DSI port Standard HDMI port /
- Power port: 5V Type-C /
- Input Current: 750-800 mA
- Power consumption: 4
Package Includes:
1 x Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
Reviews (3)
3 reviews for Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Shipping & Delivery
Shipping and Delivery Policy
1. Shipping Process:
- Orders are processed within 1-2 business days after payment confirmation.
- Delivery time varies based on location and selected shipping method, typically ranging between 3-7 business days.
- We partner with trusted courier services to ensure timely and safe delivery.
2. Shipping Charges:
- Shipping charges are calculated at checkout based on the delivery location and package weight.
- Free shipping may be available for orders above a specified amount, as mentioned on our website.
3. Order Tracking:
- Once your order is shipped, you will receive a tracking ID via email or SMS to monitor the shipment status.
4. Delivery Address:
- Please provide a complete and accurate delivery address to avoid delays.
- We are not responsible for delivery failures due to incorrect or incomplete address details provided by the customer.
5. Delivery Issues:
- If a package is delayed, lost, or damaged during transit, please contact our support team immediately.
- Claims for lost or damaged items must be reported within 48 hours of delivery.
6. No Return Policy for Opened/Soldered Products:
- We do not accept returns for products that have been opened, used, or soldered.
- Ensure you verify product compatibility before purchase, as returns will only be accepted for unopened and unused items in their original packaging.
7. Refund Policy:
- Refunds will be issued only for canceled orders before shipment or wrong/damaged items received (subject to investigation).
- No refunds or replacements for products that have been tampered with, soldered, or physically damaged by the customer.
