Capacitive touch screen technology USES the human body’s current induction to work. The capacitive touch screen is a four-layer composite glass screen. The inner surface of the glass screen and the interlayer are coated with one layer of ITO respectively, This conductive material responds when contacted by another electrical conductor, like your bare finger. When you touch your screen, an electric circuit is completed at the point where your finger makes contact, changing the electrical charge at this location.

Most mobile phones have both types of screens. A capacitive touchscreen is a type of touchscreen that is as transparent as glass and does not display any content or glow, it is used to sense the user’s touch actions. The TFT screen is the real screen. This is a10.1 Inch Capacitive Touch Screen LCD from waveshare, with a resolution of 1024×600 and a capacitive touch panel, which supports Raspberry Pi, Jetson Nano, Windows, and Game consoles and can also be used as a computer monitor. This product supports Windows 10 / 8.1 / 8 / 7, Raspbian / Ubuntu / Kali / Retropie, and WIN10 IoT systems single-point touch.

NOTE : This is the bare display version of Wave share 10.1inch Capacitive Touch Screen LCD (H) with Case, 1024×600, HDMI, Various Systems Support (SKU 968448)

1. 10.1 Inch Capacitive Touch Screen LCD display.
2. 1024 x 600 screen resolution and IPS display panel.
3. Various Systems & Devices Support, Including Raspberry Pi, Jetson Nano, PC, etc.
4. Polycarbonate Enclosure.
5. Multi-video input interfaces: HDMI, VGA, and AV(CVBS)
6. 1024×600 high resolution.
7. Capacitive touch control.
8. When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free.
9. When working as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free.
10. Supports BB Black, and comes with an Angstrom image.
11. Multi-language OSD menu, for power management, brightness/contrast adjustment, etc.
12. Supports 100-level backlight adjustment.
13. Firmware is upgradable to support more new features (continually updated).

Packages Includes:

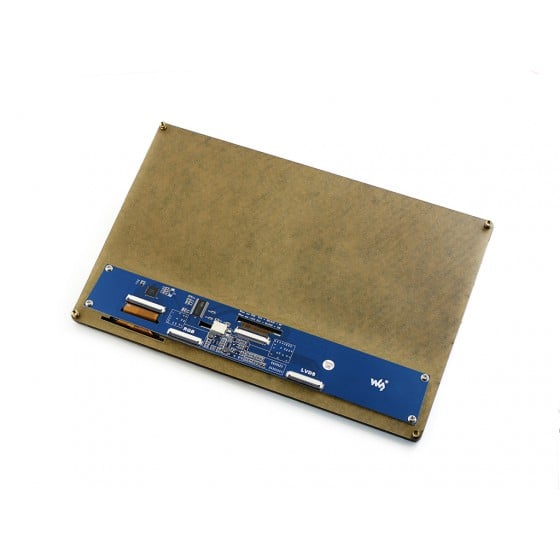

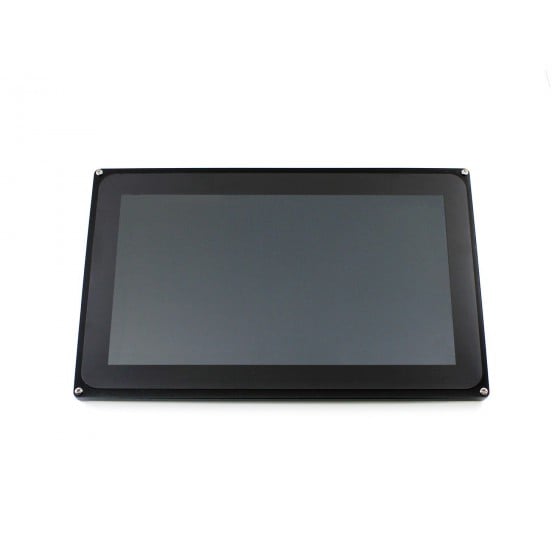

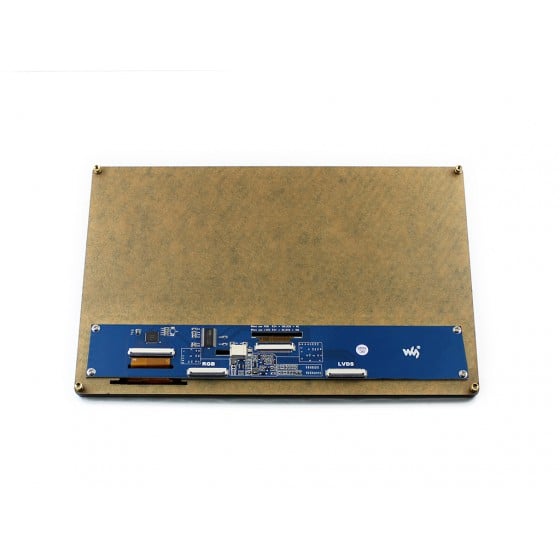

1 x Waveshare 10.1inch Capacitive Touch LCD (D) 1024×600

10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface. The Waveshare 10.1inch Capacitive Touch Display is a high-quality display panel with a capacitive touch interface, making it ideal for use in a variety of applications, including industrial automation, digital signage, and gaming.

The display features a 1280×800 pixel resolution with an IPS (in-plane switching) panel, which provides excellent color accuracy, wide viewing angles, and high contrast ratio. The display also uses optical bonding technology to bond the touch panel and the toughened glass panel together, which eliminates the air gap between the panels and reduces the reflection, resulting in improved image clarity and better touch sensitivity.

Features:

1. 10.1-inch IPS screen with a hardware resolution of 1280 x 800.
2. 10-point capacitive touch, with tempered glass panel, hardness up to 6H.
3. Using optical bonding touch technology, the display effect is better.
4. Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
5. Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
6. Support multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
7. Support HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.

Specifications:

1. Model: 10.1DP-CAPLCD /
2. Size: 10.1 Inch
3. Viewing angle: 178 Deg
4. Resolution: 1280 x 800 Pixels
5. Touch panel dimensions: 239.00 (H) × 147.00 (V) × 2 (D) mm
6. Display panel dimensions: 228.6 (H) × 143.0 (V) × 2.60 (D) mm
7. Display area: 135.36 (H) × 216.58 (V) mm
8. Pixel pitch: 0.1175 (H) × 0.1088 (V) mm
9. Color gamut: 58% NTSC
10. Maximum brightness: 350 cd/m²
11. Contrast: 800:1 /
12. Backlight: adjustment: OSD menu adjustment
13. Refresh rate: 60 Hz
14. DSI port Standard HDMI port /
15. Power port: 5V Type-C /
16. Input Current: 750-800 mA
17. Power consumption: 4

Package Includes:

1 x Waveshare 10.1inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface

The TFT Display Shield Board (CY8CKIT-028-TFT) has been designed such that a TFT display, audio devices, and sensors can interface with Cypress’ PSoC 6 MCUs. It comes with the features below to enable everyday objects to connect to the Internet of Things (IoT).

Note: For more technical details go through Datasheet In the attachment Section

Features:

1. Newhaven 2.4″ 240 x 320 TFT display with a Sitronix ST7789 display controller
2. Motion sensor
3. Ambient light sensor
4. PDM microphone

Package Includes:

1 x CYPRESS – INFINEON TECHNOLOGIES Development Board, Display Shield for PSoC6 Development Kits, 2.4″ TFT

The gen4–4DPi range are Primary Display’s for the Raspberry Pi A+, B+, Pi2, Pi3, Pi3 B+, Pi4, Pi Zero, Pi Zero W and Pi Zero 2 W, which display the primary output of the Raspberry Pi, like what is normally sent to the HDMI or Composite output. It features an integrated Resistive Touch panel or Capacitive Touch panel, enabling the gen4–4DPi to function with the Raspberry Pi without the need for a mouse. Communication between the gen4–4DPi and the Raspberry Pi is interfaced with a high speed 48 MHz SPI connection, which utilises an on–board processor for direct command interpretation and SPI communication compression, and features a customized  DMA enabled kernel. This combination allows this display to output high frame rate compared to other SPI display solutions, when displaying a typical image/video, and can achieve higher depending on if the image can be compressed. The gen4–4DPi is designed to work with the Raspberry Pi Operating System (previously named Raspbian OS) running on the Raspberry Pi, as that is the official Raspberry Pi operating system. It is also compatible with Pixel and Scratch. Please note that the display resolution of the 4.3” is 480×272 pixels, while the 5.0 and the 7.0” are 800×480 pixels, and thus may not display all menus in the desktop fully, without some down-scaling. The gen4–4DPi range connect to the Raspberry Pi’s 40 pin header using the gen4–4DPi Adaptor, which then connects to the gen4–4DPi display module using a 30– way FFC Cable.
Note*: Raspberry Pi is a trademark of the Raspberry Pi Foundation, and all references to the words ‘Raspberry Pi‘ or the use of its logo/marks are strictly in reference to the Raspberry Pi product, and how this product is compatible with but is not associated with the Raspberry Pi Foundation in any way.

Features:

1. Universal Primary Display for the Raspberry Pi.

2. Compatible with Raspberry Pi A+, B+, Pi2, Pi3, Pi3 B+, Pi4, Pi Zero, Pi Zero W and Pi Zero 2 W.

3. 480×272 Resolution (4.3”)

4. 800×480 Resolution (5.0” & 7.0”)

5. TFT Screen with integrated 4–wire Resistive Touch Panel (T), or Capacitive Touch Panel (CT) with Cover Lens Bezel (CLB)

6. Display GUI output / primary output, just like a monitor connected to the Raspberry Pi

7. High Speed 48MHz SPI connection to the Raspberry Pi, featuring SPI compression technology

8. Typical frame rate of 20 Frames per second (FPS) – 4.3”, or 7 Frames per second (5” & 7”), higher if image can be compressed further by the kernel. Lower if no compression is possible

9. Powered directly off the Raspberry Pi, no external power supply is required

10. On board EEPROM for board identification, following the HAT standard

11. 4x 4.0mm Mounting holes on Non–Touch and Resistive Touch modules, or via adhesive for Capacitive Touch model

12. RoHS and CE Compliant – note CE EMC has not been conducted on these modules

Packages Includes:

1 x 4D System 5.0″ gen4 Primary Display with Resistive Touch compatible with Raspberry Pi

Capacitive touch screen technology USES the human body’s current induction to work. The capacitive touch screen is a four-layer composite glass screen. The inner surface of the glass screen and the interlayer are coated with one layer of ITO respectively, This conductive material responds when contacted by another electrical conductor, like your bare finger. When you touch your screen, an electric circuit is completed at the point where your finger makes contact, changing the electrical charge at this location.

Most mobile phones have both types of screens. A capacitive touchscreen is a type of touchscreen that is as transparent as glass and does not display any content or glow, it is used to sense the user’s touch actions. The TFT screen is the real screen. This is a10.1 Inch Capacitive Touch Screen LCD from waveshare, with a resolution of 1024×600 and a capacitive touch panel, which supports Raspberry Pi, Jetson Nano, Windows, and Game consoles and can also be used as a computer monitor. This product supports Windows 10 / 8.1 / 8 / 7, Raspbian / Ubuntu / Kali / Retropie, and WIN10 IoT systems single-point touch.

Applications:

1. Industrial Control
2. Charging Pile
3. Smart Home
4. Medical
5. Internet of Things
6. Robot,
7. Vehicle-mounted instruments,
8. Vending instruments
9. Intelligent CNC, cosmetic instruments

Features:

1. 1024×600 high resolution.
2. Capacitive touch control.
3. When works with Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free.
4. When working as a computer monitor, supports Windows 10/8.1/8/7/XP, single touch, and driver free.
5. Supports BB Black, and comes with an Angstrom image.
6. Multi-language OSD menu, for power management, brightness/contrast adjustment, etc.
7. Supports 100-level backlight adjustment.
8. Firmware is up-gradable to support more new features (continually updated).

Specifications:

1. LCD Type: IPS
2. Interface: RGB
3. Touch Controller: GT7385
4. Touch Panel Type: Capacitive (10-point touch)
5. Backlight: LED
6. Display Size: (mm) 223.00 × 125.28
7. Dot Pitch (mm): 0.2175 × 0.2088
8. Aspect Ratio: 16:9
9. Resolution: 1024 × 600 (Pixel)
10. Power Consumption: TBD
11. Backlight Current: TBD
12. Operating Temperatur:e 0 ~ 70℃

 Packages Includes:

1 x Waveshare 10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel

8DP-CAPLCD is a mini universal capacitive touch screen with HD resolution and is compatible with most standard HDMI devices.
As it is thin and light with toughened glass capacitive touch panel, 8DP-CAPLCD is excellent in display and has a smooth multi-touch effect.
The baseboard comes with fixed nuts, which enables users to integrate it into an all-in-one project more conveniently.

Features:

1. 8-inch IPS screen with a hardware resolution of 1280 x 800.
2. 10-point capacitive touch, with tempered glass panel, hardness up to 6H.
3. Adopting optical bonding touch technology, the display effect is better.
4. Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
5. Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
6. Support multi-language OSD menu (can be used for power control, adjusting brightness/contrast, etc.)
7. Support HDMI audio output, onboard 3.5mm headphone jack, and 4PIN speaker jack.

Specifications:

1. Model: 8DP-CAPLCD
2. Input Voltage 4.75- 5.25 V
3. Input Current 750 800 TBD
4. Viewing Angle: 178
5. Resolution: 1280 x 800
6. Touch screen dimensions: 194.00 (H) × 119.00 (V) × 2 (D)
7. Display dimensions: 114.66 (H) × 184.16 (V) × 2.6 (D)
8. Display area: 107.64 (H) × 172.22 (V)
9. Pixel pitch: 0.13455 (H) × 0.13455 (V)
10. Color gamut: 62%
11. Maximum brightness: 400
12. Contrast: 1200:1
13. Backlight adjustment: OSD menu dimming
14. Refresh Rate: 60 Hz
15. Display port: Standard HDMI port
16. Power port: 5V Type-C power supply
17. Power Consumption: 4

Package Includes:

1 x  Waveshare 8inch Capacitive Touch Display, Optical Bonding Toughened Glass Panel, 1280×800, IPS, HDMI Interface
