When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, the NKCP series pumps come in a plastic enclosure with the speed controller to adjust the flow rate of the pump, which squishes a silicone tube to produce the pump-action instead of impelling it directly, thus no direct contact with the liquid. This pump requires a 24 V DC supply and can produce a flow rate up to 17-50ml per minute.

Application:

1. Transferring ink in the printer
2. Water transfer from the aquarium
3. Laboratory experiment

Features:

1. High flow
2. High negative pressure
3. Easy to maintenance
4. Chemical stability
5. Long life
6. High repeatability

7. Working conditions: Temperature 0~40℃, humidity <80%

8. Pump tube selection: Silicone tube, imported Norprene® tube

9. Transmission mode: Planetary gear transmission, reduction ratio 1:8

10. Pump head: The upper cover is made of engineering plastics, the pump body

11. PA and gears are made of synthetic engineering plastics

12. Installation method: Straight plate and L plate

Specifications:

1. Model: KCP600-B17-DC motor
2. Power Requirements: Input AC 100-240V 50-60Hz 0.36Max output DC 12V1A
3. Working Condition: Temperature: 0-50ºC humidity: 10%-90%(non -condensing)
4. Power Rating: 12w
5. Display: Break Code Screen
6. Backlight mode: Standard Auto off
7. Key: Membrane Waterproof key
8. Control Interface: Optional: key or RF remote control

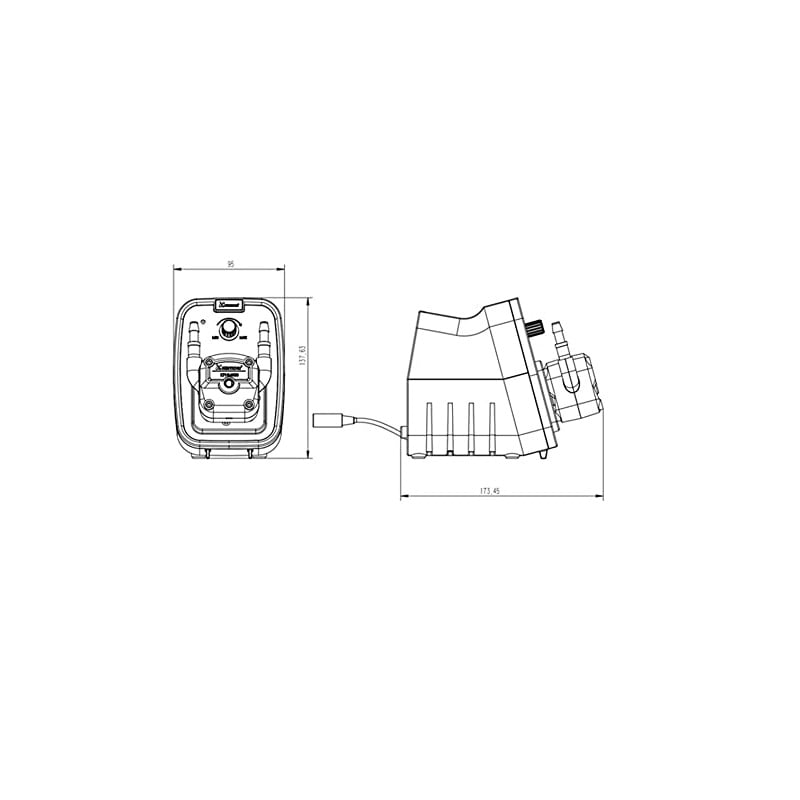

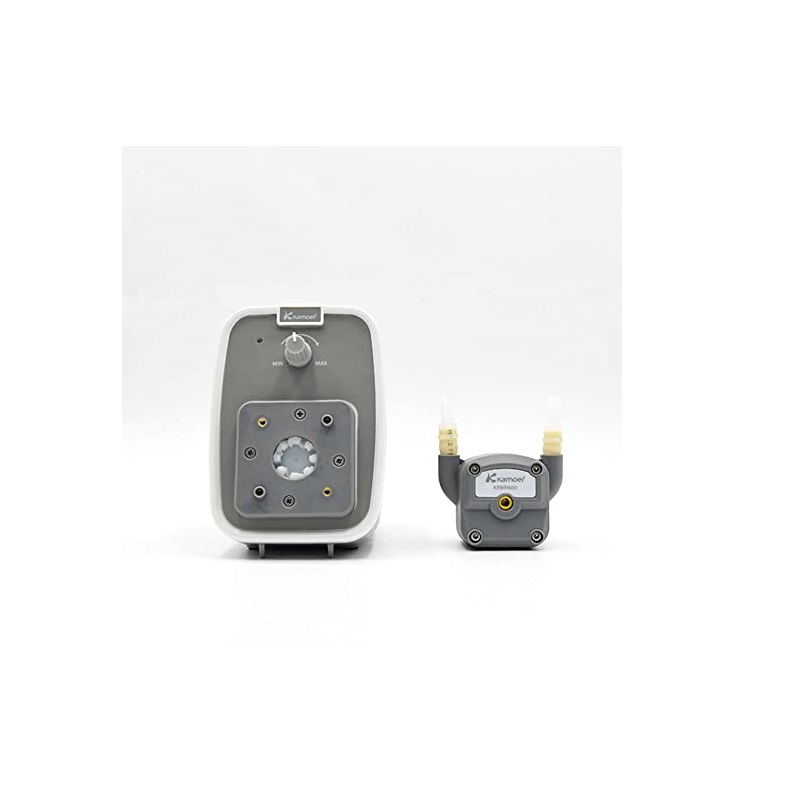

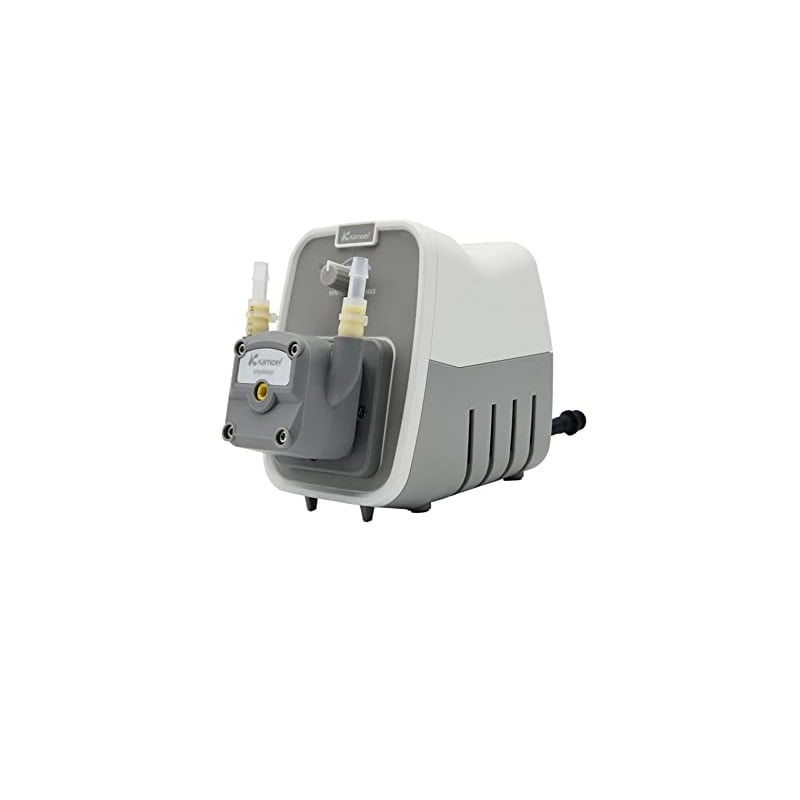

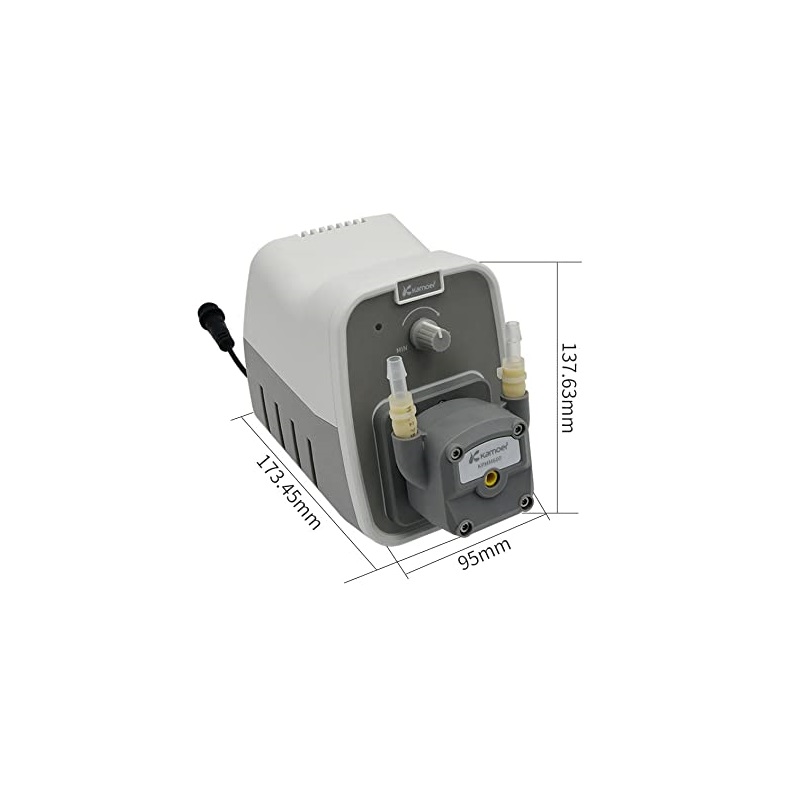

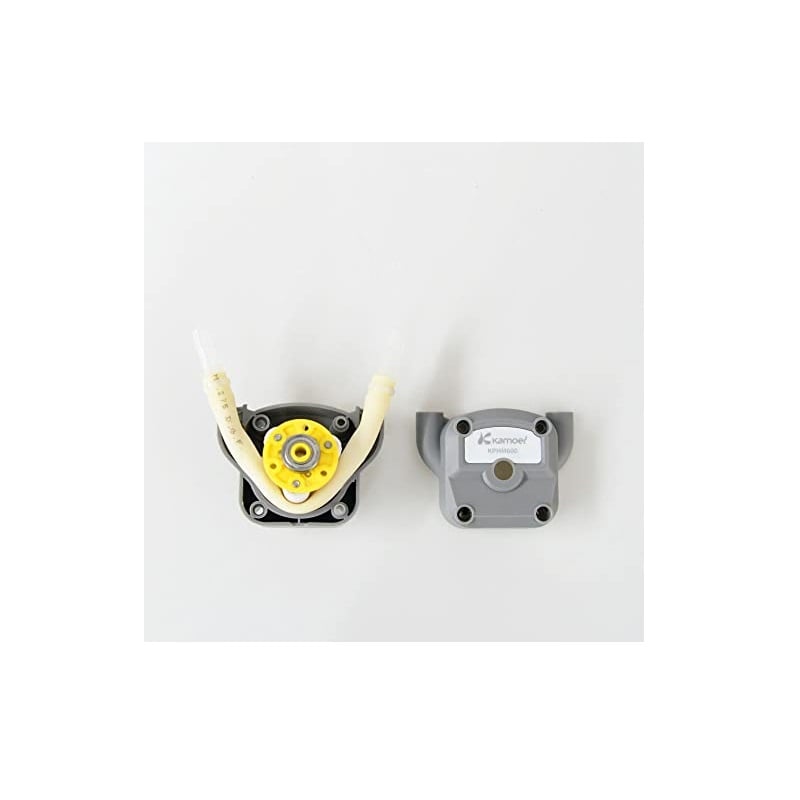

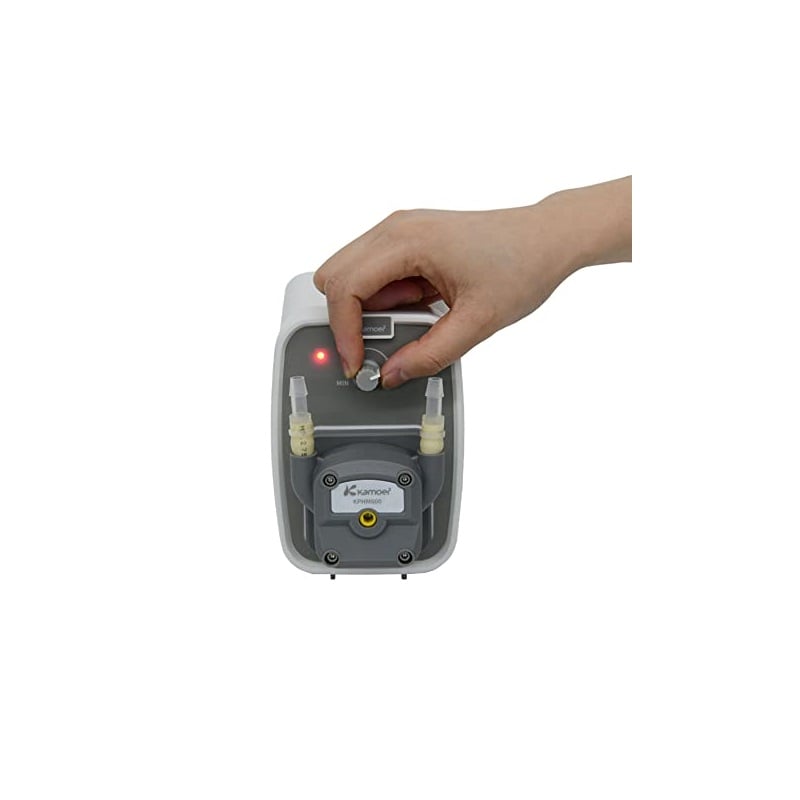

1 x KCP600-B17 Kamoer Lab Pump KCP600 – B17 -250~600ml/min | BPT tube 6.4*9.6mm

It can be used on a variety of Kamoer mini pump, like peristaltic pumps, metering pump, titrimetric   pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good then polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x T Type – 1/8 Connectors

It can be used on a variety of Kamoer mini pump, like peristaltic pumps, metering pump, titrimetric   pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x L Type – 3/16 Connector

The Kamoer EDZP02 Diaphragm Air Vacuum Pump is a compact and durable pump designed for a variety of applications, including vacuum filtration, degassing, and air sampling. It is commonly used in chemistry, biology, and medical laboratories.

The pump is constructed with a high-quality aluminum alloy casing and features a diaphragm design that eliminates the need for lubrication, reducing maintenance requirements. It has a maximum vacuum pressure of 85kPa and a maximum flow rate of 2.5 L/min.

Features:

1. Light Weight
2. Easy to install
3. Easy to handle
4. Fill soft to our hands

Specifications:

1. Pressure: 350mmHg
2. Voltage: DC 2.0V-DC 3.0V, DC 2.0V-DC 3.0V
3. Flow rate: 0.2L/min
4. Noise: 55 dB

Package Includes:

1 x Kamoer EDZP02 Diaphragm Air Vacuum Pump

It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, and titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x One-way Valve – 3/32 Connector

Straight Cycle Type – 1/8 cycle 3/16 Connector, It can be used on a variety of Kamoer mini pumps, like peristaltic pumps, metering pumps, and titrimetric pumps.

Features:

1. Nontoxic, odorless, low density, stiffness.
2. Good mechanical properties, apart from impact resistance, and other mechanical
3.  Properties are good than polyethylene, with good forming properties.
4. Hardness and heat resistance are superior to low-pressure polyethylene

Package Includes:

1 x Straight Cycle Type – 1/8 cycle 3/16 Connector
