Waveshare RP2040 MCU Board, With 1.28inch Round LCD, accelerometer and gyroscope Sensor

20 People watching this product now!

SKU: rz24310363 Category: LCD Displays

Description

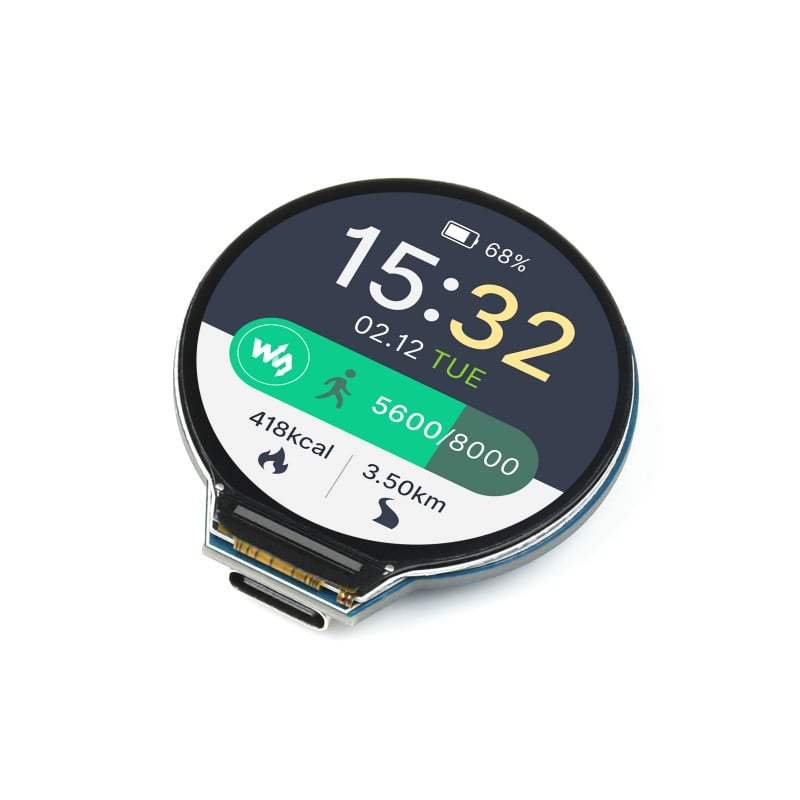

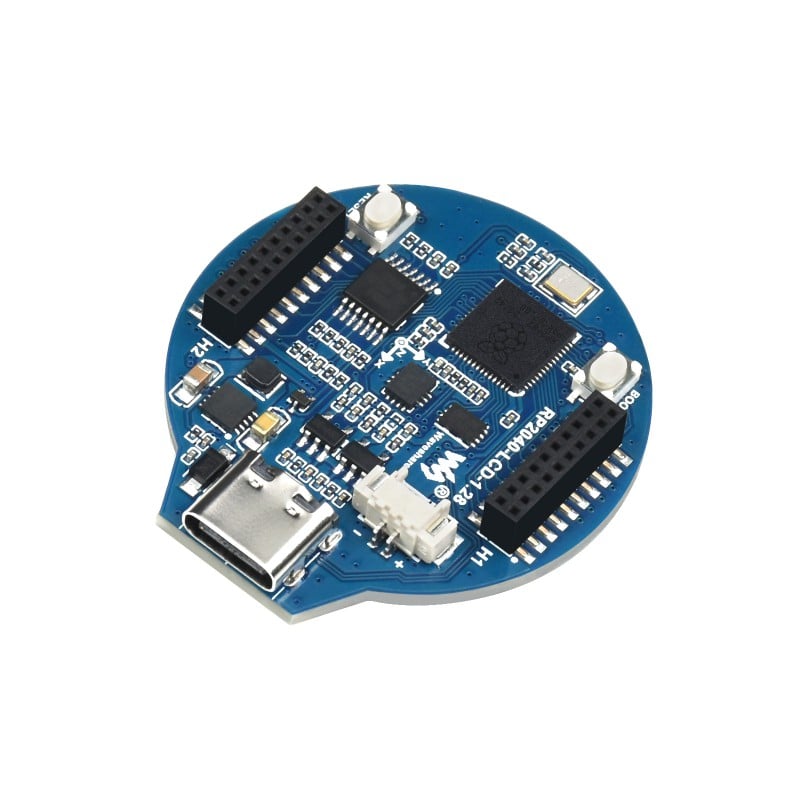

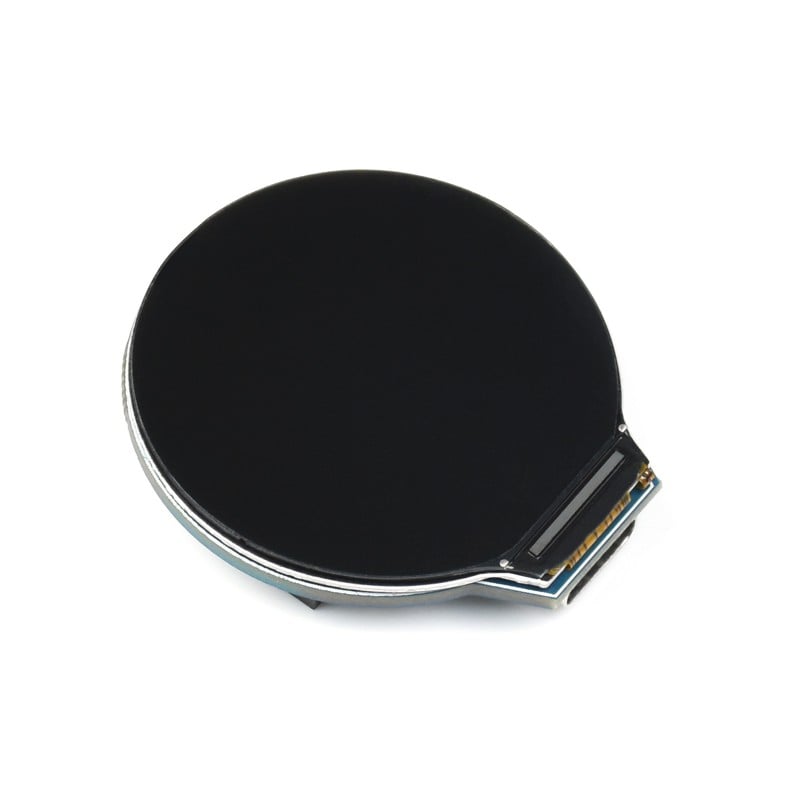

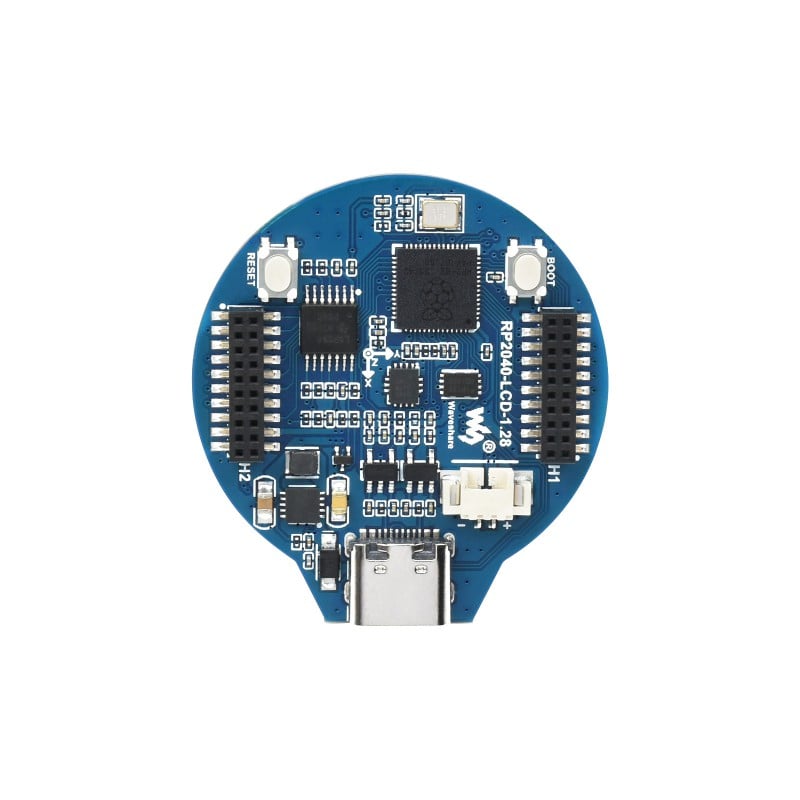

RP2040 MCU Board, With 1.28inch Round LCD, Accelerometer And Gyroscope Sensor. RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.

Features:

RP2040 MCU chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of onboard Flash memory
Type-C connector, keeps it up to date, easier to use
Onboard 1.28-inch 240 x 240 resolution, 65K RGB IPS LCD display for clear color pictures
Lithium battery recharge/discharge header, suitable for mobile devices

Specifications:

Controller: GC9A01A
Resolution: 240 (H) RGB x 240(V)
Communication interface: SPI
Display Size: Φ32.4mm
Display Panel: IPS
Pixel Size: 0.135 (H) x 0.135 (V) mm
Sensor: QMI8658C
Accelerometer Resolution: 16 bits
Measurement Range (optional): ±2, ±4, ±8, ±16g
Gyroscope Resolution: 16 bits
Measurement Range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec

Package Includes:

1 x RP2040 MCU Board, With 1.28inch Round LCD,

Additional information

Controller	GC9A01A
Resolution	240 (H) RGB x 240(V)
Communication interface	SPI
Display type and Size	IPS Φ32.4mm
Pixel Size	0.135 (H) x 0.135 (V) mm
Sensor	QMI8658C
Accelerometer Resolution	16 bits
Measurement Range	(optional): ±2 , ±4 , ±8 , ±16g
Gyroscope Resolution	16 bits
Measurement Range (optional)	±16 , ±32 , ±64 , ±128 , ±256 , ±512 , ±1024 , ±2048°/sec
