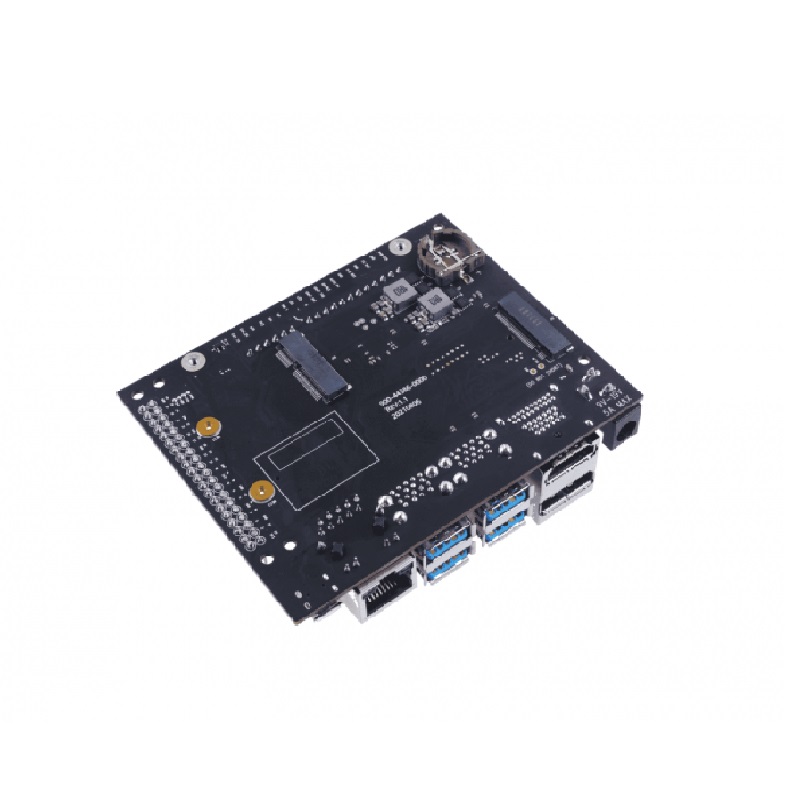

A206 Carrier Board for Jetson Nano/Xavier NX/TX2 NX with compact function design and same size of NVIDIA Jetson Xavier™ NX carrier board

20 People watching this product now!

SKU: rz24313741 Category: Single Board Computer

Description

A206 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, M.2 key E wi-fi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fans, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA Jetson Xavier™ NX DEVELOPER KIT.

Basically, it can work with an NVIDIA Jetson module mentioned above to achieve graphic AI applications. To be more specific, with the NVIDIA Jetson Nan/Xavier NX/TX2 NX module assembled, it could support NVIDIA Jet Pack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA cuDNN, and Tensor RT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is suitable for complicated AI graphical applications such as Automated Optical Inspection, In Video Action, Robot control, Drone, etc. Overall, A206 is ideal for software development within the Linux environment. Standard connectors are used to access Jetson Xavier NX features and interfaces, enabling a highly flexible and extensible development platform

Application:

Industrial Automation
Robotics
Computer Vision
Drone
Automated Optical Inspection

Features:

Exact same size and functional design as Nvidia’s official carrier board
Higher performance stability consists of 4 USB ports and HDMI+DP ports
Data can be saved for 24 hours after the power is cut off if batteries are increased
High versatility, suitable for complicated AI graphical applications
Certificate: FCC, CE, RoHS

Packages Includes:

1 x A206 Carrier Board
1 x Power Adapter 90W 19V (Power cable not included)

Additional information

Brand	Seeed Studio
Product Name	A206 carrier board
Module Compatibility	– Jetson Nano – Jetson Xavier NX – Jetson TX2 NX
Display	2x HDMI Right Angle Vertical Connector
CSI Camera	2x CSI (15 pos , 1mm pitch , MIPI CSI-2 )
Ethernet	1x Gigabit Ethernet (10 \100 \1000M)
M.2 Key M	1x M.2 Key M (75-pin) NVME 2280
M.2 Key E	1x M.2 Key E (75-pin)
USB	4x USB 3.0 Type-A (Integrated USB 2.0) + 1x USB Micro B , RA Female (Not support power input)
Multifuncation Port	1x 2.0 Pitch 40-Pin
FAN	1x FAN(5V PWM)
RTC	1x RTC Back-up Coin Cell Socket (CR1225)(Battery not included)
So-DIMM	260 Pin
Power	DC 19V
Battery	1x 3V backup battery
CAN	1x CAN Bus Header (1×4 , 2.54mm pitch , RA)
Button Header	1x Button Header (1×12 , 2.54mm pitch , RA)
SPI Bus	2x SPI Bus(+3.3V Level)
Dimensions	100mm*80mm
