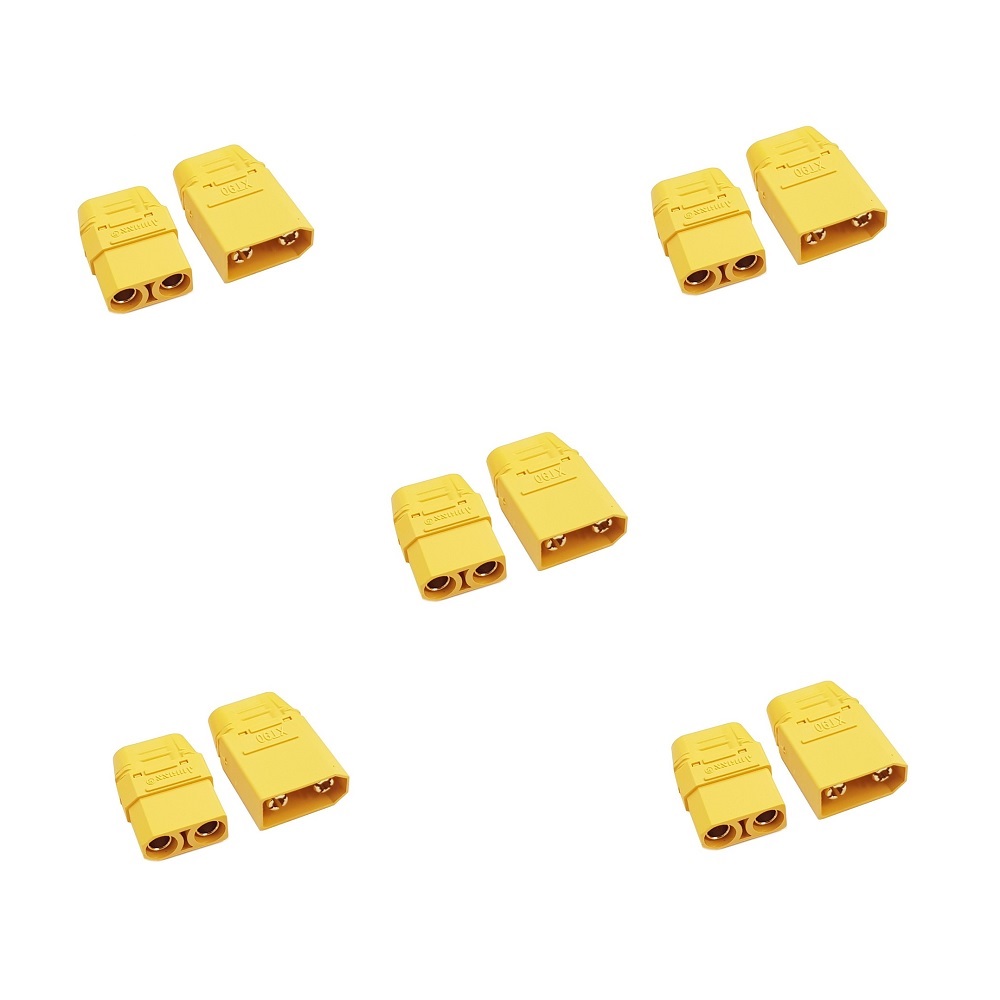

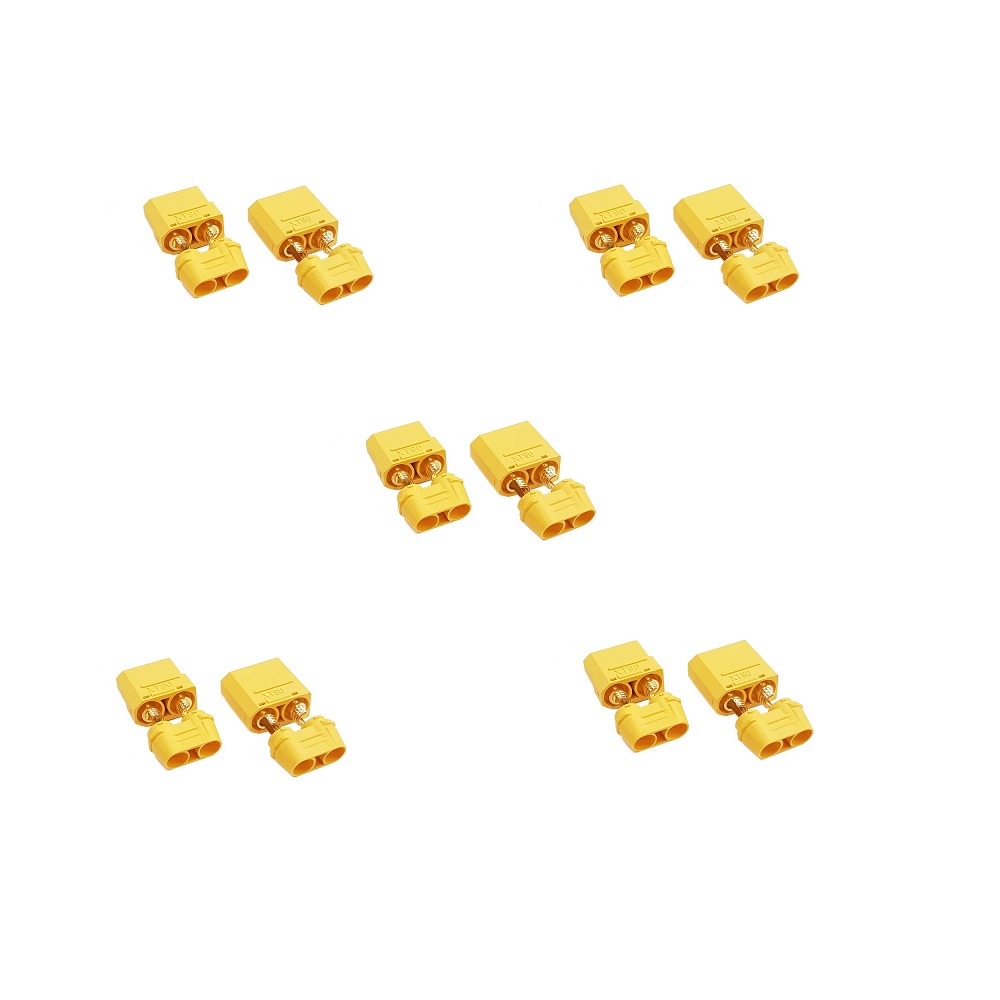

Amass XT90 Male-Female Connector pair with Housing-5Pair
₹523.00
- Connector type: XT90 Mail-Female pair
- Metal connector size: 4.5mm
- Housing shape provides protection against shorting and reverse polarity
- Can accept up to 8AWG wires
- Able to sustain 90A+ continuous current.
Did you like this product? Add to favorites now and follow the product.
+91-7231900002 Connect on Whatsapp
Description
XT90 Connector pair with Housing is made from high-temp Nylon and gold plated spring connectors, both included in the injection mold at the time when forming the connector. The XT90 ensures a solid high-amp connection, perfect for applications up to and beyond 90A constant.
These connectors offer a tight fit, ensuring a solid connection for minimal resistance. This means that more power gets from your pack to your power system when compared to other plugs currently on the market. Don’t starve your high-amp power system, switch to XT90 connectors today!
These original Nylon XT90 plugs, manufactured by AMASS, can handle over 90A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.
IMPORTANT: “These are not cheap copied XT90 plugs. These original Nylon XT90 plugs, manufactured by AMASS, can handle over 90A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90 plugs.”
Specifications and Features:
- Housing shape provides protection against shorting and reverse polarity
- Can accept up to 8AWG wires
- Semicircular solder terminals make it easy to install wires
- Able to sustain 90A+ continuous current.
Package Includes:
1 x XT90 Male-Female Connector pair with Housing-1Pair
Additional information
Brand | Amass |
---|---|
Rated Operating Voltage (VDC) | 500 |
Contact Material | Brass |
Current Handling Capacity (A) | 90 |
Allowed Wire Size (AWG) | 14 ~ 12 |
Contact Plating | Gold flash |
Operating Temperature Range (°C) | -20 to 120 |
Flammability Rating | UL94V-0 |
Plug Type | 5mm gold bullet connector in nylon shroud |
Gender | Mail-Female Pair |
No. of Contact Points | 2 |
Connector Type | XT90 |
Metal Connector Size (mm) | 4.5 |
Color | Yellow |
Weight (gm) | 8 Each with Housing |
