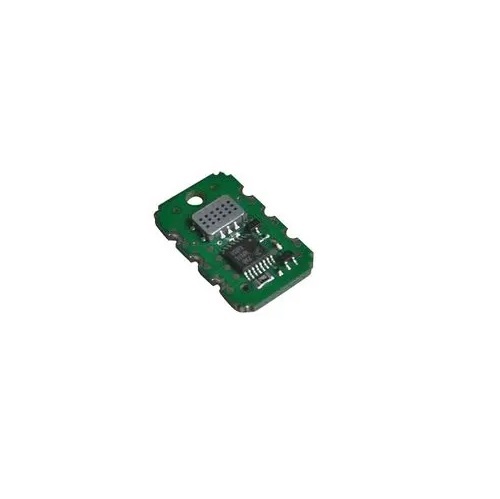

AMPHENOL SGX MICS-VZ-89TE.INTEGRATED SENSOR BOARD, 3.3VDC, 0.125W

18 People watching this product now!

SKU: rz24315855 Category: Gas and Dust Sensor

Description

The MiCS-VZ-89TE combines state-of-the-art MOS sensor technology with intelligent detection algorithms to monitor tVOCs and CO2 equivalent variations in
confined spaces, e.g. meeting rooms or vehicle cabins. The dual signal output can be used to control ventilation on-demand, saving energy and reducing cost-of ownership.

Features:

Calibration-free
Low power
Wide VOCs detection range
High sensitivity
High resistance to shocks and vibrations

Specifications:

Supply Voltage 3.3V DC regulated +/- 5%
Operating Power 125 mW
Warm-up Time 15 min
Operating Temperature 0°C to 50°C
Operating Humidity 0%RH to 95%RH (non condensing)
Storage Temperature -40°C to 80°C
Storage Humidity 0%RH to 95%RH (non condensing)

Package Includes:

1 x AMPHENOL SGX MICS-VZ-89TE. INTEGRATED SENSOR BOARD, 3.3VDC 0.125W
