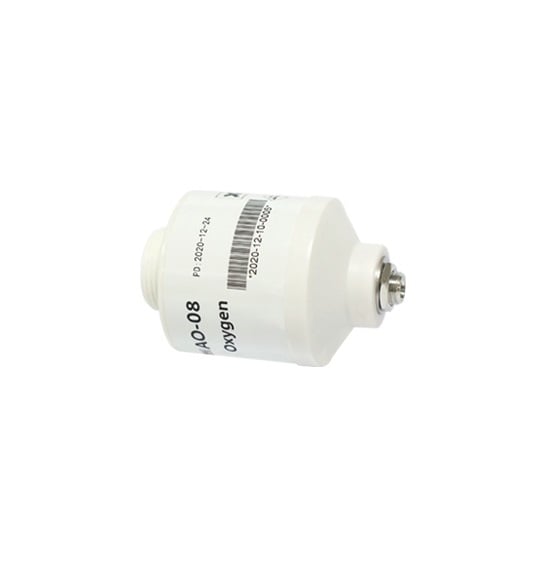

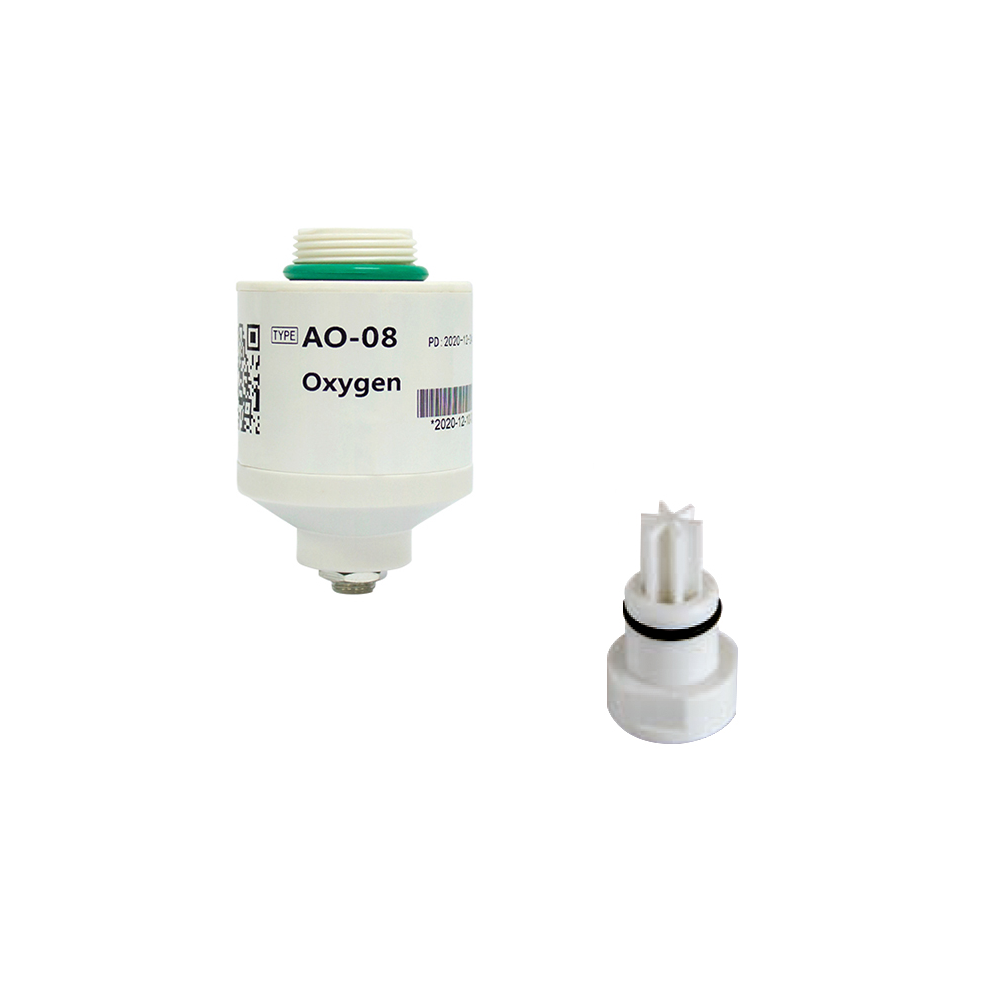

AO-08 is the oxygen sensor of Aosong Electronics. Offering long life and fast response, the high-quality AO-08 replacement sensor incorporates a moulded body design, specific for medical use. Best of all, the AO-08 costs less than the sensors it replaces, creating additional saving while providing superior quality. For further information on the AO-08 or any product in ASAIR’s complete line of medical oxygen analyzers and sensors, contact usAO-08 Medical Oxygen Sensors are intended as an oxygen-sensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following

Major There are two types of O2 sensors; a narrowband, and a wideband style — each has a different measurement ability Generally there are three types of oxygen sensors in cars: zirconia O2 sensors, wideband 02 sensors and Titania 02 sensors. Let’s take a closer look at why these sensors are important and how they work

Types  of oxygen sensor:

1. Electrochemical oxygen sensor.
2. Zirconia oxygen sensor.
3. Optical oxygen sensor.
4. Clark oxygen sensor.
5. Infrared oxygen sensor.
6. Electro galvanic sensor.
7. Ultrasonic oxygen sensor.
8. Laser oxygen sensor

Applications:

1. A sensing device for oxygen.
2. The control device of oxygen concentrators.
3. Medical ventilators

Features:

1. Meets ISO 80601-2-55
2. Linear output from 0% to 100%
3. No external power supply
4. Temperature compensation
5. Excellent signal stability
6. Accurate and reliable
7. Fast response
8. Anti-interference
9. Long-lasting

Package Includes:

1 x Oxygen Sensor Model AO-08

B3950 10K NTC waterproof High precision thermistor temperature Sensor 5 x 25mm with XH2.54 Connector can be used to measure temperature in a variety of applications.

The sensor has stainless steel 5 x 25mm tip with an XH2.54 connector with a 0.5-meter cable. It is Negative thermal coefficient (NTC) will decrease. But the formula in practice is not linear,  so sometimes an accurate table of measurements is better than the linear formula. These measurements can usually be found in the datasheet that accompanies the thermistor.

Specifications and Features:

1. Probe sheath material: Stainless Steel
2. Style: B3950 10K
3. Resistance value: 10K ± 1%
4. Measurement range: -20 to 105 °C
5. Cable Length: 0.5 Meter
6. Size of probe: 5 x 25 mm
7. Output wires: 2
8. Typical Dissipation Constant: 5mW/ °C
9. Probe insulation: >100MOhm

Package Includes:

1 x B3950 10K NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector with 0.5 Meter Cable

This is NTC MF52 100K ohm 3950 Thermistor 1%. These thermistors are widely used as electronic circuit components for instrument line temperature compensation and temperature difference cold junction temperature compensation, etc.
High Sensitivity: High sensitivity and wide operating temperature range.
MF52 100K ohm 3950 thermistors are able to measure the gap temperature than other thermometers can’t measure.
and it is very easy to use to process into complex shapes.

Specifications and Features:

1. Model: MF52 3950
2. Resistance Value: 100K
3. Accuracy: 1%
4. Small Size
5. Wide operating temp range

Package Includes:

1 x NTC MF52 100K ohm 3950 Thermistor 1% (Pack of 5)

Features & Specifications:

A Type K thermocouple refers to any temperature sensor containing Chromed and Alumel conductors, that meets the output requirements as stated in ANSI/ASTM E230 or IEC 60584 for Type K thermocouples. This may be an immersion sensor, a surface sensor, wire, or another style of sensor or cable.

Whereas a J Type Thermocouple is made up of iron and constantan, K type Thermocouples are composed of a nickel/chromium alloy (chrome) and a nickel/aluminum alloy (alumni) which gives them much better protection against oxidation and acidity than the iron limbs of the Type J

Type K consists of two metal alloys Chromel (90% Nickel, 10% Chromium) and also Alumel (95% Nickel, 2% Manganese, 2% Aluminium and 1% Silicon). Due to the thermocouple having a Nickel base; this means that it has good corrosive resistance-meaning that it can be widely used in many applications and situations.

Specifications:

1.  Tolerance: ± 1.5
2. Operating temperature: up to to 2000°C
3. Operating Voltage(VDC): 3 to 5.5
4. Internal integrated cold junction compensation circuit;
5. With a simple three serial SPI interface;
6. Temperature signal can be converted into 12-bit digital
7. Embedded thermocouple break detection circuitry.
8. High impedance differential inputs

Packages Includes:

1 x K-type Thermocouple

AHT2415C temperature and humidity probe adopts an integrated digital temperature and humidity chip, which outputs standard I²C signals and calibrated before delivery. The sensor Filter Membrane can effectively prevent the interference by water vapor and dust; Sensor wire length 550mm (±5), and offers customization options.

feature:

1.  304 stainless steel shell
2.  Excellent impact resistance, heat resistance, low temperature resistance ,chemical resistance and electrical properties
3. Fully calibrated
4.  Digital-output,I²Cinterface
5.  Excellent long-term stability
6.  Quick response, fast recovery time, strong anti-interference ability

specification:

1. Operating Voltage: 2.2~5.5V
2. Working Current: 980μA (Typical)
3. Temperature Range: 30~80℃
4. Humidity Range: 0~100%RH
5. Accuracy: ±0.5℃;±3%RH;
6. Typical Power: 3.2mW
7. Interface: I²C

Package include:

1 X AHT2415C Temperature and Humidity Probe
