Arducam 8MP IMX219 Camera for Raspberry Pi 4 Model B, Pi 3/3B+, Pi Zero 2W and More

18 People watching this product now!

SKU: rz24313701 Categories: Arducam Cameras and Accessories, Raspberry Pi Camera

Description

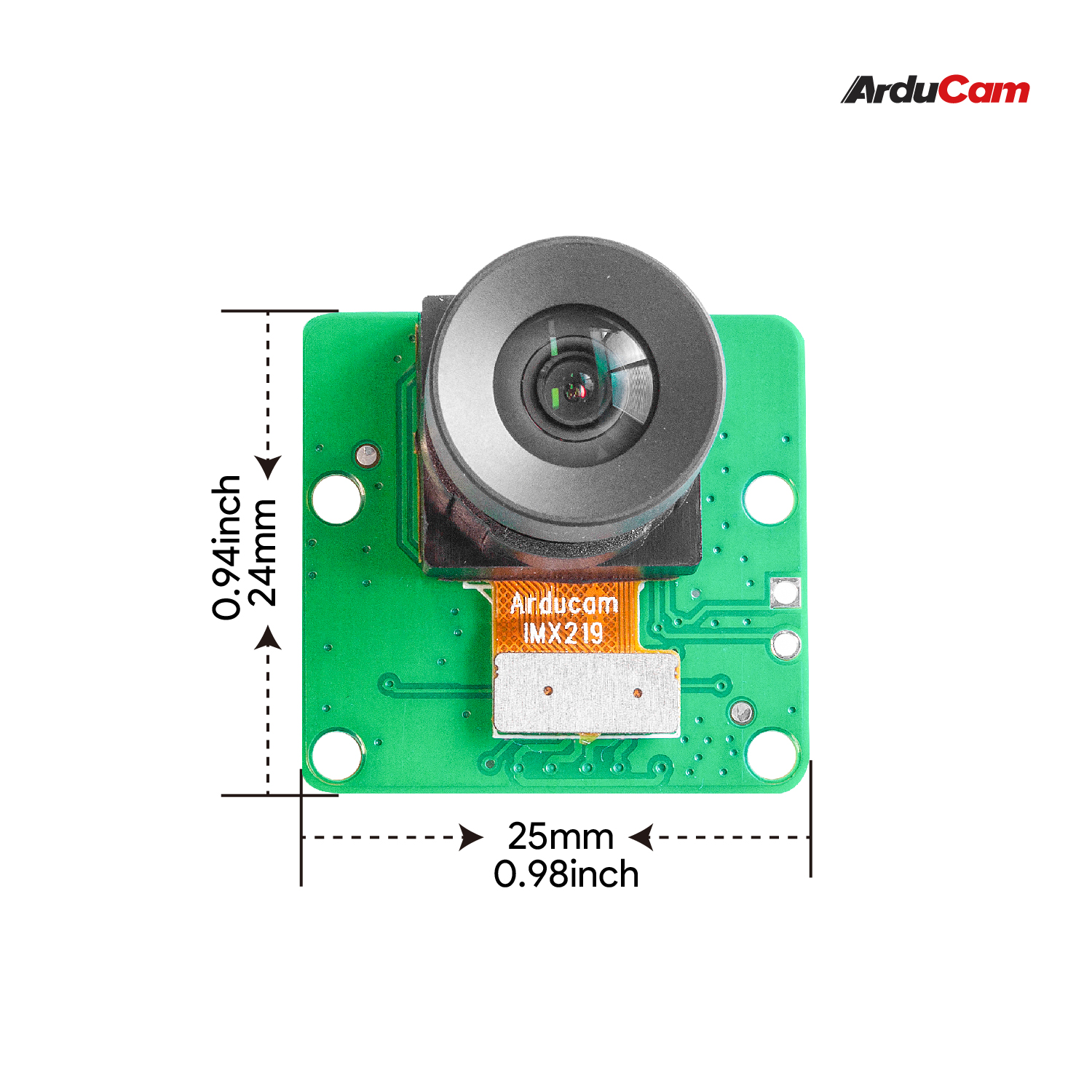

The Newest IMX219 Low Distortion M12 Mount Camera Module for Raspberry Pi is mainly designed for Raspberry Pi. The highlight of this camera is its very low distortion (<3%) of the lens. No less than the Raspberry Pi official camera V2, this camera module is also equipped with a high-definition IMX219 8MP sensor for shooting HD video and still images.

It is excellent in image quality, color fidelity, and low light, supports 1080p30, 720p60, and VGA90 video modes, and supports still capture.

For beginners, this is a very easy camera module to get started; for advanced players, this camera module has more knowledge that you should explore and DIY.

Useful link:

To use this camera, please follow this tutorial for hardware and software setup.
After software setup, you need to follow this tutorial to test the camera.

Features:

Raspberry Pi Camera: Designed for Raspberry Pi, this 8MP HD camera module has a Sony IMX219 8MP pixel sensor with low distortion (<3%) M12 lens. EFL: 2.8mm, F.NO: 2.8, View Angle: 75 Deg. (Horizontal).
8MP More than HD: Supports 3280 × 2464 pixel still images, as well as 1080p30, 720p60, and VGA90 video modes, and still captures. The Raspberry Pi Camera Board v2 – 8 Megapixels is a leap forward in image quality, color fidelity, and low light than the camera v1.

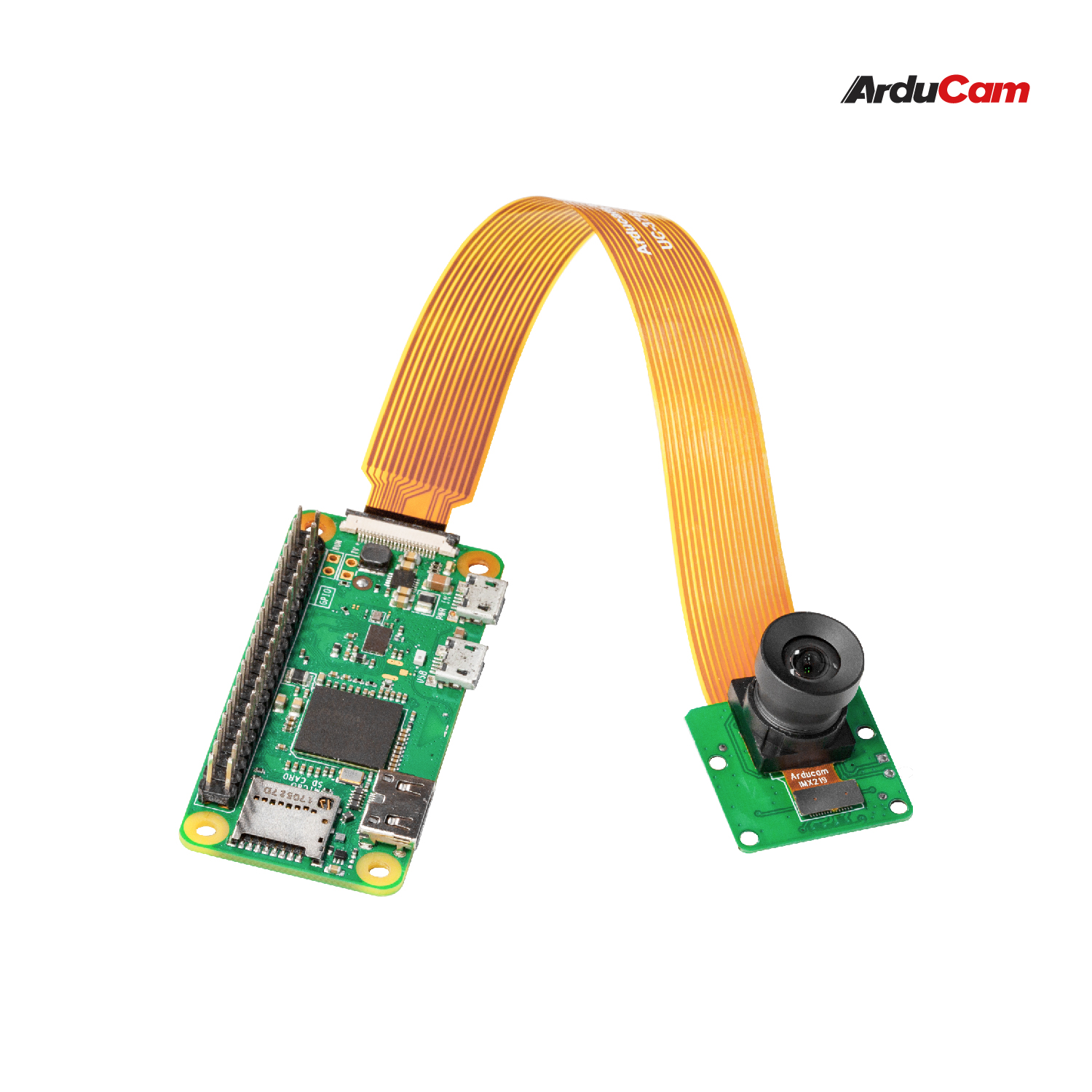

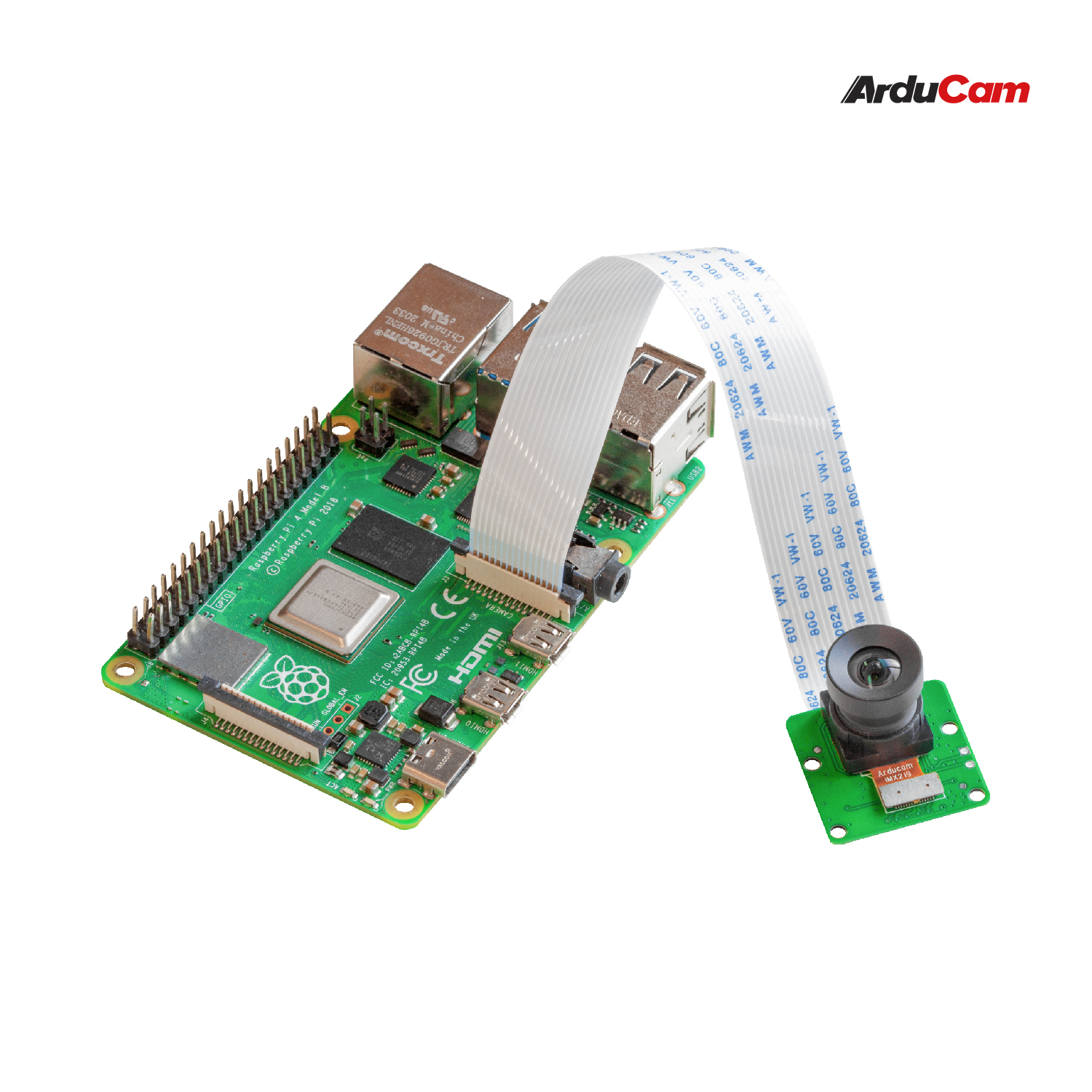

Wide Compatibility: The camera is not only compatible with all models of Raspberry Pi 1, 2, 3, and 4, but also with Raspberry Pi Zero and Zero 2W, which can be easily used with a simple configuration. Please note: This camera module is only supported with the latest Raspberry Pi OS Bullseye (released on January 18, 2022) and libcamera, not with the previous Raspberry Pi OS (Legacy).

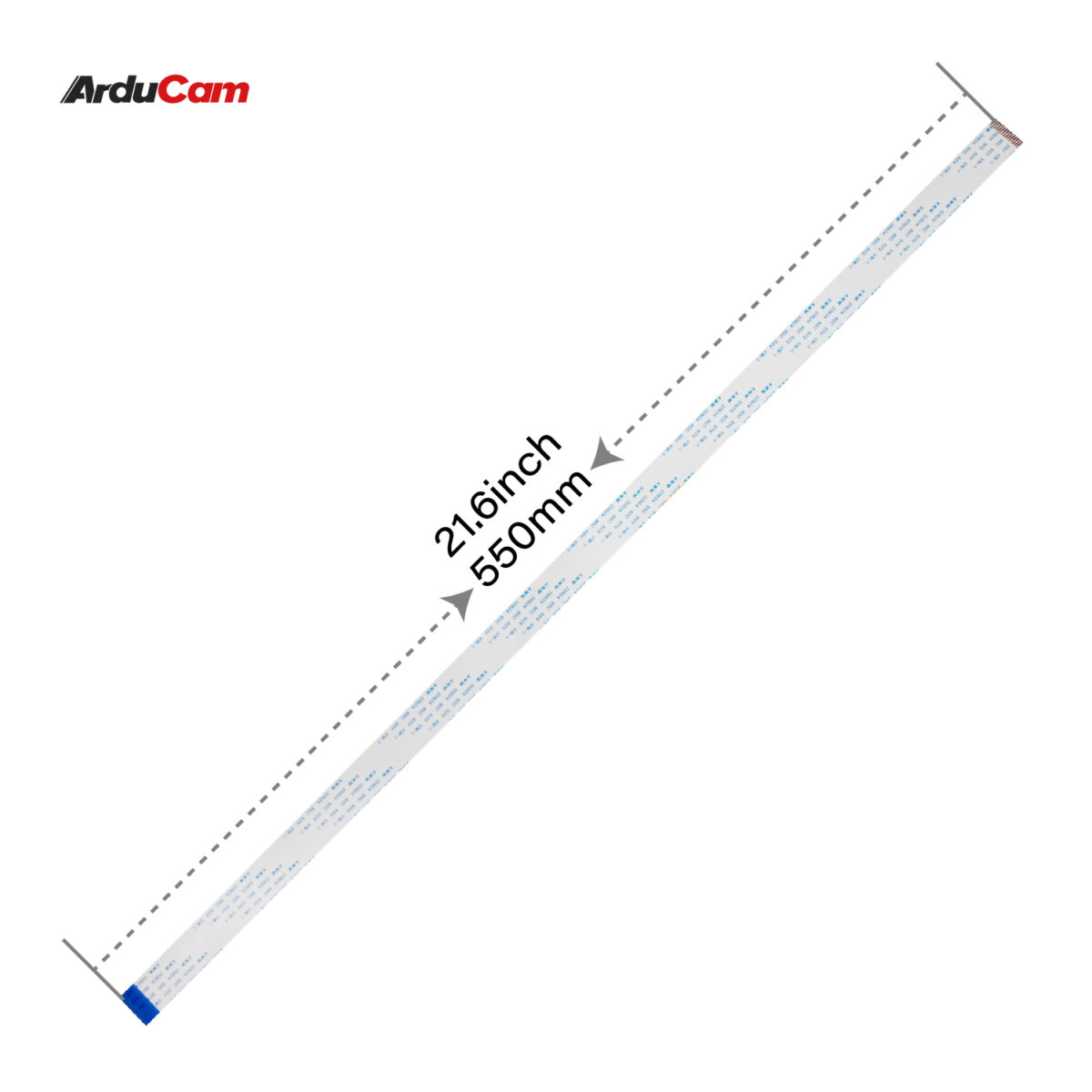

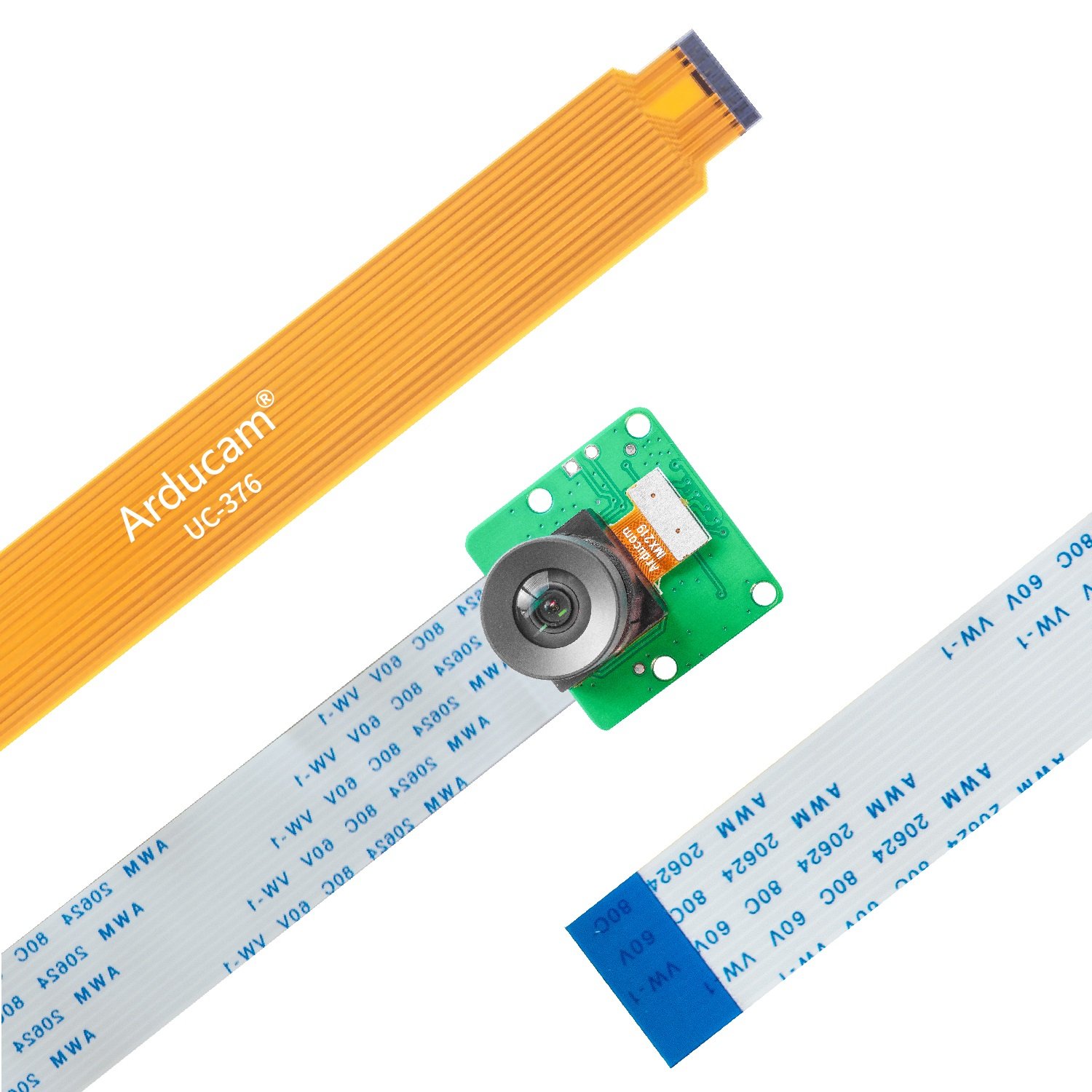

Easy to setup: The package comes with a 15cm and 50cm 15pin FPC cable, and a 15cm yellow 15-22pin FPC cable for Raspberry Pi Zero and Zero 2W. Simply connect the Raspberry Pi board and camera with the FPC cable and you can easily use this 8MP high-quality camera.
Application: Easy to use for beginners, and for advanced gamers, it offers more to explore. Perfect for time-lapse, slow motion, home security applications, monitoring Octoprint 3D Printer, and wildlife camera trap applications.

Specifications:

Shutter Type: Rolling Shutter
IR Sensitivity: Visible light, Integral IR Filter
Optical Size: 1/4 inch
Lens spec: EFL: 2.8mm, F.NO: 2.8, View Angle: 75 Deg. (Horizontal)
Frame Rate: 1080p30, 720p60 and VGA90 video modes
Interface: MIPI CSI-2 2-lane

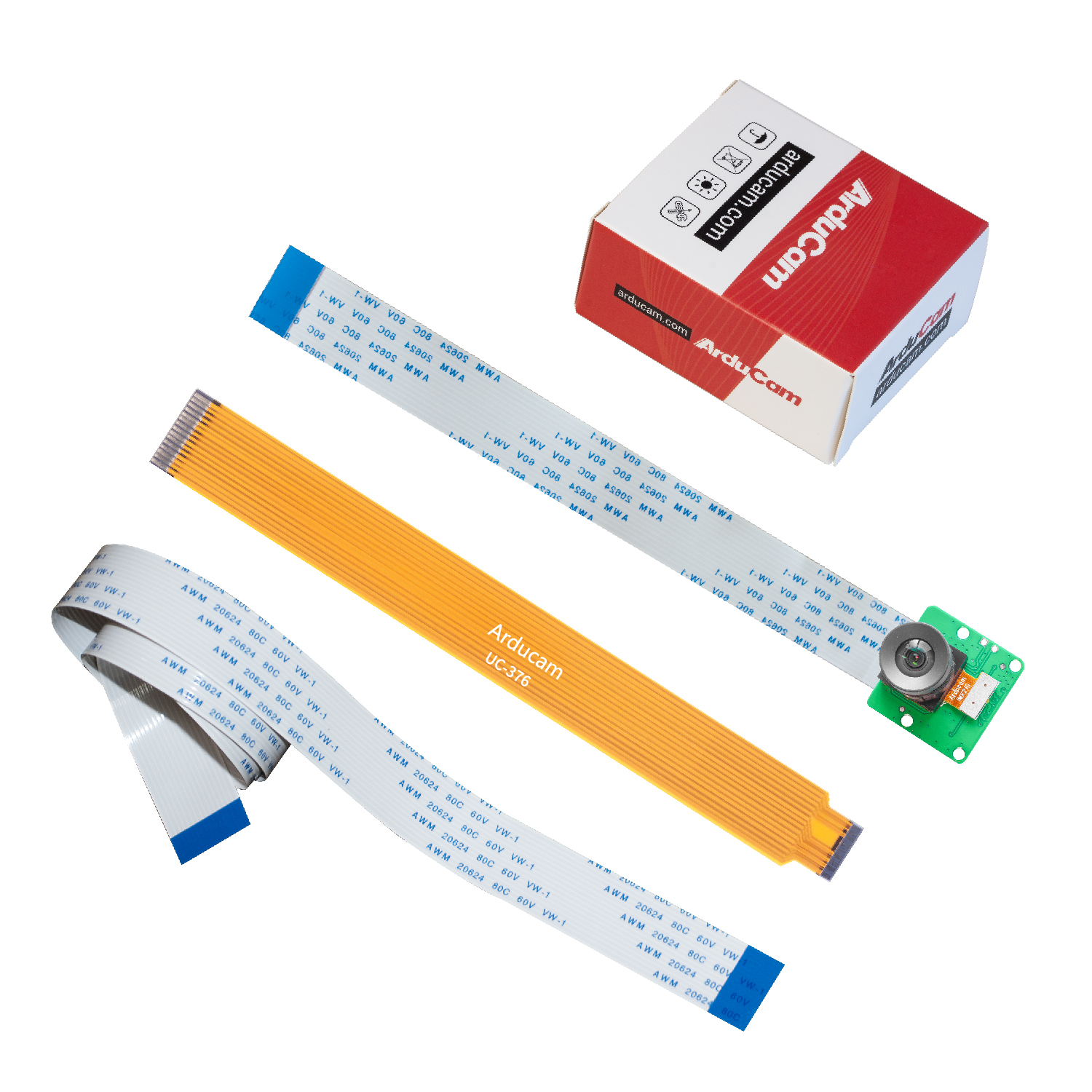

Package Includes:

1 x Arducam 8MP IMX219 Camera for Raspberry Pi
