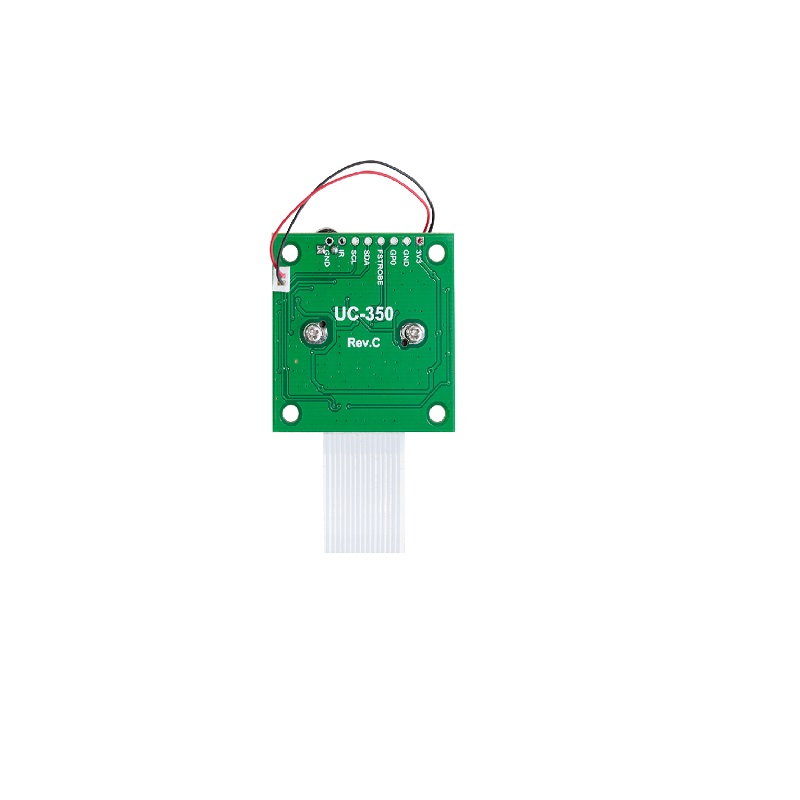

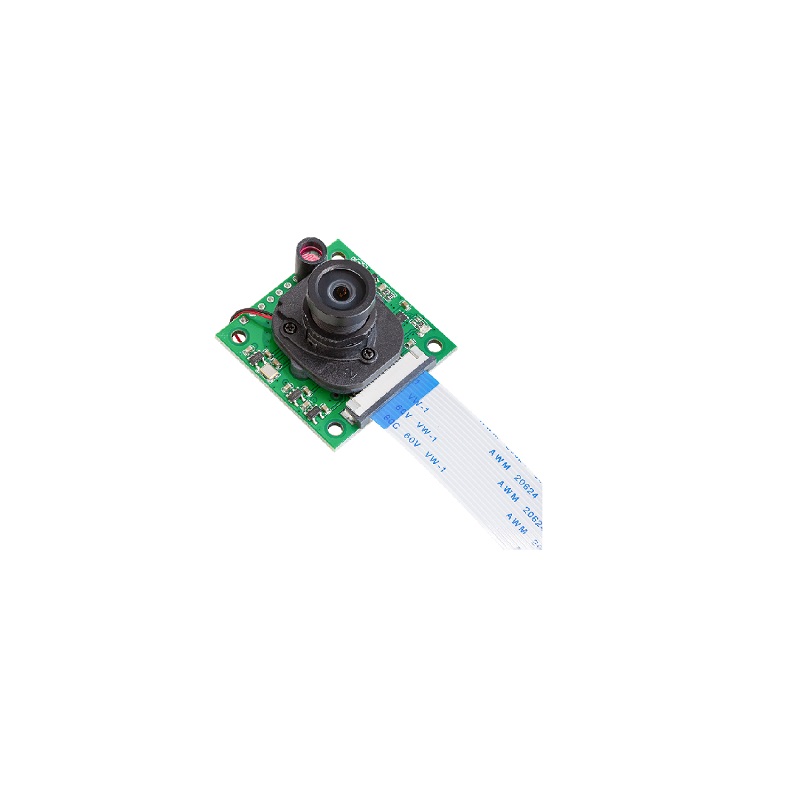

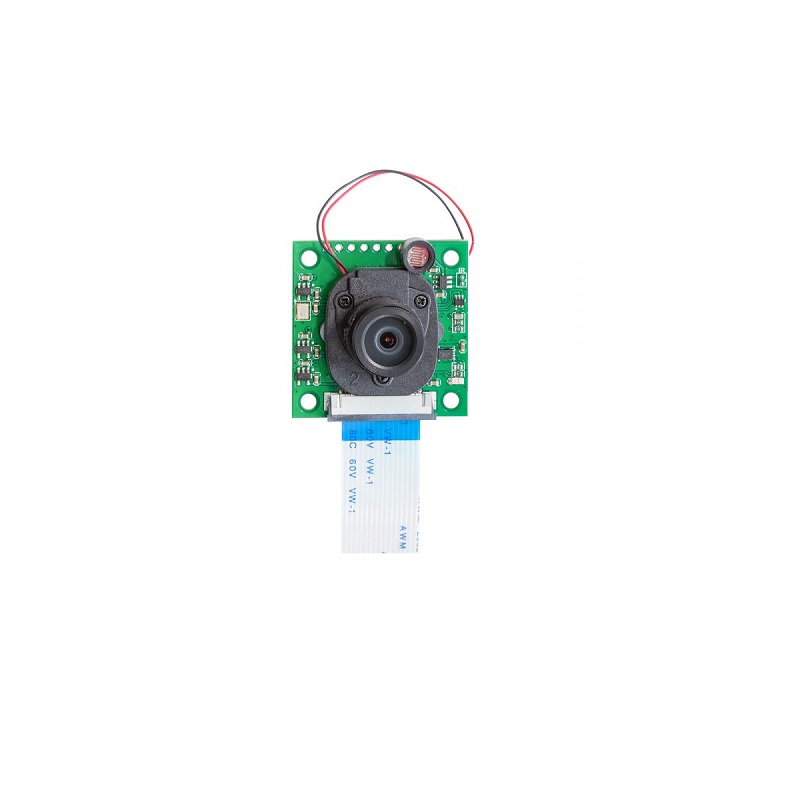

Arducam NOIR 8MP Sony IMX219 camera module with Motorized IR cut filter M12 mount LS1820 Lens for Raspberry Pi 4/3B+/3

SKU: 1043790
In Stock

6,299.00

  1. Sensor type: Sony IMX219 Color CMOS 8-megapixel
  2. Sensor size: 3.674 x 2.760 mm (1/4″ format)
  3. Pixel Count: 3280 x 2464 (active pixels) 3296 x 2512 (total pixels)
  4. Pixel Size: 1.12 x 1.12 um
  5. Lens: M12 customizable, telephoto to fisheye
  6. Angle of View: Horizontal FOV 100 degree
In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist

Description

ArduCAM team just released an 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It’s capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video. It attaches to Pi by the dedicated standard CSI interface. It is supplementary for Raspberry Pi’s official camera in order to fulfill the demands for different lens mounts, the field of view (FOV) and depth of the field (DOF) as well as the motorized IR cut filter for both daylight and night vision.


Useful link:

To use this camera, please follow this tutorial for hardware and software setup.


Features:

  1. High sensitivity, low dark current, no smear
  2. Automatic optical black (OB) clamp circuit on a chip
  3. onboard Motorized IR cut filter, support both visible and night vision.

Package Includes:

1 x Arducam NOIR 8MP Sony IMX219 camera module with Motorized IR cut filter M12 mount LS1820 Lens for Raspberry Pi 4/3B+/3

Additional information

Sensor Type

Sony IMX219 Color CMOS 8-megapixel

Pixel Count

3280 x 2464 (active pixels) 3296 x 2512 (total pixels)

Lens

M12 customizable, telephoto to fisheye

Angle of View

Horizontal FOV 100 degree

Video

1280×720 binned and cropped up to 60fps

IR Sensitive

Onboard Motorized IR cut filter, support both visible and night vision

Quick Comparison

SettingsArducam NOIR 8MP Sony IMX219 camera module with Motorized IR cut filter M12 mount LS1820 Lens for Raspberry Pi 4/3B+/3 removeArducam OV9281 1MP Global Shutter Monochrome NoIR Camera Module with M12 Mount lens for Raspberry Pi 4/3B+/3 removeArducam 16MP IMX519 (NOIR) Camera Module for All Raspberry Pi Models removeArducam MINI IMX477 for Raspberry Pi CM, CM3, CM3+, CM4 removeArducam MINI OV5647 Wide angle camera module for Raspberry Pi 4/3/3 B+, and More removeArducam 12MP IMX477 Pan Tilt Zoom(PTZ) IR-Cut Switchable Camera for Raspberry Pi 4/3B+/3 and Jetson Nano remove
NameArducam NOIR 8MP Sony IMX219 camera module with Motorized IR cut filter M12 mount LS1820 Lens for Raspberry Pi 4/3B+/3 removeArducam OV9281 1MP Global Shutter Monochrome NoIR Camera Module with M12 Mount lens for Raspberry Pi 4/3B+/3 removeArducam 16MP IMX519 (NOIR) Camera Module for All Raspberry Pi Models removeArducam MINI IMX477 for Raspberry Pi CM, CM3, CM3+, CM4 removeArducam MINI OV5647 Wide angle camera module for Raspberry Pi 4/3/3 B+, and More removeArducam 12MP IMX477 Pan Tilt Zoom(PTZ) IR-Cut Switchable Camera for Raspberry Pi 4/3B+/3 and Jetson Nano remove
SKU104379010292051263919126392612639271153923
Rating
Price6,299.005,199.003,199.005,459.006,149.0014,249.00
Stock
In Stock
In Stock
Out of stock
Out of stock
In Stock
Out of stock
AvailabilityIn StockIn StockOut of stockOut of stockIn StockOut of stock
Add to cart

Add to cart

Add to cart

Read more

Read more

Add to cart

Read more

Description
  1. Sensor type: Sony IMX219 Color CMOS 8-megapixel
  2. Sensor size: 3.674 x 2.760 mm (1/4″ format)
  3. Pixel Count: 3280 x 2464 (active pixels) 3296 x 2512 (total pixels)
  4. Pixel Size: 1.12 x 1.12 um
  5. Lens: M12 customizable, telephoto to fisheye
  6. Angle of View: Horizontal FOV 100 degree
  1. Sensor: Monochrome global shutter OV9281
  2. Pixel Size: 3 μm x 3 μm
  3. Active array size: 1280 x 800
  4. Optical Size: 1/4 inch
  5. Focusing Range: 30mm ~ infinite
  6. IR Sensitive: No IR filter, sensitive to IR
  7. Output interface: 2-lane MIPI serial output
  1. Sensor: Sony IMX519 stacked
  2. Output: RAW10/8, COMP8
  3. Lens: f/1.75; EFL: 4.28
  4. FoV: 80°
  5. IR cut: Filter without IR Filter, IR sensitive
  1. Sensor: IMX477
  2. Optical Format: 1/2.3″ (diagonal 7.857mm)
  3. Resolution: 4056(H) x 3040(V) 12.3MPPixel
  4. Size: 1.55um x 1.55um
  5. IR Sensitivity: Visible light
  6. Interface: 2-lane MIPI CSI-2
  1. Lens holder: M12x0.5
  2. 5MPixel sensor
  3. Integral IR filter
  4. Max frame rate: 30fps
  1. Resolution: 4056(H) x 3040(V) 12.3MP
  2. Pixel Size: 1.55 µm x 1.55 µm
  3. Field of View: 96° – 33° (Horizontal)
  4. Interface: MIPI
  5. Platform Support: Raspberry Pi/Jetson Nano/Xavier NX
Content

ArduCAM team just released an 8MP Raspberry Pi compatible camera based on the same Sony IMX219 image sensor. It’s capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video. It attaches to Pi by the dedicated standard CSI interface. It is supplementary for Raspberry Pi’s official camera in order to fulfill the demands for different lens mounts, the field of view (FOV) and depth of the field (DOF) as well as the motorized IR cut filter for both daylight and night vision.


Useful link:

To use this camera, please follow this tutorial for hardware and software setup.


Features:

  1. High sensitivity, low dark current, no smear
  2. Automatic optical black (OB) clamp circuit on a chip
  3. onboard Motorized IR cut filter, support both visible and night vision.

Package Includes:

1 x Arducam NOIR 8MP Sony IMX219 camera module with Motorized IR cut filter M12 mount LS1820 Lens for Raspberry Pi 4/3B+/3

The Arducam monochrome (B&W) global shutter 1280×800 resolution OV9281 camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware.
The sensor’s global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head, and eye tracking, and depth and motion detection.


Useful link:

To use this camera, please follow this tutorial for hardware and software setup.


Features:

  1. Monochrome global shutter Camera Module with M12 Mount lens directly inserts to CSI slot on Raspberry Pi. Support Raspberry Pi 4, Pi 3/3B+/3A+, CM3/3+, Pi Zero, and more.
  2. The Raspberry Pi has recently updated its firmware with V4L2 camera drivers, which adds support including for OV9281.

Package Includes:

1 x Arducam OV9281 1MP Global Shutter Monochrome NoIR Camera Module with M12 Mount lens for Raspberry Pi 4/3B+/3

Arducam 16MP IMX519 (NOIR) High-Resolutions camera is an exclusive camera board that takes what Raspberry Pi V1, V2, and HQ have to offer, and excels in every single aspect.

It takes zero compromises in specs. With a resolution at 16 megapixels (compared to 8MP and 12MP), a stock lens, a V2-like form factor, and boatloads of improvements, the camera provide a better choice for a whole world of industrial/consumer/etc. applications, it’s compatible with any existing Pi models, work with the latest software from the foundation, and leverages the same tuning algorithms used in the official camera modules.

The package contains a camera board with a Sony IMX519 sensor and a stock lens, an FPC cable.


Useful link:

To use this camera, please follow this tutorial for  hardware and software setup.


Features:

  1. 【16MP for All Pis】The new Raspberry Pi camera features a 16MP Sony IMX519 sensor with a pixel resolution of 4656 x 3496, twice as high as the v2 camera and 40% higher than the HQ camera; it is compatible with any Raspberry Pi board with a MIPI/CSI interface and runs directly on the Raspberry Pi OS without much configuration.
  2. 【Crisper Images/Videos】The 16-megapixel camera can capture 1080p Full HD video at up to 30 frames per second and 720p HD video at up to 60 frames per second, and also provides an effective 80-degree field of view.
  3. 【V1/V2 Size】The camera module has the same size as the pi camera V2, the package comes with plastic housing, also suitable for V1 and V2 boards.

Specifications:

Sensor Sony IMX519 stacked, back-illuminated sensor 16 megapixels 1.22 µm × 1.22 µm pixel size7.103 mm diagonal (Type 1/2.534)
Output RAW10/8, COMP8
Lens f/1.75; EFL: 4.28; FoV: 80°
IR cut Filter without IR Filter, IR sensitive
Video Modes 1080p@30fps, 720p@60fps
Linux integration V4L2 driver available
Ribbon Cable Length 150mm




Package Includes:

1 x Arducam 16MP IMX519 (NOIR) camera module for All Raspberry Pi Models

To make a High-Quality camera module work on applications with size and weight limits, Arducam just released this small-size camera module for Raspberry Pi CM, CM3, CM3+, and CM4. It is fully compatible with Raspberry Pi V2 module size, a 24mm x 25mm IMX477 camera board, a low distortion M12 mount lens.

Important Note On The IMX477 MiPi Lanes

Our IMX477 camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:

  1. Standard Raspberry Pi and Jetson Nano/Xavier NX can’t physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it’s not a general need.
  2. Extra works, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performance of the platform itself. For example, 4-lane can’t unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.

Specifications:

Camera

  1. Sensor: IMX477
  2. Optical Format: 1/2.3″ (diagonal 7.857mm)
  3. Resolution: 4056(H) x 3040(V) 12.3MPPixel
  4. Size: 1.55um x 1.55um
  5. IR Sensitivity: Visible light
  6. Interface: 2-lane MIPI CSI-2
  7. Default Lens Mount: M12 Mount(SKU:LN053)
  8. Frame Rate: 1080p30, 720p60 and 640 × 480p60/90
  9. Board Size: 24mm×25mm

Lens

  1. Format: 1/2.3 inch
  2. Focal Length: 3.9mm
  3. Aperture (F): F2.8
  4. Field of View (FOV): 75° (H)
  5. Mount: M12 Mount
  6. Back Focal Length: 4.49mm
  7. MOD: 0.1m Dimension: Φ14×18.67mm
  8. Weight: 5g

Package Includes:

1 x 12.3MP IMX477 color camera module

1 x 3.9mm focal length M12 mount camera lens

1 x 300mm 22pin camera cable

The MINI OV5647 Wide angle camera is a custom-designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board’s upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing with cameras.

The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is connected to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.
The camera is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system.

Applications:

  • Cellular phones, PDAs, Toys
  • Other battery-powered products
  • Where the official module fails in terms of focusing and Field of View,etc.

Features:

  1. Lens holder: M12x0.5
  2. 5MPixel sensor
  3. Integral IR filter
  4. Max frame rate: 30fps
  5. Connection by flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board
  6. The Camera Lens for Raspberry Pi Camera Board is LN060
  7. OmniVision 5647 sensor in a fixed-focus module with replaceable Lense

Specifications:

  • Sensor
    – Sensor size: 1/4” (OV5647)
    – Resolution: 5MP 2592×1944
    – Video: 1080p 30 fps, 720p 60fps, 480p 90fps
  • Lens
    – Focal Length: 1.3mm (You can screw the lens for focusing)
    – Horizontal Field of View (HFOV): 155°
    – Thread Size: M12×P0.5
  • Camera Board
    – 3V3,GND,FREX,STROBE,VSYNC
    – Dimension: 25×24 mm, 4 mounting holes
  • Peak Current: 300mA

Package Includes:

1 x 5 Megapixels OV5647 Sensor Camera Module

1 x 15cm 15pin FPC cable

Arducam PTZ camera is a complete solution to turn your Raspberry Pi/Jetson Nano/Xavier NX, and it is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What’s more, this kit is based on the IR-CUT switchable 13MP camera to get sharp imaging all day and night.


Useful links:

  1. To use this camera on Raspberry Pi, please follow this tutorial for hardware and software setup.
  2. To use this camera on Jetson Nano, please follow this tutorial for hardware and software setup.

Application:

This cost-effective and flexible PTZ camera performs better in Day&night vision security camera system, motion detection, wildlife photography and other machine vision projects.


Features:

  1. Shutter Type: Rolling Shutter
  2. Color Type: Color
  3. Interface: MIPI
  4. Platform Support: Raspberry Pi/Jetson Nano/Xavier NX
  5. PTZ Controller Board Connector Part Number: S6B-XH-A-1

Specifications:

  1. Sensor: IMX477
  2. Pixel Size: 1.55 µm x 1.55 µm
  3. Resolution: 4056(H) x 3040(V) 12.3MP
  4. Optical Size: 1/2.3″
  5. Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
  6. Frame Rate on Jetson Nano/Xavier NX:1920×1080 @ 60fps,4032×3040 @ 30fps
  7. IR sensitivity: Optional with additional Motorized IR-Cut filter
  8. Focus: Front group – focus, Back group – Zoom
  9. Field of View: 96° – 33° (Horizontal)
  10. Focal length: 4.38-10.71mm±5%

Package Includes:

1 x Arducam PTZ Lens, assembled with a 12MP IR-CUT switchable camera board and camera control board

1 x 15-Pin to 22-Pin Ribbon Cable (11.8 in/30 cm)

1 x 22-Pin Ribbon Cable (11.8 in/30 cm)

1 x XH2.54 Jumper wire with 6-Pin Female Connector (11.8 in/30 cm)

4 x Plastic Standoffs for the Base

Weight
DimensionsN/AN/AN/AN/AN/AN/A
Additional information
Sensor Type

Sony IMX219 Color CMOS 8-megapixel

Pixel Count

3280 x 2464 (active pixels) 3296 x 2512 (total pixels)

Lens

M12 customizable, telephoto to fisheye

Angle of View

Horizontal FOV 100 degree

Video

1280×720 binned and cropped up to 60fps

IR Sensitive

Onboard Motorized IR cut filter, support both visible and night vision

Sensor

Monochrome global shutter OV9281

Pixel Size

3 μm x 3 μm

Optical Size

1/4 inch

Focusing Range

30mm ~ infinite

IR Sensitive

No IR filter, sensitive to IR

Output interface

2-lane MIPI serial output

Output formats

RAW8/10

Lens

Default low distortion M12 lens
