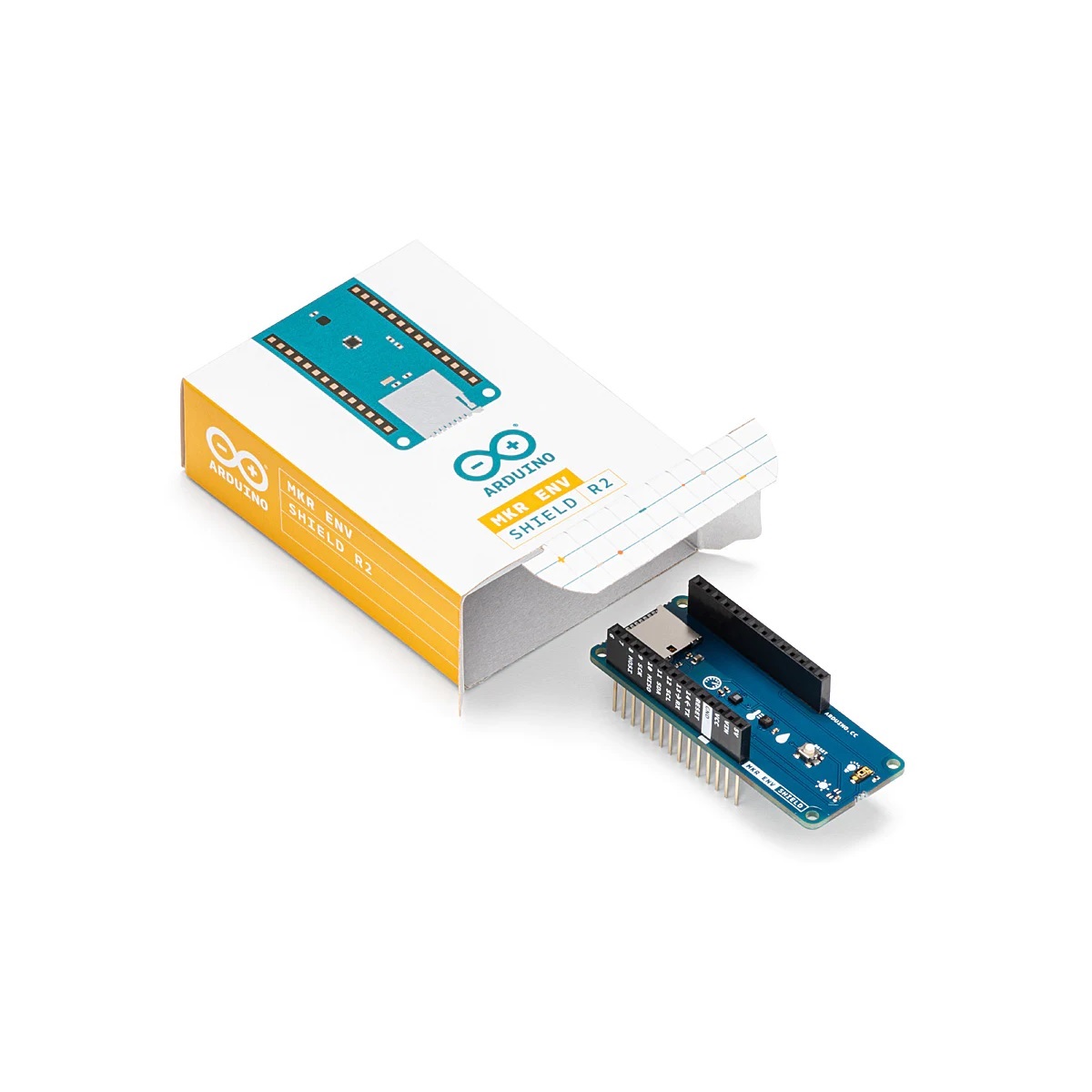

Arduino MKR ENV Shield Rev2

₹4,604.31 (Including tax)

These sensors are of the latest generation and measure:

Atmospheric pressure
Temperature and humidity
Light intensity (in LUX, max 650)

To help you build projects and store the data collected locally, this shield has a slot for a microSD card

Discount per Bulk Quantity

Quantity	Discount	Price
5 - 10	5%	₹4,374.09 (Including tax)
11 - 20	8%	₹4,235.95 (Including tax)
21 - 40	10%	₹4,143.88 (Including tax)
41 - 100	12%	₹4,051.78 (Including tax)

Out of stock

This product is currently sold out.

No worries! Enter your email, and we'll let you know as soon as it's back in stock.

Fast Shipping
Get the Priority Shipping on Prepaid Orders

Prepaid Orders

Normal Shipping
Get Normal Delivery (Surface) with Cash On Delivery

COD Orders

Compare

Add to wishlist

17 People watching this product now!

SKU: rz24312539 Category: Official Arduino Shields

Description

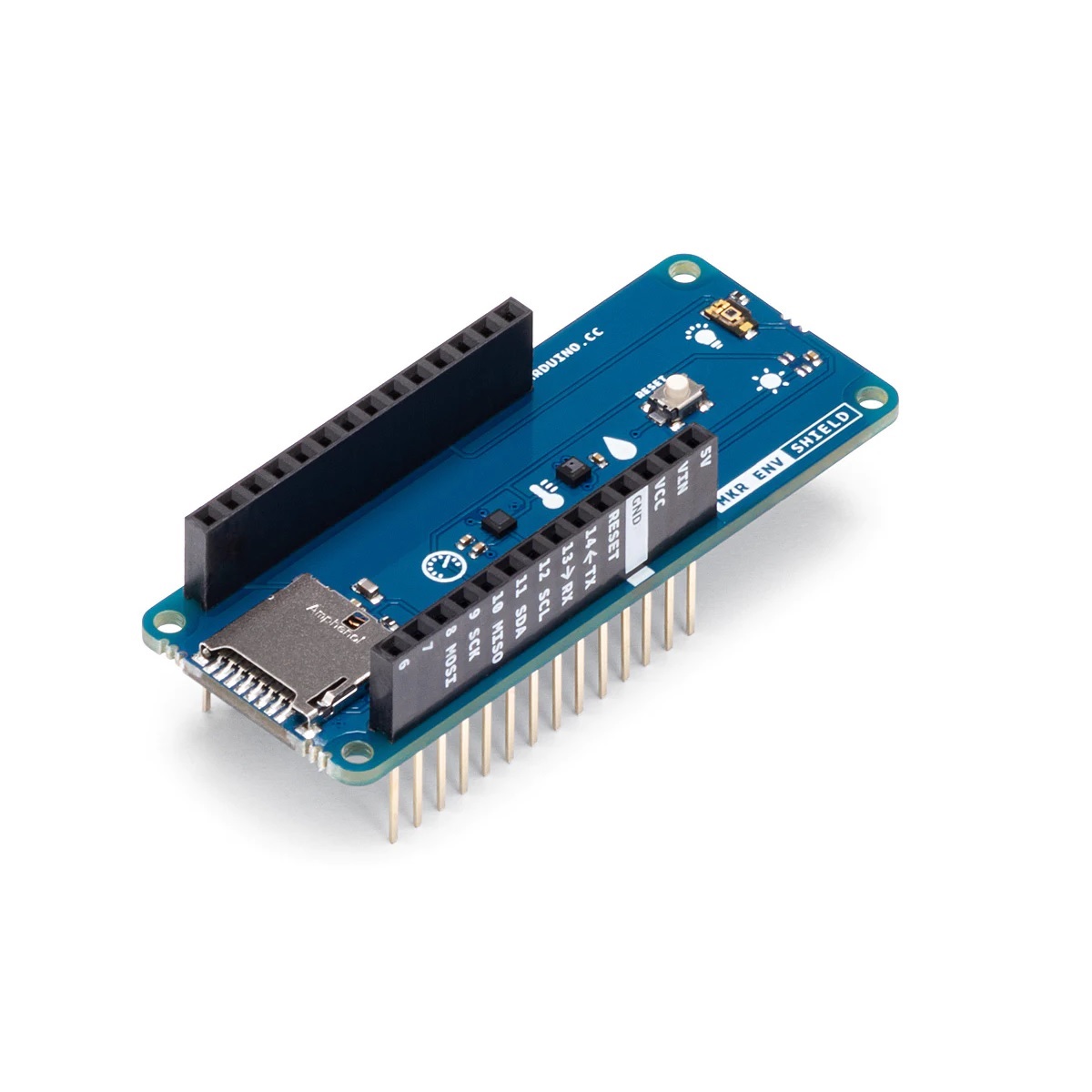

The MKR ENV Shield allows an MKR board to acquire environmental data collected by an array of sensors. These sensors are of the latest generation and measure atmospheric pressure, temperature, humidity, UVa intensity, UVB intensity, UV Index, and light intensity (in LUX). To help you build projects with locally stored data, this shield has a MicroSD slot.

This shield has all the sensors on one side and should be kept on top of any pile of shields, otherwise, it won’t be able to measure properly all the values related to light.

These sensors are of the latest generation and measure:

Atmospheric pressure
Temperature and humidity
Light intensity (in LUX, max 650)

To help you build projects and store the data collected locally, this shield has a slot for a microSD card (not provided).

There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used :

ST LPS22HB : atmospheric pressure
ST HTS221 : temperature and humidity
VISHAY TEMT6000 : Lux of the ambient.

Specifications and Features:

ICS:
1. LPS22HB
2. TEMT6000
INPUT VOLTAGE 3.3V
OPERATING VOLTAGE 3.3V
RANGES
1. Pressure: 260 to 1260 hPa
2. rH sensitivity: 0.004% rH/LSB
3. Humidity accuracy: ± 3.5% rH, 20 to +80% rH
4. UVA, UVB and UVBI measurment0 0 to 650 Lux
COMMUNICATION I2C/Analog
LENGTH 61 mm
WIDTH 25 mm
WEIGHT 32 gr.

Package Includes:

1 x Arduino MKR ENV Shield Rev2
