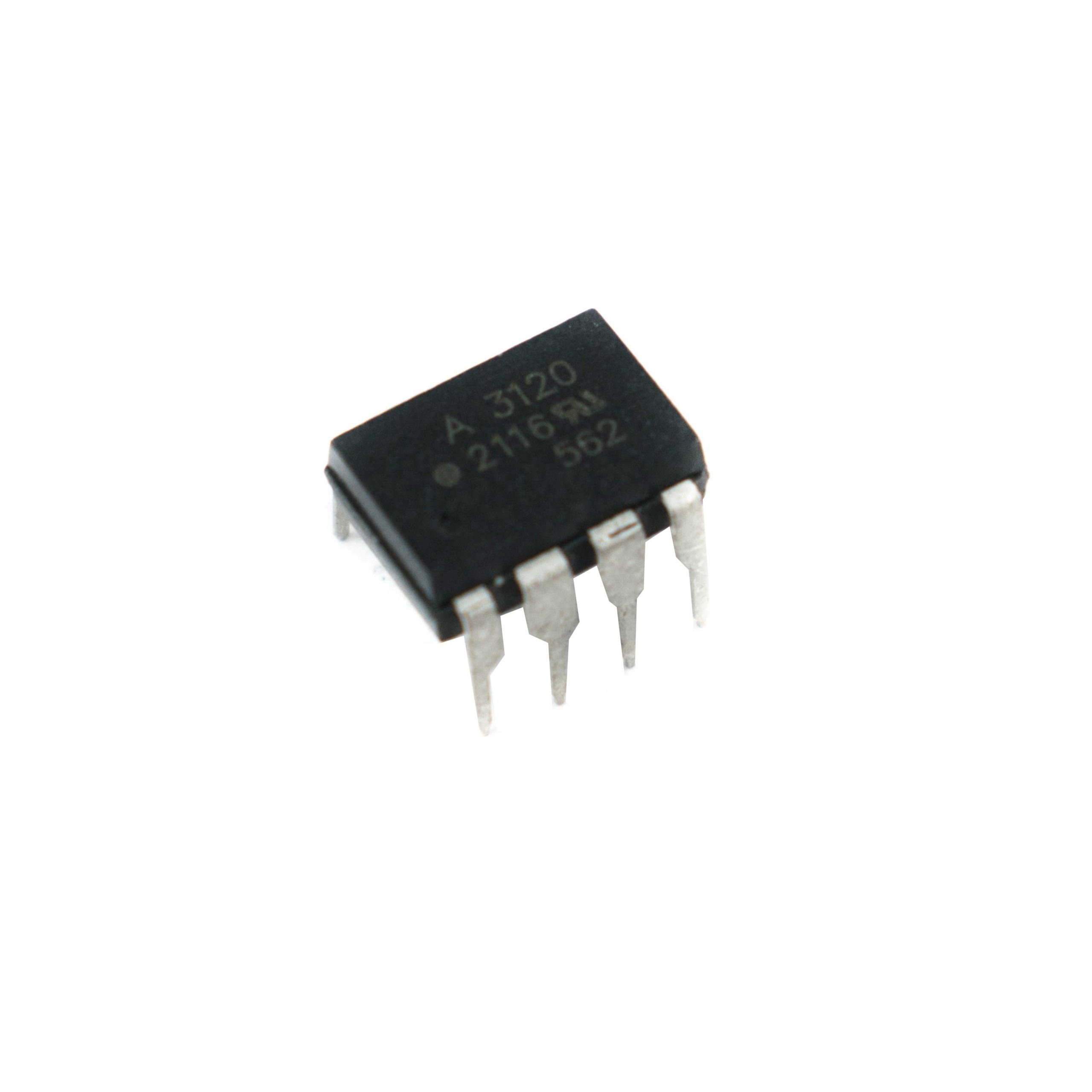

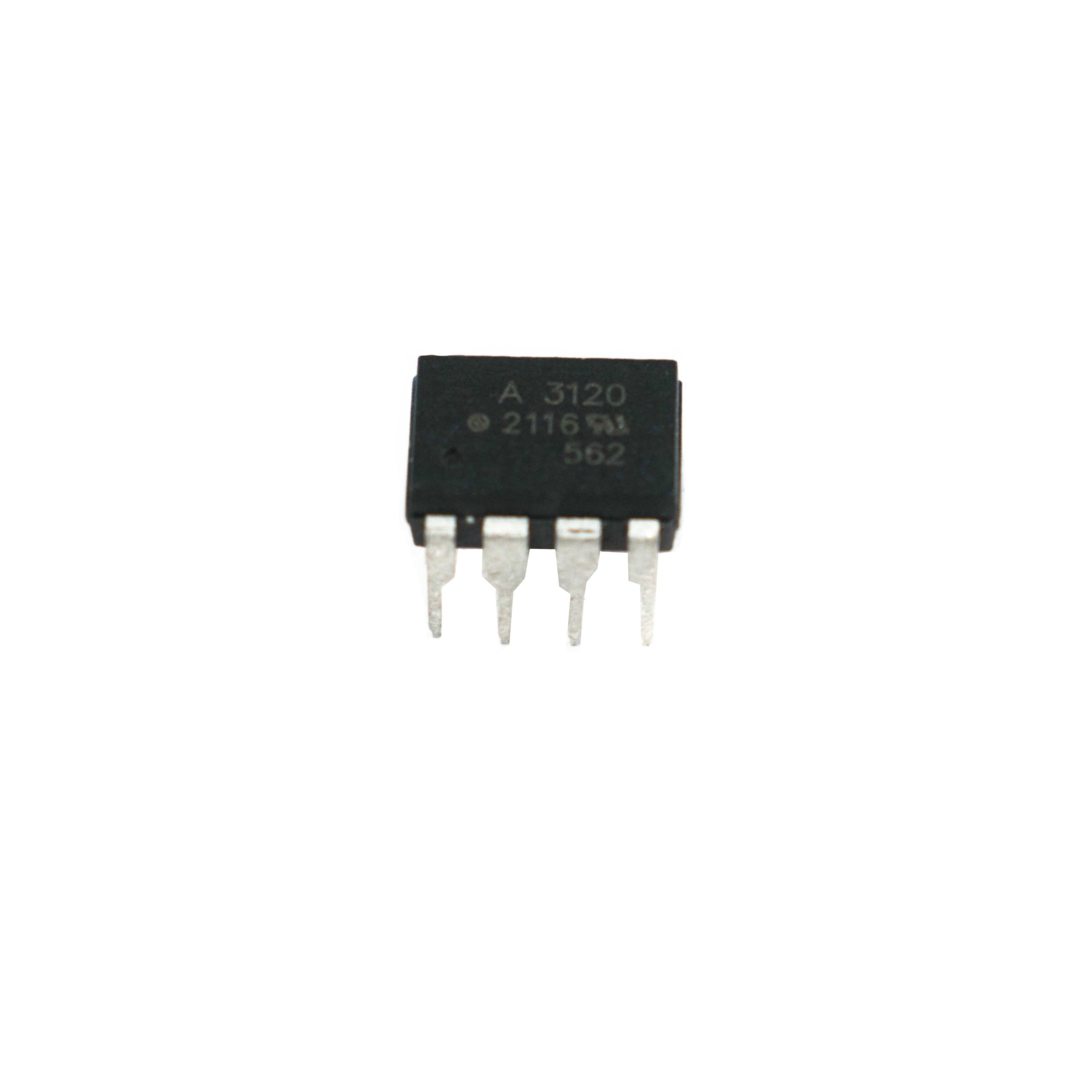

AWAGO A3120 2.5 Amp Output Current IGBT Gate Drive Optocoupler DIP

Specifications:
Maximum peak output current 2.5 A
Minimum peak output current 2.0 A
Minimum Common Mode Rejection (CMR) at VCM=1500 V 25 kV/μs
Maximum switching speed 500 ns
Industrial temperature range –40 °C to 100 °C
Icc (maximum supply current) 5 mA
Package DIP
Country of OriginChina
