₹16,961.15 (Including tax)
Discount per Bulk Quantity
Quantity | Discount | Price |
---|---|---|
5 - 10 | 5% | ₹16,113.08 (Including tax) |
11 - 20 | 8% | ₹15,604.24 (Including tax) |
21 - 40 | 10% | ₹15,265.03 (Including tax) |
41 - 100 | 12% | ₹14,925.81 (Including tax) |
Out of stock
No worries! Enter your email, and we'll let you know as soon as it's back in stock.
Get the Priority Shipping on Prepaid Orders
Prepaid Orders
Get Normal Delivery (Surface) with Cash On Delivery
COD Orders

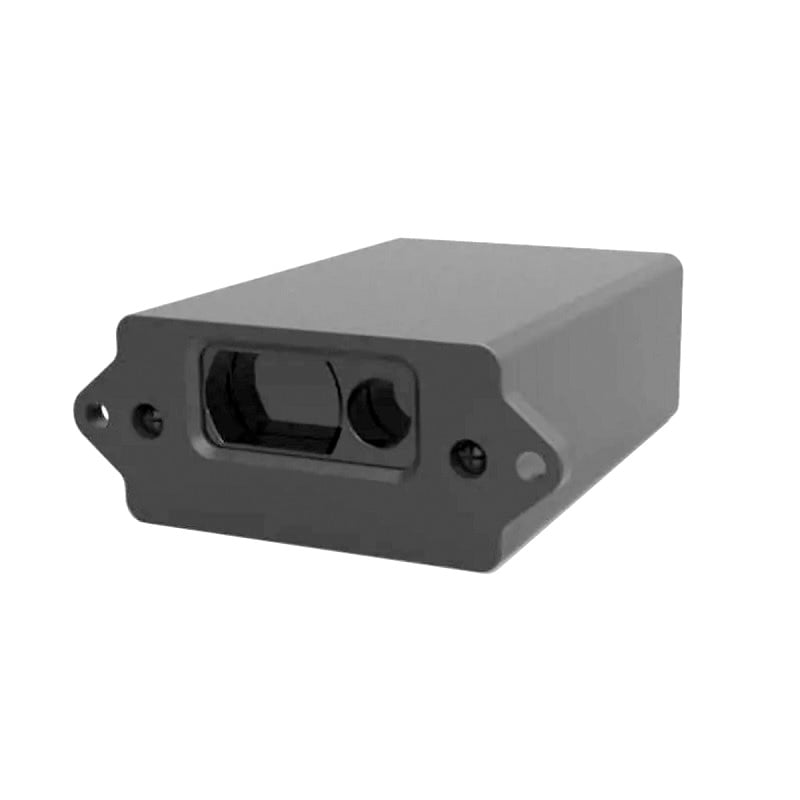

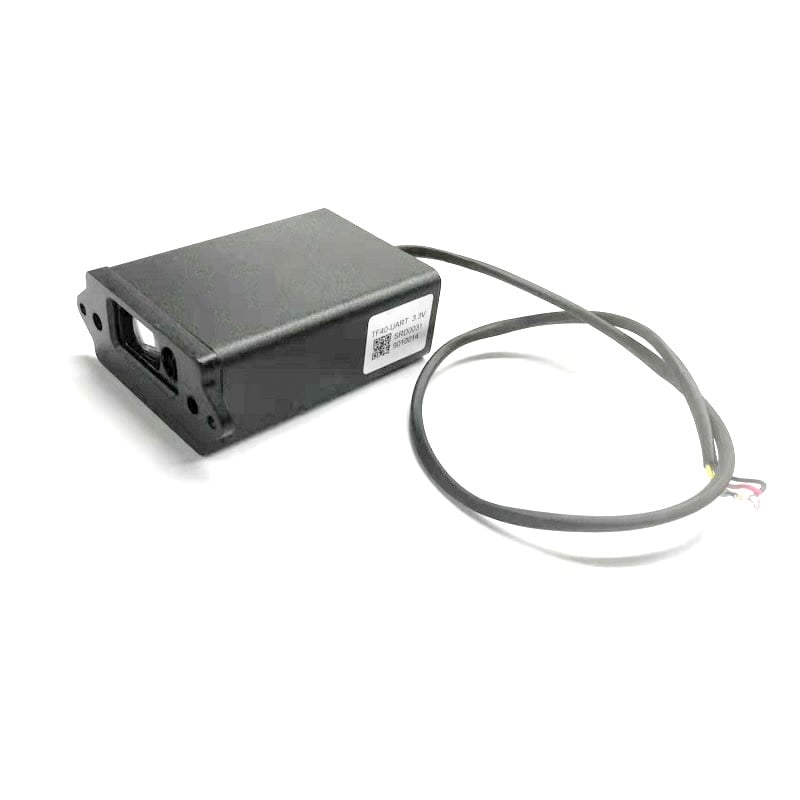

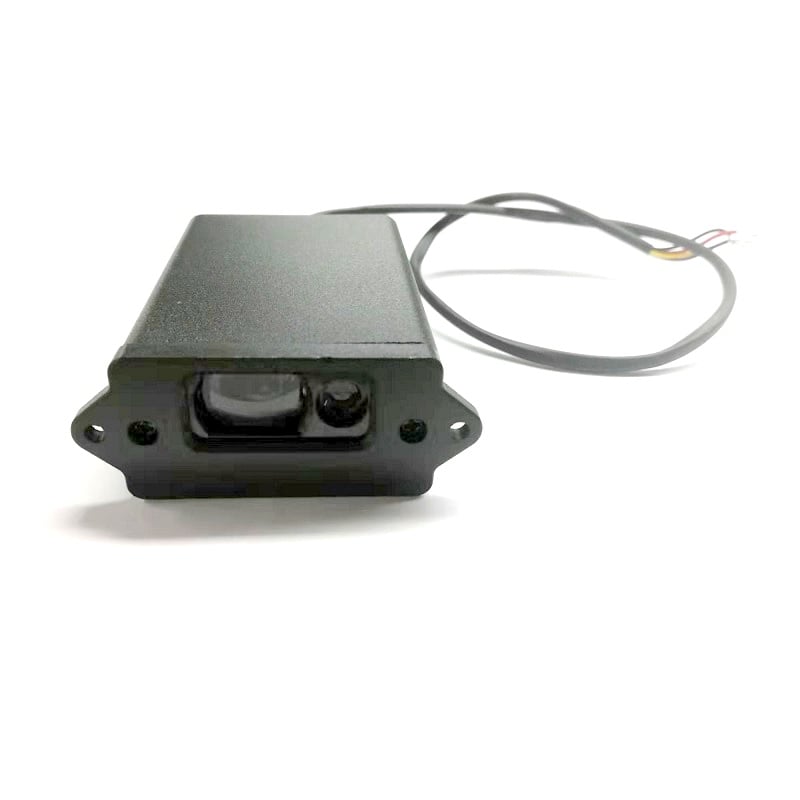

TF40 is an mm-level accuracy LiDAR with a range up to 40m is a third-generation product of the TF series, TF40 inherits the cost-effective and compact- integration characteristics of the previous two generations. Meanwhile, TF40 upgrades more than ten key parameters and offers multiple expansion functions to meet various applications’ demands.
Typical Application
TF40 LIDAR applies to many industrial applications. For more details, please download the datasheet in the attachments section
1 x Benewake TF40 LiDAR
Type |
Time of Flight – ToF |
---|---|
Sensing Distance |
0.04 m to 40 m |
Resolution |
1 mm |
Beam Angle |
1 m rad |
Operating Supply Voltage |
3.3 V |
Operating Supply Current |
180 mA |
Interface Type |
UART |
Minimum Operating Temperature |
– 10 C |
Maximum Operating Temperature |
+ 50 C |
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery Policy
1. Shipping Process:
2. Shipping Charges:
3. Order Tracking:
4. Delivery Address:
5. Delivery Issues:
6. No Return Policy for Opened/Soldered Products:
7. Refund Policy:
Out of stock
Out of stock
Out of stock
Out of stock
Sampling Frequency |
32K |
---|---|
Rotational Speed |
10Hz |
Angular Resolution |
0.12° |
Motor |
Brushless |
Dimensions |
77 x 77 x 38.5 mm |
Weight |
190g |
Connect |
Ethernet UDP |
System Voltage |
12V |
System Current |
200mA |
Power Consumption |
> 2W |
Temperature Range |
-10℃ – 50℃ |
Angular Range |
360° |
Scan Field Flatness |
±1.5° |
Range Resolution |
13mm |
Accuracy |
≤30mm |
Out of stock
Rotational Speed |
10Hz |
---|---|
Sampling Frequency |
32K |
Distance Measuring Range (CM) |
5Cm – 1800Cm |
Angular Resolution |
0.12° |
Motor |
Brushless |
Connect |
TTL UART Serial (3.3 voltage level) |
System Voltage |
5V |
System Current |
400mA |
Power Consumption |
> 2W |
Temperature Range |
-10℃ – 50℃ |
Angular Range |
360° |
Scan Field Flatness |
±1.5° |
Range Resolution |
13mm |
Accuracy |
≤30mcm |
Out of stock
Out of stock
Model |
GS2 |
---|---|
Product Type |
Linear array solid LiDAR Sensor |
Operating Voltage(V) |
3.4 V |
Operating Current (A) |
95mA |
Scan Angle |
100° |
Range Frequency |
28Hz |
Range Distance |
25mm~300mm |
Angle Resolution |
0.6° |
Baud rate |
1500000bps |
Life-time |
10000h |
Operating Temperature |
40 ℃ |
Laser wavelength |
860 nm |
Laser power |
25mW |
