Product details
HM-BT220X is a BLE data transmission module, based on a BLE 5.2 SoC chip (ARM Cortex-M33 32-bit processor, up to 76.8MHz working frequency), embedded with a 2.4GHz transceiver, equipped with an
on-board PCB antenna. The module communicates with an external MCU to quickly set up wireless connection and data transmission between BLE slave devices and BLE master devices (such as mobile phones and tablets). The external MCU has a low resource occupation and the development process is very easy.
The Bluetooth technology manages the communication channel of the wireless part. The Bluetooth modules can transmit and receives the data wirelessly by using two devices. The Bluetooth module can receive and transmits the data from a host system with the help of the host controller interface (HCI).

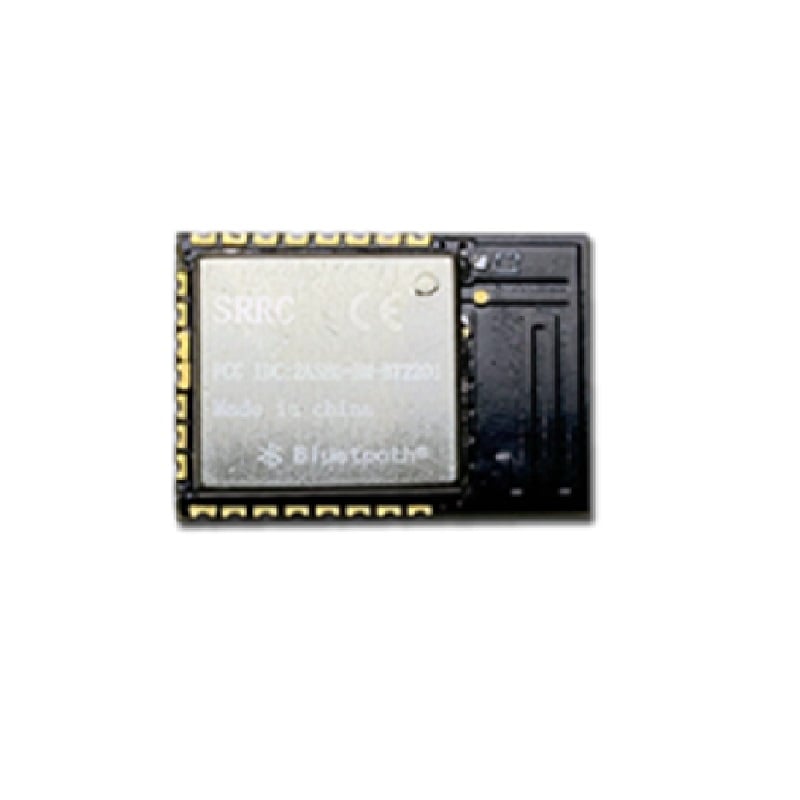

Note: Product image may vary from the actual product.
Features:
- Based on ARM: Cortex-M33 32-bit processor.
- Support BLE: 2.4GHz multi-protocol.
- Supports BLE protocol stack from: 4.x to 5.2.
- Up to 512KB of FLASH and 32KB of RAM.
- Support 14 general-purpose I/O ports, configurable mapping and Can be used as a BLE data transmission module or as an MCU alone.
- Support a universal serial interface UART communication.
- Support AT command to reset module, get MAC address.
Specifications:
- Working Voltage: 1.71V-3.8V.
- Working Temperature: -20℃～+85℃.
- Modulation Mode: GFSK Gaussian Frequency Shift Keying.
- Modulation Frequency: 2402MHz-2483.5MHz.
- Maximum Transmit Power: +6dBm.
- Receive Current: 3.6mA @1Mbps GFSK.
- Emission Current:4.1mA@0dBm.
- Emission Current:8.2mA@6dBm.
- Low Power Consumption Mode Current: 27uA/MHz in Active Mode @76.8MHz.
- Deep Sleep Mode Current: 1.4uA @EM2 Deep Sleep
- Receiving Sensitivity: -98.9dBm @1Mbps GFSK.
Packages Includes:
1 x Bluetooth module HM-BT2201L.
There are no reviews yet.
